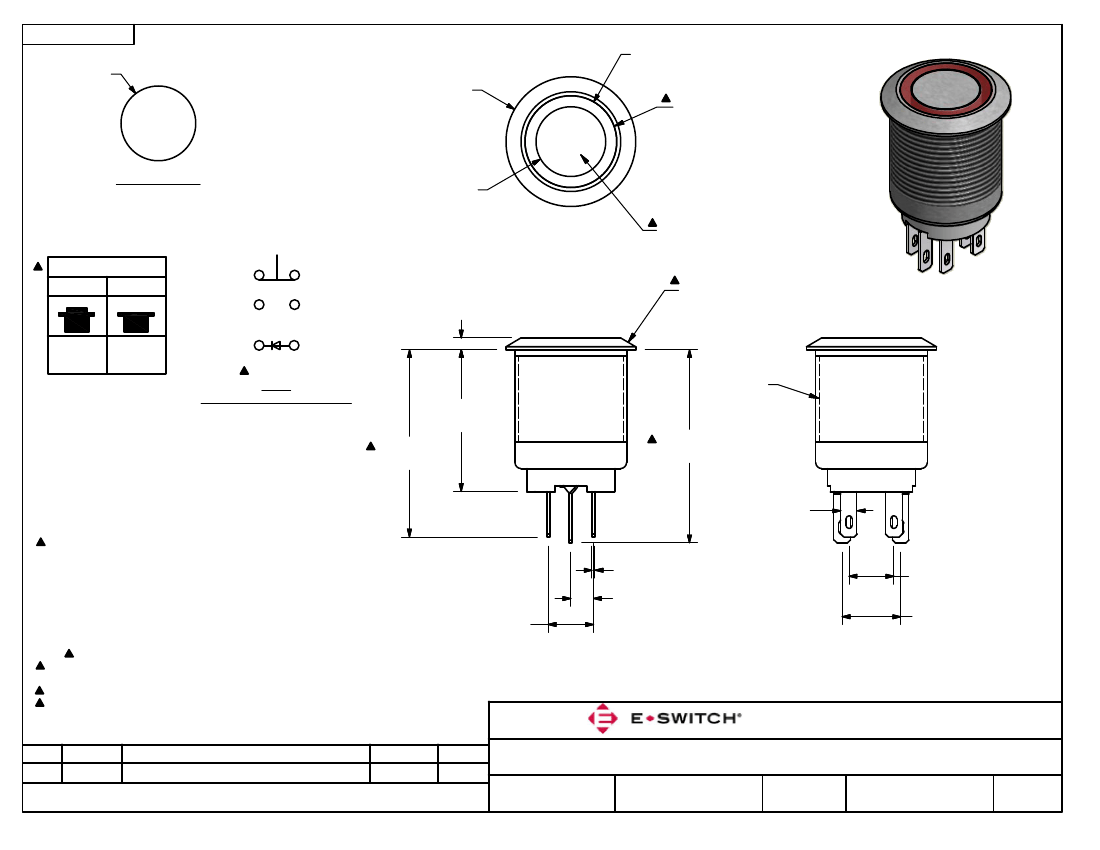

SHEET 1 OF 1
19.00
[.748 in]
15.50
[.610 in]
22.00
[.866 in]
RING ILLUMINATION: RED
PANEL CUTOUT
MAX. PANEL THICKNESS
10mm [.39]
12.00
[.472 in]
FLAT ACTUATOR:
STAINLESS STEEL
SWITCH FUNCTION
POS. 1
POS. 2
1
4
1-2 ON
3-4 OFF
1-2 (OFF)
3-4 (ON)
_
2
3
+
M19x1.0
24.00
1.00
[.945
.04
in]
31.70
1.00
[1.25
.04
in]
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X = 0.4
X.XX = 0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 24VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20 C to 55 C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 12V
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: RED
17. 2002/95/EC (ROHS) COMPLIANT.
2.00
[.08 in]
BODY: STAINLESS STEEL
( ) = MOMENTARY
RED
SPDT
CONTACT CONFIGURATION
32.70
1.00
[1.29
.04
in]
2.80
[.110 in]
4
+
1
.50
[.020 in]
3.85
[.152 in]
7.70
[.303 in]
(+)
1 3
(-)
7.60
[.299 in]
9.90
[.390 in]
B
REV
21930
PCR NO
REDRAWN IN NEW FORMAT
DESCRIPTION
7/29/15
DATE
MW
BY
TITLE
SCALE
PV4F2Y0SS-314
3:2
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
7/29/2015
DR
DWG
REV
MW
52-PV4F2Y0SS314
B
