1071-2-32-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1071-2-32-1

1071-2-32-1: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1071-2-32-1 Overview

Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle

1071-2-32-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307178626
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.091 inch
subject depth	0.1 inch
body length	0.63 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1071
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.075 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

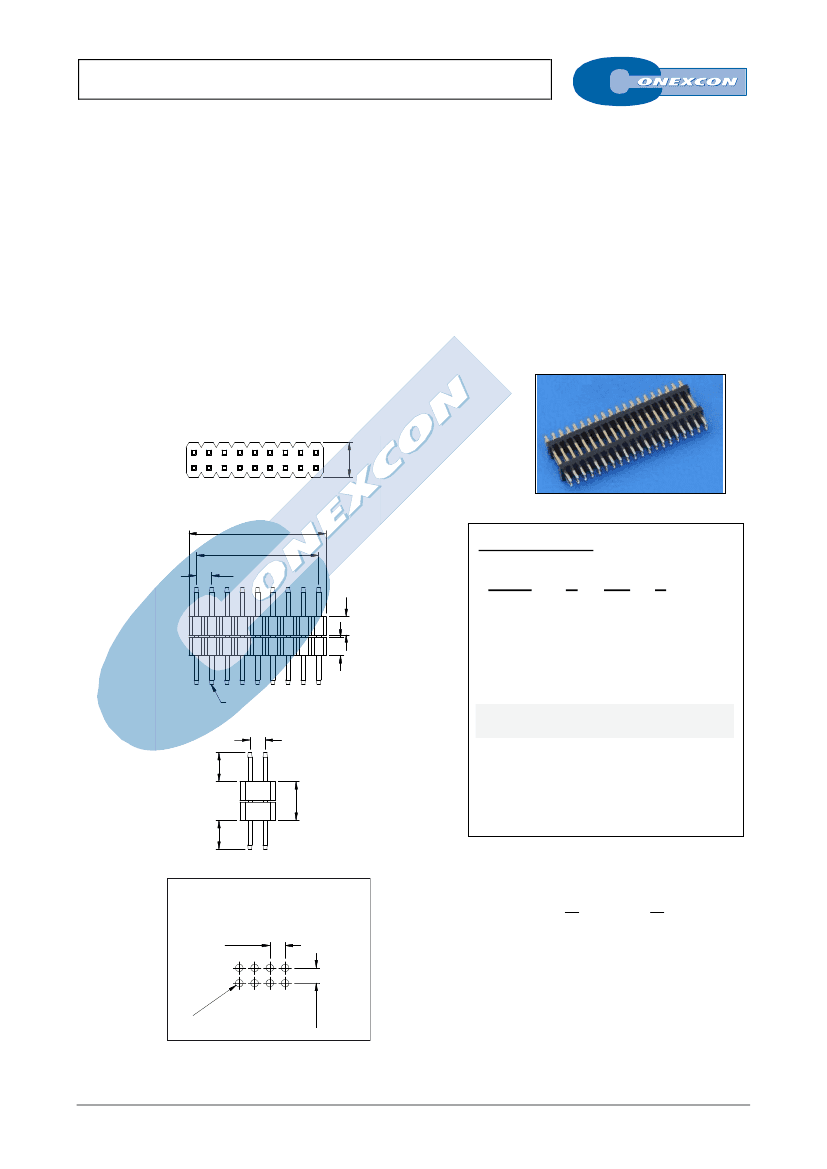

D/ ROW DUAL BODY VERTICAL PIN HEADER

1071 SERIES.

1.27 x 1.27 mm (0.050” x 0.050”) pitch.

General Features

Electrical Features



Available in 4 through 80 circuits

Mates with sockets dual row 1.00 mm pitch 1041 series

0,30 mm. square pin with different plating

Available different pin length.

Contact Sales Office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric Withstanding Voltage: 300 V AC/minute

Insulation Resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical Features

Pin retention force to insulator: > 0,10 Kgf

Durability: 50 cycles



Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS Compliant

Dimension Information

±0.25

1.20

Ordering Information:

1.00

±0.10

2.30

1071 -

T-

XX- 1

1. Connector Series

1.20

2. (T) Contact Plating

1.90

±0 .20

0.30

1.00

±0.10

2.55

±0.20



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

3. (XX) Number of circuits

Available in 04 through 80 circuits

1.90

±0.20

DIMENSIONS:

RECOMMENDED HOLE PATTERN

(Tolerance: ±0.05 mm.)

1.00





1.00















1.00









Number of circuits

00000

A-XX

1.00

ø0
