920F-214-301 datasheet, PDF - EEWORLD Datasheet

920F-214-301: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Female, Straight Bottom Mount, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

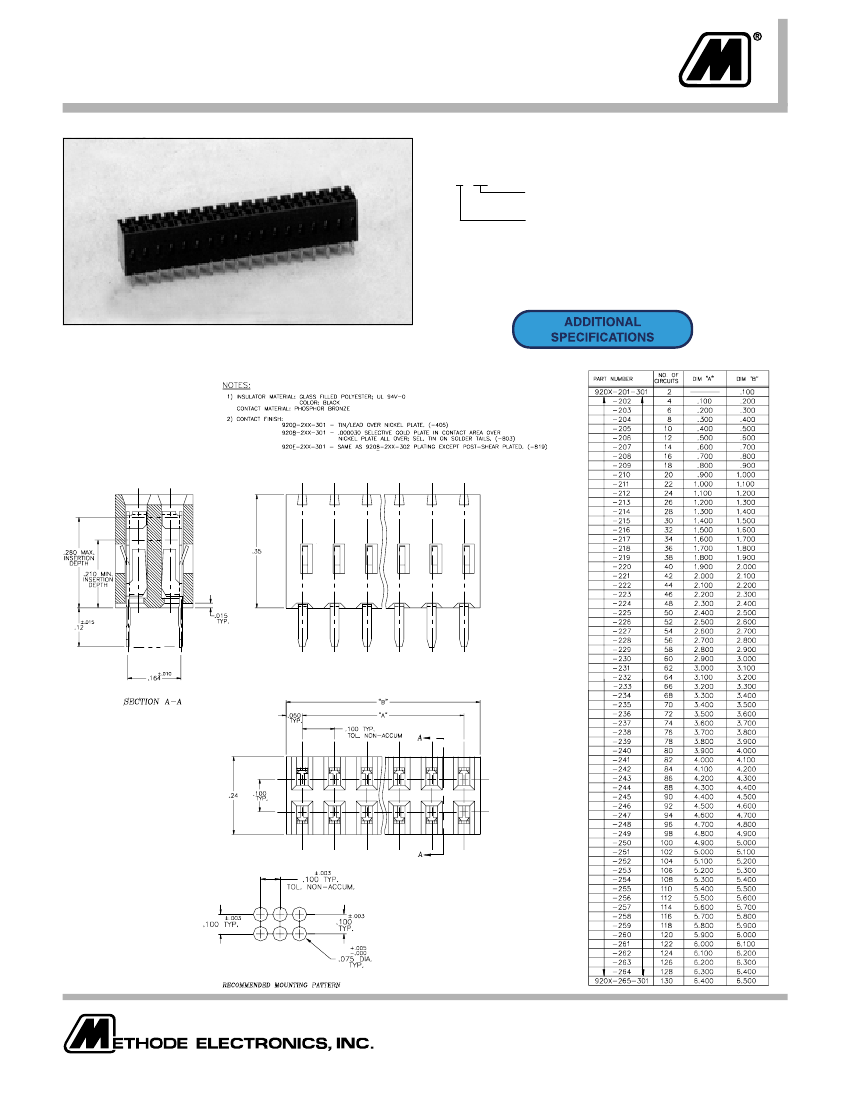

920F-214-301 Overview

Board Connector, 28 Contact(s), 2 Row(s), Female, Straight Bottom Mount, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Objectid	303413410
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POST-SHEAR PLATED
body width	0.24 inch
subject depth	0.35 inch
body length	1.4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	9000
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT BOTTOM MOUNT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
Evacuation force-minimum value	.556 N

.100” (2.54mm) Dual Row Through

Hole Bottom Entry Connectors

(Straight Tail)

9000 SERIES “POST/BOXE”

PART NUMBER LEGEND

920X-2XX-301

NUMBER OF POSITIONS PER ROW

2 - 40

CONTACT FINISH

0=TIN

8=.000030 SELECTIVE GOLD

F =.000015 SELECTIVE GOLD

MATING HEADERS: 9100 SERIES

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
