9300-629

Description
Board Connector, 58 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size101KB,1 Pages
ManufacturerMethode Electronics Inc.
Download Datasheet Parametric View All

9300-629 Overview

Board Connector, 58 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Black Insulator, Plug

9300-629 Parametric

Parameter NameAttribute value
Objectid300354141
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresWITHOUT POLARIZING KEY
body width0.2 inch
subject depth0.6 inch
body length2.9 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
contact modeRECTANGULAR
Contact resistance
Contact styleSQ PIN-SKT
maximum insertion force2.78 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number9300
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Rated current (signal)
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length
Termination typeCRIMP
Total number of contacts58
Maximum wire diameter22 AWG
Minimum wire diameter30 AWG
Evacuation force-minimum value.556 N

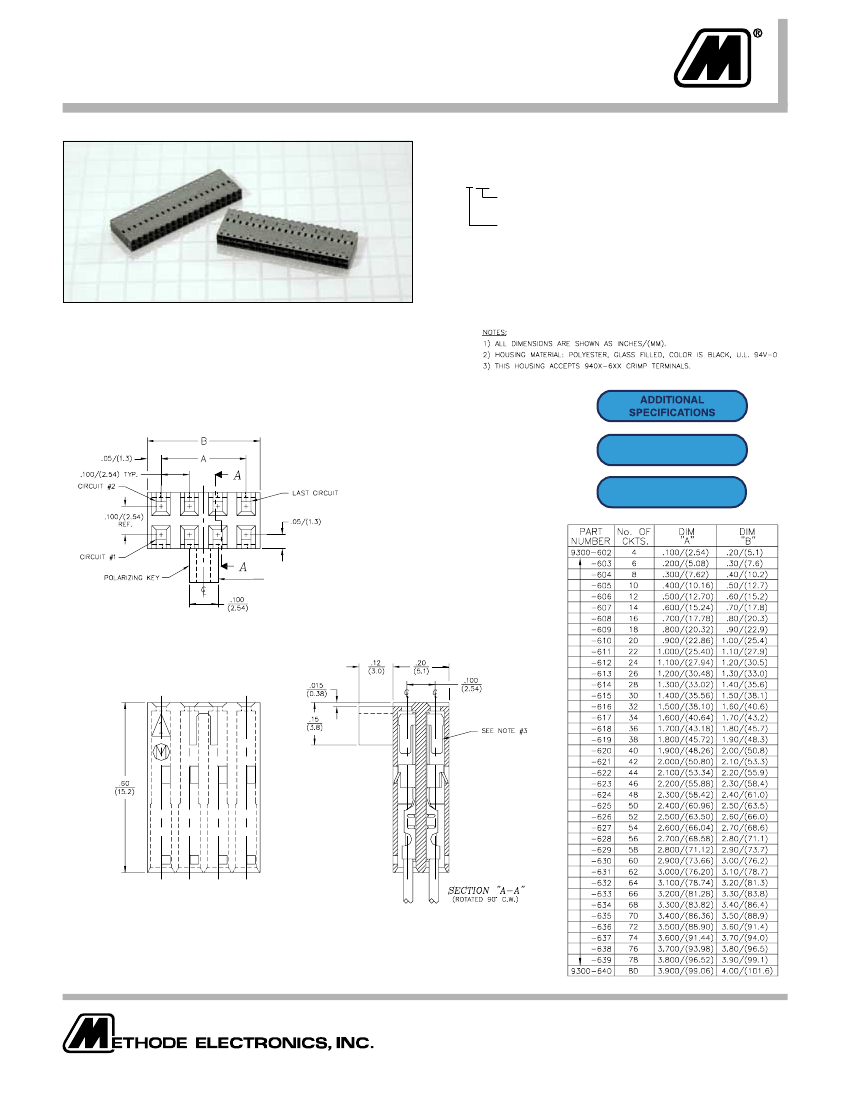

.100” (2.54 mm)
SIL Crimp Receptacles Dual Row
9000 Series “Post/Boxe”
PART NUMBER LEGEND
9300-X XX
NUMBER OF POSITIONS
(SEE TABLE I)
RECEPTACLE STYLE
6 = W/O POLARIZING KEY
7 = WITH POLARIZING KEY
Mates with 9100 Series Headers
MATING CONTACT
APPLICATION TOOLING
OPTIONAL
POLARIZING KEY
WITH WIRES CRIMPED
AND CONTACT SEATED
INTO INSULATOR
Connector Products
1700 Hicks Road • Rolling Meadows, IL 60008 USA
Telephone: 847.392.3500 • Fax: 847.392.9404
email: mcpsales@methode.com • Web Page: www.methode.com
