52-PV3F2B0SS311: DescriptionHARDWARE SUPPLIED: O-RING AND HEXNUT; File Size149KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV3F2B0SS311 Overview

HARDWARE SUPPLIED: O-RING AND HEXNUT

Preview

Download Datasheet

View All

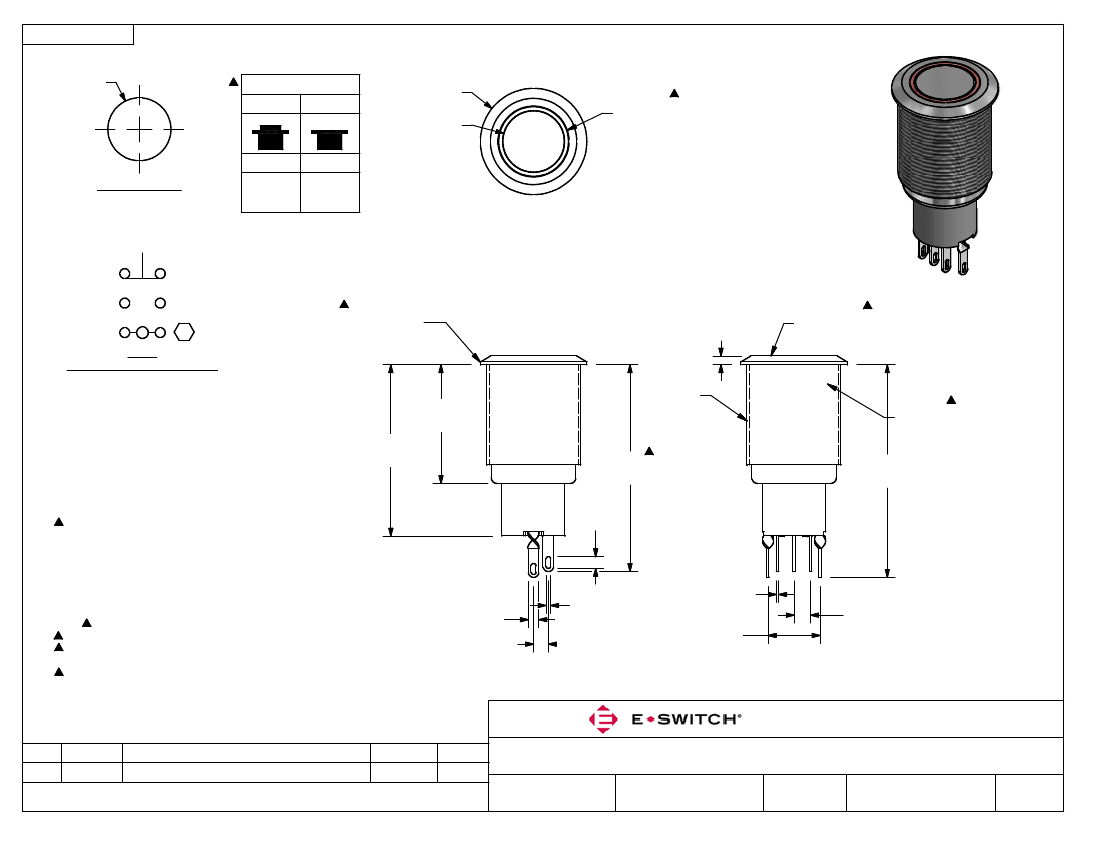

SHEET 1 OF 1

16.00

18.00

[.709 in]

10.40

[.630 in]

SWITCH FUNCTION

POS. 1

POS. 2

RING ILLUMINATION

COLOR: RED

[.409 in]

PANEL CUTOUT

MAX. PANEL THICKNESS

14.0mm [.551]

1-3

(ON)

1-2

(ON) = MOMENTARY

BODY FINISH

POLISHED STAINLESS STEEL

1.50

[.059 in]

ACTUATOR FINISH

POLISHED STAINLESS STEEL

SPDT

CONTACT CONFIGURATION

M16x1.0

20.10

1.00

[.791

.039

in]

29.00

1.00

[1.142

.039

in]

NOTE 14

HARDWARE SUPPLIED

35.00

1.00

[1.378

.039

in]

2.00

[.079 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 2A 48VDC

6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 M MIN.

8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC

10. OPERATING TEMP.: -20°C to 55°C

11. DENOTES CRITICAL PARAMETER.

12. LAMP VOLTAGE: 20mA 1.8V

13. ILLUMINATION COLOR: RED

14. HARDWARE SUPPLIED: O-RING AND HEXNUT

15. INGRESS RATING: IP40

16. 2002/95/EC (ROHS) COMPLIANT

36.00

1.00

[1.417

.039

in]

(-)

.80

[.031 in]

2.50

[.098 in]

.40

[.016 in]

8.80

[.346 in]

(-)

(+)

1.80

[.071 in]

2.80

[.110 in]

REV

20536

PCR NO

NEW RELEASE

DESCRIPTION

3/19/2012

DATE

TITLE

SCALE

PV3F2B0SS-311

1.5:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

1/17/2012

BMA

DWG

52-PV3F2B0SS311

REV
