SURFACE MOUNT TRIMMER CAPACITORS
SMD hermetic ceramic trimmers
SMD HERMETIC CERAMIC TRIMMERS CAPACITORS
Description

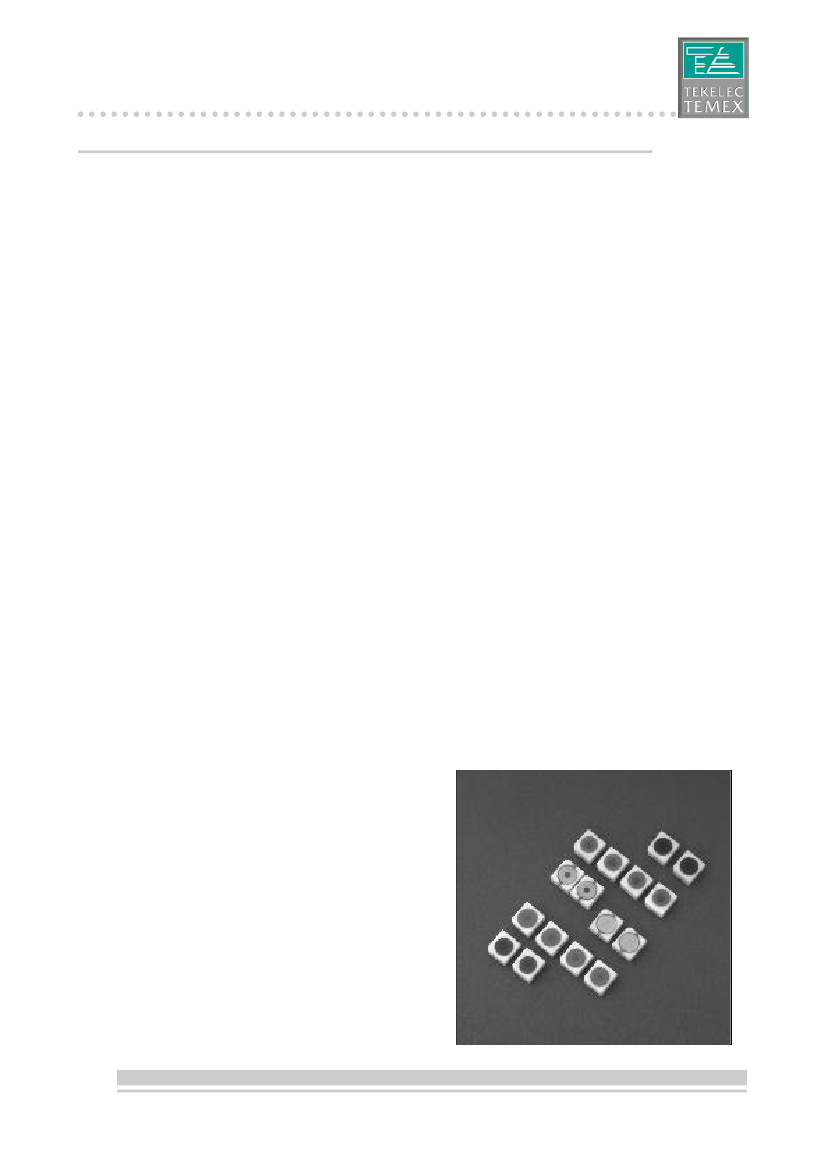

SMD hermetic ceramic trimmer
is a high performance surface mount trimmer capacitor. Designed
specifically to withstand harsh environments, SMD hermetic ceramic trimmer delivers exceptional
performance through microwave frequencies at operating temperatures of -55° C to +125° C.
•
SMD hermetic ceramic trimmer
rugged construction renders it resistant to penetration of solder
fluxes and cleaning solvents.
•
SMD hermetic ceramic trimmer
square drive tuning mechanism provides and assures complete
compatibility with automated tuning devices for positive non-slip tamper-proof adjustments.
•
SMD hermetic ceramic trimmer
design makes it possible to utilize tape and reel or cartridge placement.
The alumina housing provides mechanical strength with outstanding electrical and heat resistant
properties.
Recommended handling instructions outlining soldering procedures are available upon request.
Features
•
•
•
•
•
Working voltage 250 VDC, test 500 VDC
Resistance to soldering heat and flux, 235° C for 30 s
Can withstand up to 5 minutes total immersion in typical cleaning solvents at room temperature
Solderability and moisture resistance meet MIL-STD-202
Conform with specification MIL-C-81
Applications
•
•
•
•
VCOS - Microprocessors
Filter networks - Crystal trimming
Avionics equipments - Disc drives
Impedance matching - Telemetry
SALES OFFICES
WEB SITE: http://www.tekelec-temex.com
/
ASIA PACIFIC: +852 2813 9826
GERMANY: +49 (0) 895164-0
ITALY: +39 (0) 2 58 01 91 06
/
EUROPE: +33 (0) 1 49884900
/
AFRICA: +33 (0) 1 49884900
NL: +31 (0) 793461430
UK: +44 (0) 1256 883340
10-6
AMERICA: +1 (602) 780 1995
BELGIUM: +32 (0) 2 7159020
FRANCE: +33 (0) 01 49884900
NORDIC: +46 (0) 8 590 303 00
SPAIN: +34 (0) 1 3204160
SURFACE MOUNT TRIMMER CAPACITORS
SMD hermetic ceramic trimmers
Characteristics
Capacitance range
Voltage
Q at 100 MHz
Operating temp.
Temp. coeff.
Torque
Insulation resistance
Vibration
Shock

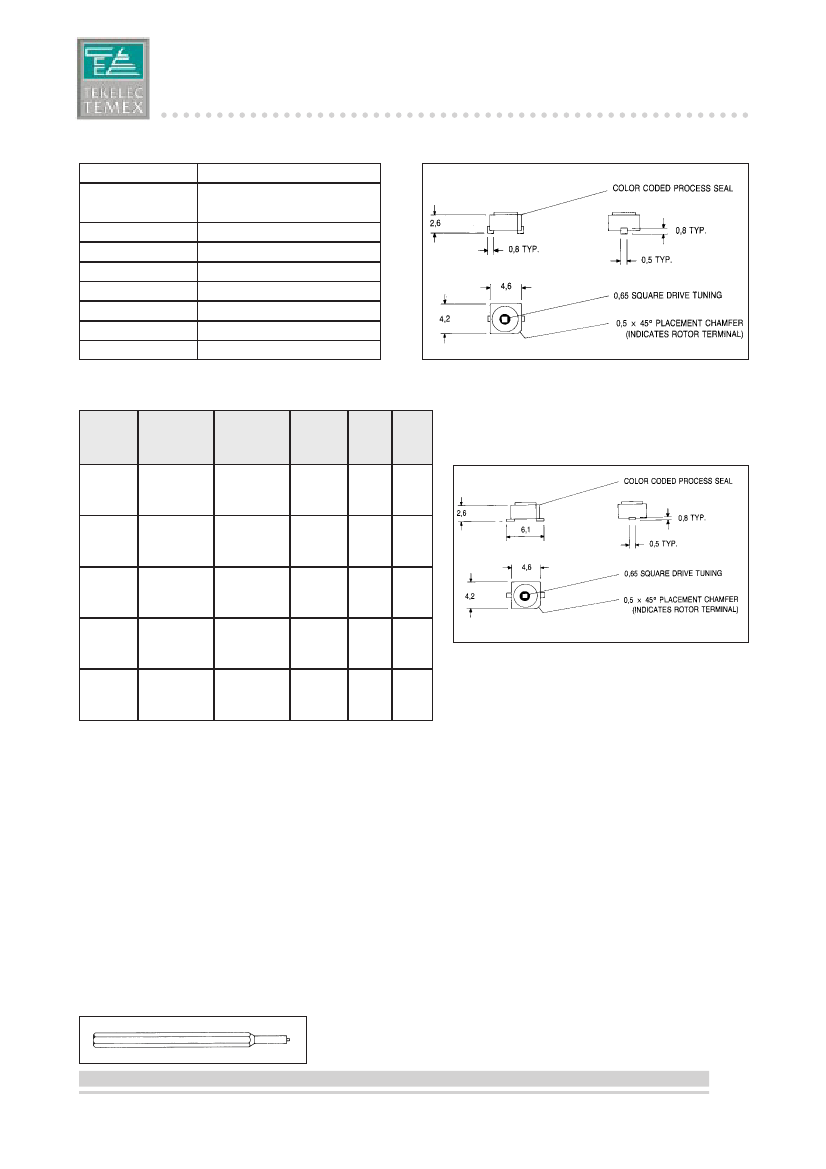

Technical data
Tekelec
Part N°
AT2320-0
Capacitance Temperature Min Q
Torque Color
range
coefficient
at
g.cm Code
(pF)
(ppM/°C) 100 MHz
0.6 - 2.5
100 ± 200
3000
4 - 70
Red
See table
Rated 250 VDC
Test 500 VDC
See table
-55° C to +125° C
See table
See table
> 10
4
MΩ at 500 VDC
15 g 10-2000 Hz
100 g 6 ms
SL (Strip-Line)
AT2320-1
1-5
100 ± 200
1000
4 - 70 Black
AT2320-2
2.5 - 10
100 ± 200
1000
4 - 70
Blue
AT2320-3
5 - 18
- 450 ± 300
500
4 - 70 Green
AT2320-4
6.5 - 25
- 1100 ± 300
300
4 - 70 Amber
Packaging
•
TAPE AND REEL:
TEKELEC tape and reel packaging is in accordance with EIA-481 specification in
12 mm width carrier tape in quantities of 500 on 18 cm reel & 2500 on 33 cm reel
TEKELEC standard bulk packaging in quantities of 200 in a sealed antistatic plastic
bag with dessicant
•
BULK:
How to order
•
Standard
•
Strip line add SL after TEKELEC P/ Nb
•
For tape and reel, add code after TEKELEC P/ Nb:
ex: AT2320-2
ex: AT2320-2 SL
R1 for 18 cm diameter reel,
and R2 for 33 cm diameter reel
TEKELEC Tuning Tool :AT4192
