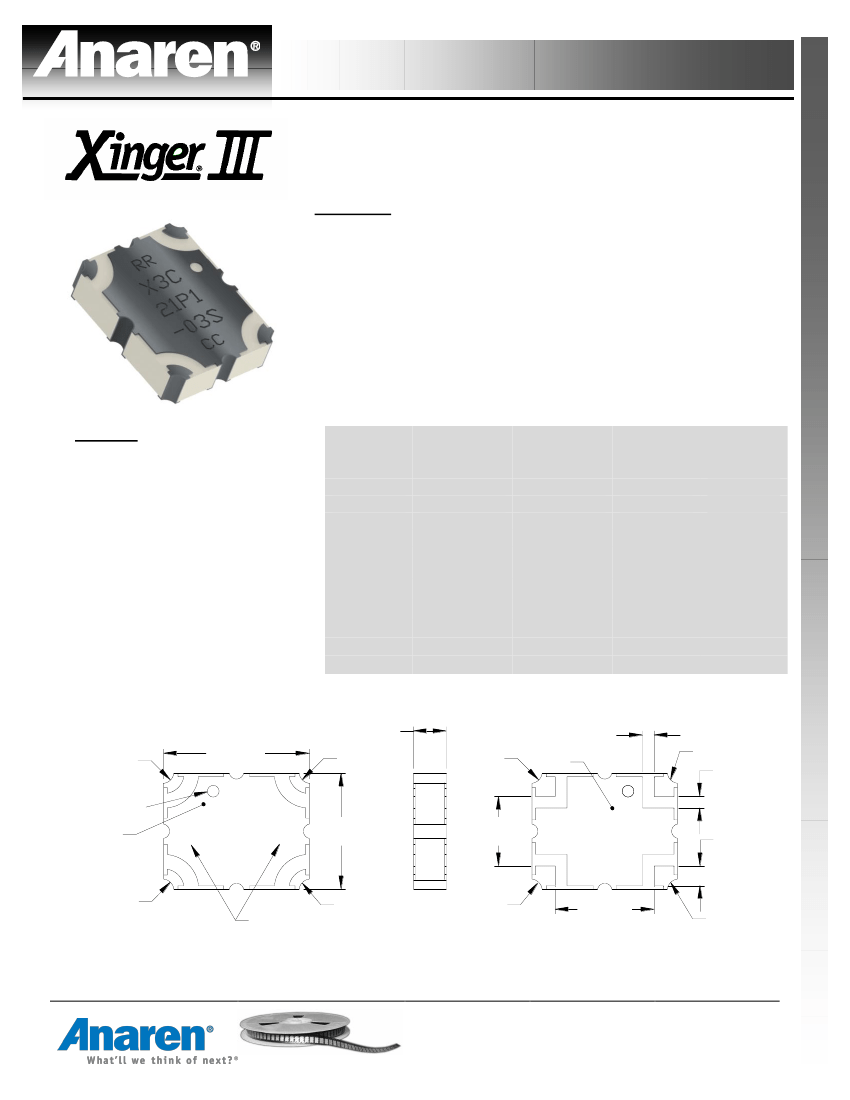

Model X3C21P1-03S
Rev D
PRELIMINARY
Hybrid Coupler
3 dB, 90
Description
The X3C21P1-03S is a low profile, high performance 3dB hybrid coupler in a
new easy to use, manufacturing friendly surface mount package. It is
designed for LTE and WIMAX band applications. The X3C21P1-03S is
designed particularly for balanced power and low noise amplifiers, plus
signal distribution and other applications where low insertion loss and tight
amplitude and phase balance is required. It can be used in high power
applications up to 110 watts.
Parts have been subjected to rigorous qualification testing and they are
manufactured using materials with coefficients of thermal expansion (CTE)
compatible with common substrates such as FR4, G-10, RF-35, RO4003
and polyimide. Produced with 6 of 6 RoHS compliant tin immersion finish.
Electrical Specifications
**
Insertion
Amplitude
Frequency
Isolation
VSWR
Loss
Balance
MHz
dB Min
dB Max
Max : 1
dB Max
Features:
1800-2300 MHz
LTE, WIMAX
High Power
Very Low Loss
Tight Amplitude Balance
High Isolation
Production Friendly
Tape and Reel
Lead-Free
2000-2300
2110-2170
2300-2400
1800-2200
Phase
Degrees
23
25
18
23
Power
Avg. CW Watts
0.22
0.12
0.25
0.17
JC
ºC/Watt
1.15
1.12
1.33
1.17
Operating
Temp.
ºC
±0.22
±0.10
±0.40
±0.22
90
±4.0
90
±2.0
90
±4.0
90
±3.0
90
110
90
90
32.1
32.1
32.1
32.1
-55 to +95
-55 to +95
-55 to +95
-55 to +95
**Specification based on performance of unit properly installed on Anaren Test Board 54147-0001 with small
signal applied. Specifications subject to change without notice. Refer to parameter definitions for details.
Mechanical Outline
.250
±.010
[6.35
±0.25
]
.057
±.006
[1.44
±0.14
]
Pin 2
Pin 2
.020
±.004
[0.51
±0.10
]
Gnd
Pin 1
.020
±.004
[0.51
±0.10
]
Pin 1
Orientation Mark
Denotes Pin 1
X3C
21P1
-03S
RR
CC
Gnd
.200
±.010
[5.08
±0.25
]
.120
±.004
[3.05
±0.10
]
4x .034
±.004
Sq
[0.86
±0.10
]
Pin 4
Pin 3
Denotes Array Row (RR)
& Column (CC)
Dimensions are in Inches [Millimeters]
X3C21P1-03SS Mechanical Outline
Pin 3
.170
±.004
[4.32
±0.10
]
Pin 4
Tolerances are Non-Cumulative
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model X3C21P1-03S
Rev D

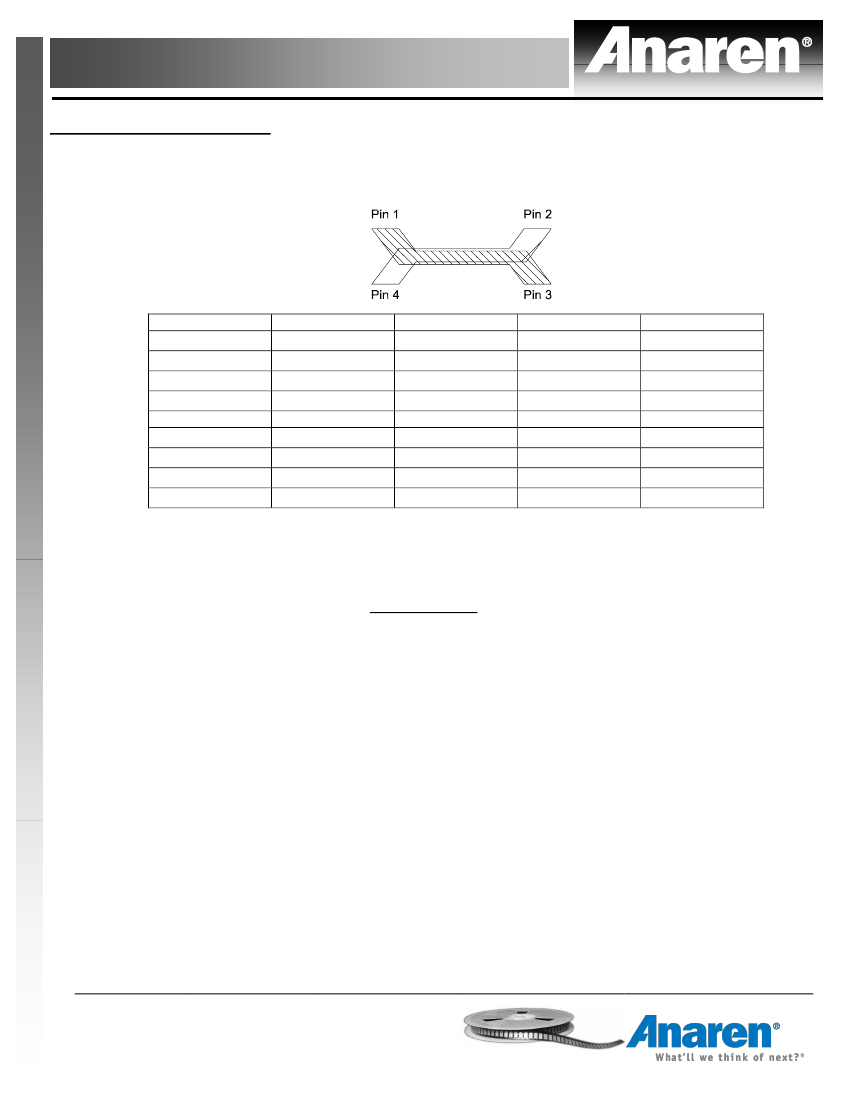

Hybrid Coupler Pin Configuration
The X3C21P1-03S has an orientation marker to denote Pin 1. Once port one has been identified the other ports are
known automatically. Please see the chart below for clarification:
Configuration
Splitter
Splitter
Splitter
*Combiner
*Combiner
*Combiner
*Combiner
Pin 1
Input
Isolated
-3dB
90
-3dB
A
90
A
Isolated
Output
Pin 2
Isolated
Input
-3dB
-3dB
90
A
-3dB
90
-3dB
Input
Isolated
Isolated
Output
A
90
A
Pin 3
Pin 4
-3dB
-3dB
90
Isolated
Input
Output
Isolated
A
A
A
90
Output
Isolated
90
*Notes: “A” is the amplitude of the applied signals. When two quadrature signals with equal amplitudes are
applied to the coupler as described in the table, they will combine at the output port. If the amplitudes are
not equal, some of the applied energy will be directed to the isolated port.
The actual phase,
, or amplitude at a given frequency for all ports, can be seen in our de-embedded s-
parameters, that can be downloaded at www.anaren.com.
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
`
Model X3C21P1-03S
Rev D
PRELIMINARY

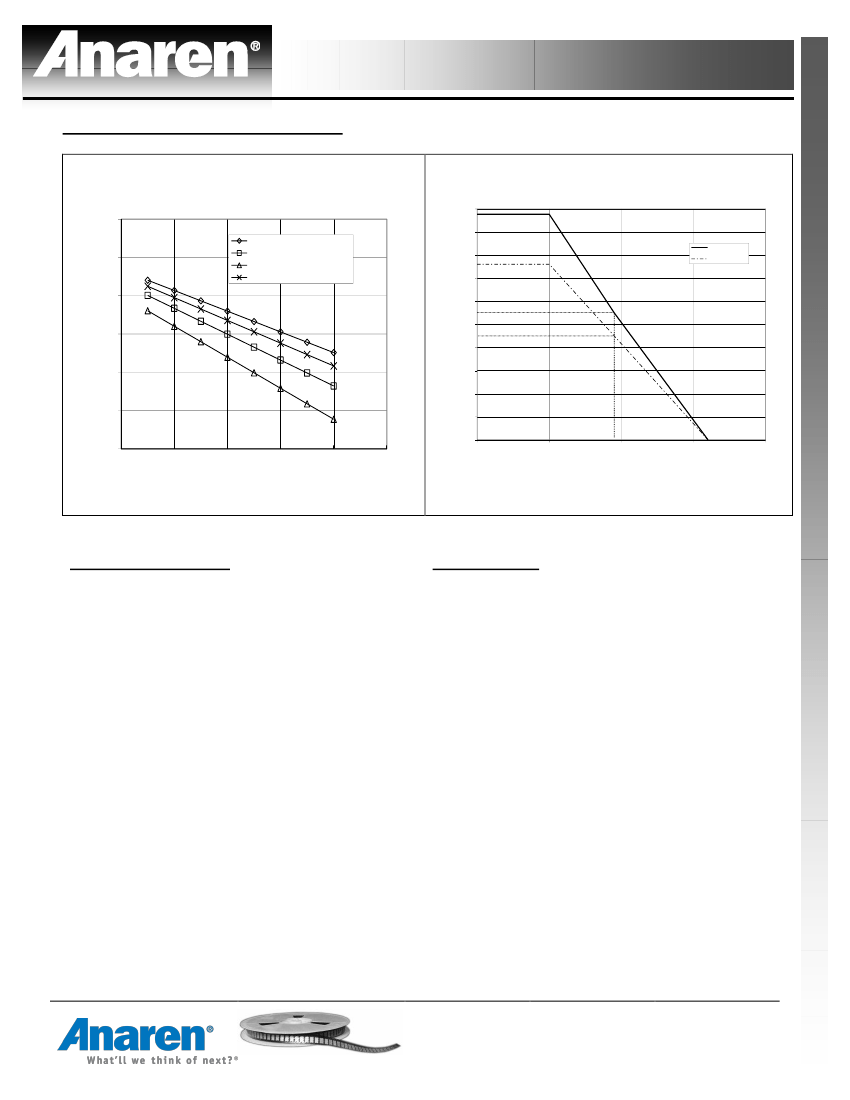

Insertion Loss and Power Derating Curves
X3C21P1-03 Power Derating Curve
Typical Insertion Loss Derating Curve for X3C21P1-03
0
180
typical insertion loss (f=2170Mhz)
typical insertion loss (f=2300Mhz)
typical insertion loss (f=2200Mhz)
Total Input Power (Watts)
200
-0.05
Insertion Loss (dB)
160
140
120
110
100
90
80
60
40
typical insertion loss (f=2400Mhz)
2110 - 2170Mhz
2000 - 2400Mhz
-0.1
-0.15
-0.2
-0.25
20
0
-0.3
-100
0
50
95 100
150
200
0
100
200
o
300
400
Temperature of the Part ( C)
Mounting Interface Temperature (
o
C)
Insertion Loss Derating:
The insertion loss, at a given frequency, of a group of
couplers is measured at 25C and then averaged. The
measurements are performed under small signal
conditions (i.e. using a Vector Network Analyzer). The
process is repeated at 85C, 150C, and 200C. A best-
fit line for the measured data is computed and then
plotted from -55C to 300C.
Power Derating:
The power handling and corresponding power derating
plots are a function of the thermal resistance, mounting
surface temperature (base plate temperature),
maximum continuous operating temperature of the
coupler, and the thermal insertion loss. The thermal
insertion loss is defined in the Power Handling section of
the data sheet.
As the mounting interface temperature approaches the
maximum continuous operating temperature, the power
handling decreases to zero.
If mounting temperature is greater than 95C, Xinger
coupler will perform reliably as long as the input power
is derated to the curve above.
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model X3C21P1-03S
Rev D

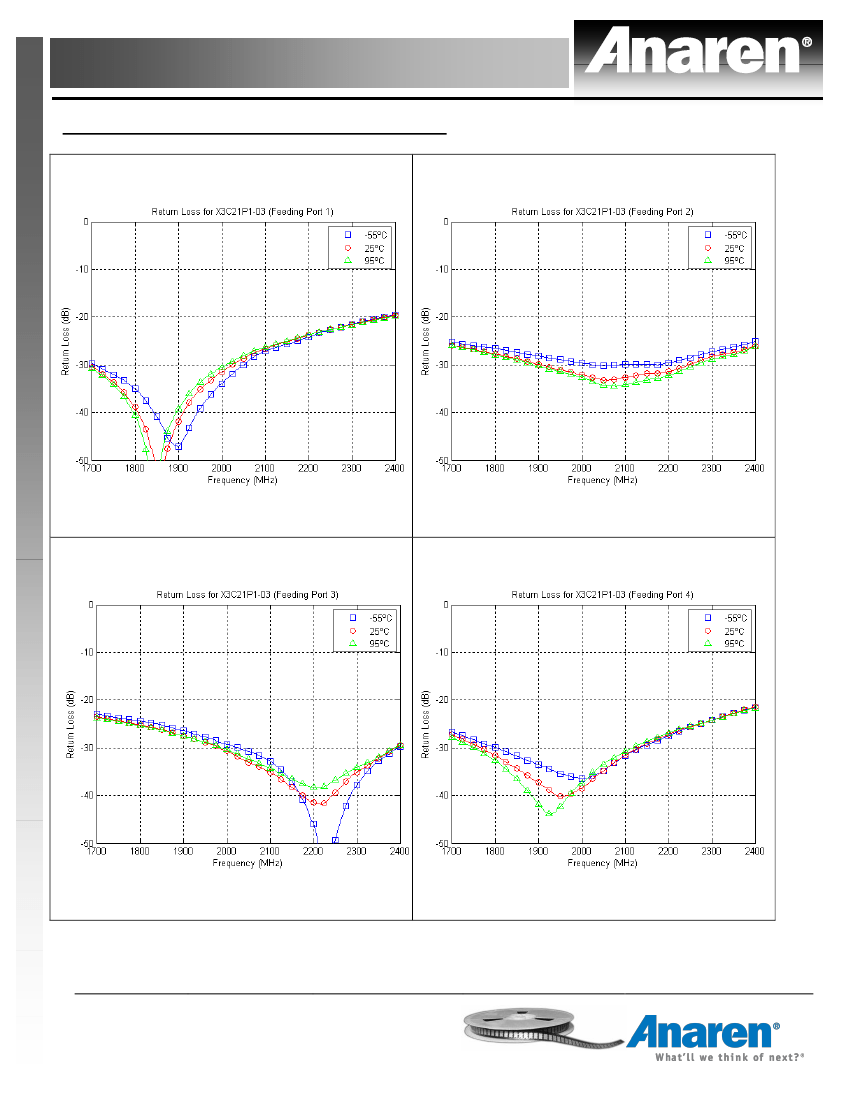

Typical Performance (-55°C, 25°C & 95°C): 1700-2400 MHz
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
`
Model X3C21P1-03S
Rev D
PRELIMINARY

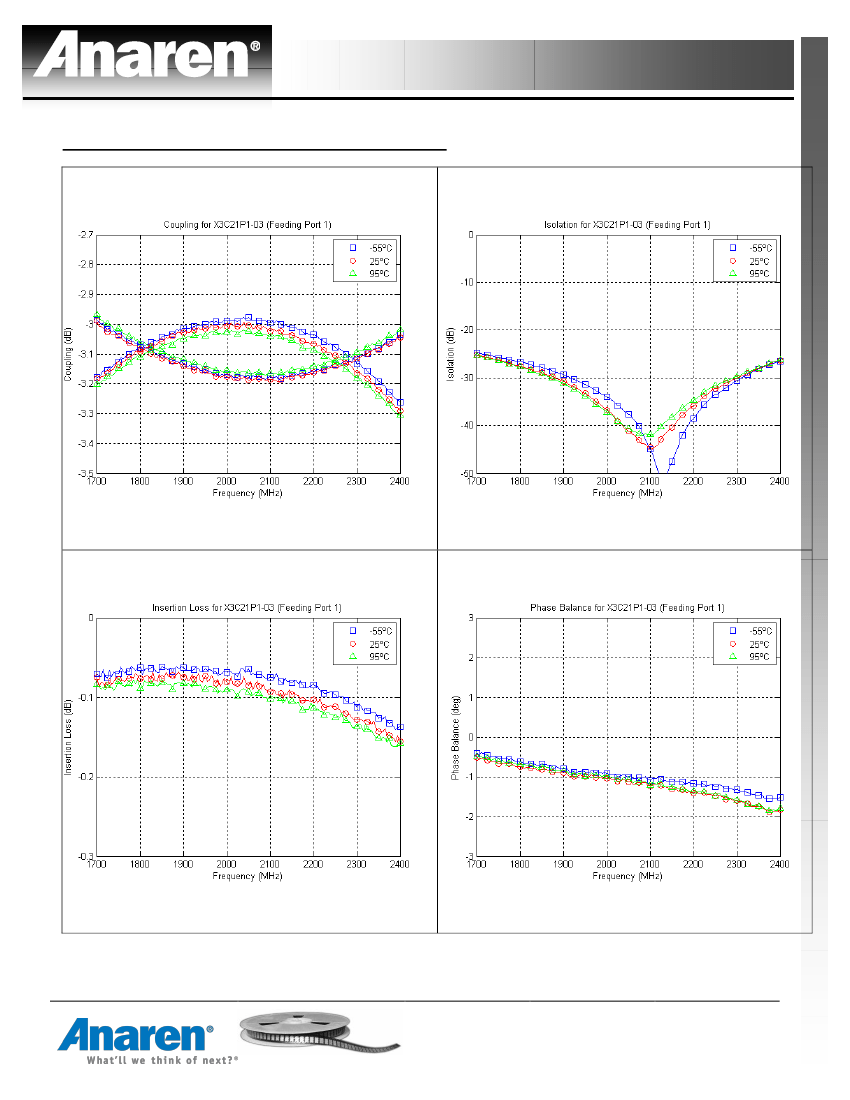

Typical Performance (-55°C, 25°C & 95°C): 1700-2400 MHz
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 411-6596
+44 2392-232392
