1008 CHIP INDUCTORS
Chip Inductors for Critical Applications
ST413RAE
These chip inductors have been designed especially for
high frequency applications. Their ceramic construction
delivers the highest possible SRF and excellent Q values.
Part
ST413RAE100JLZ
ST413RAE120JLZ
ST413RAE150JLZ
ST413RAE180JLZ
ST413RAE220JLZ
ST413RAE270_LZ
ST413RAE330_LZ
ST413RAE390_LZ
ST413RAE470_LZ
ST413RAE560_LZ
ST413RAE680_LZ
ST413RAE820_LZ
ST413RAE101_LZ
ST413RAE121_LZ
ST413RAE151_LZ
ST413RAE181_LZ
ST413RAE221_LZ
ST413RAE271_LZ
ST413RAE331_LZ
ST413RAE391_LZ
ST413RAE471_LZ
ST413RAE561_LZ
ST413RAE621_LZ
ST413RAE681_LZ
ST413RAE751_LZ
ST413RAE821_LZ
ST413RAE911_LZ
ST413RAE102_LZ
number
1
Inductance
2
(nH)
10 @ 50 MHz
12 @ 50 MHz
15 @ 50 MHz
18 @ 50 MHz
22 @ 50 MHz
27 @ 50 MHz
33 @ 50 MHz
39 @ 50 MHz
47 @ 50 MHz
56 @ 50 MHz
68 @ 50 MHz
82 @ 50 MHz
100 @ 25 MHz
120 @ 25 MHz
150 @ 25 MHz
180 @ 25 MHz
220 @ 25 MHz
270 @ 25 MHz
330 @ 25 MHz
390 @ 25 MHz
470 @ 25 MHz
560 @ 25 MHz
620 @ 25 MHz
680 @ 25 MHz
750 @ 25 MHz
820 @ 25 MHz
910 @ 25 MHz
1000 @ 25 MHz
Percent
tolerance
5
5
5
5
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
The non-magnetic coilform also ensures the utmost in
thermal stability, predictability and batch consistency.
Q
50 @ 500 MHz
50 @ 500 MHz
50 @ 500 MHz
50 @ 350 MHz
55 @ 350 MHz
55 @ 350 MHz
60 @ 350 MHz
60 @ 350 MHz
65 @ 350 MHz
65 @ 350 MHz
65 @ 350 MHz
60 @ 350 MHz
60 @ 350 MHz
60 @ 350 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
45 @ 100 MHz
35 @ 50 MHz
35 @ 50 MHz
Core material
Ceramic
min
3
SRF min
4
(MHz)
3000
3000
3000
2500
2000
1500
1500
1500
1350
1150
1050
950
950
900
850
700
600
550
500
465
425
415
375
340
330
325
305
290
DCR max
5
(Ohms)
0.08
0.09
0.14
0.11
0.12
0.13
0.14
0.15
0.16
0.18
0.20
0.22
0.56
0.63
0.70
0.77
0.84
0.91
1.05
1.12
1.19
1.33
1.40
1.47
1.54
1.61
1.68
1.75
Imax
(mA)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
650
650
580
620
500
500
450
470
470
400
300
400
360
400
380
370
1. When ordering, specify
tolerance, termination
and
testing
codes:
Tolerance:
ST413RAE102JLZ
F
= 1%
G
= 2%
J
= 5%
Terminations
Silver-palladium-platinum-glass frit. Other termina-
tions available at additional cost.
Ambient temperature
–40°C to +125°C with
Imax
current
Maximum part temperature
+140°C (ambient + temp rise).
Storage temperature
Component: –55°C to +140°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging
2000 per 7″ reel Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.8 mm pocket depth
Termination: L
= Silver-palladium-platinum glass frit.
Special order:
S
= Tin-lead (63/37) over silver-platinum-glass frit.
T
= Tin-silver-copper (95.5/4/0.5) over silver-platinum-
glass frit.
Testing:
Z
= Unscreened
H
= Group A screening per Coilcraft CP-SA-10001
All screening performed to the document’s latest revision
Custom screening also available
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP
4286A impedance analyzer with Coilcraft-provided correlation pieces.
3. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test
fixture.
4. SRF measured using an Agilent/HP 8753D network analyzer and a
Coilcraft SMD-D test fixture.
5. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF840 test fixture.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
Document ST160-1 Revised 02/18/21
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2021

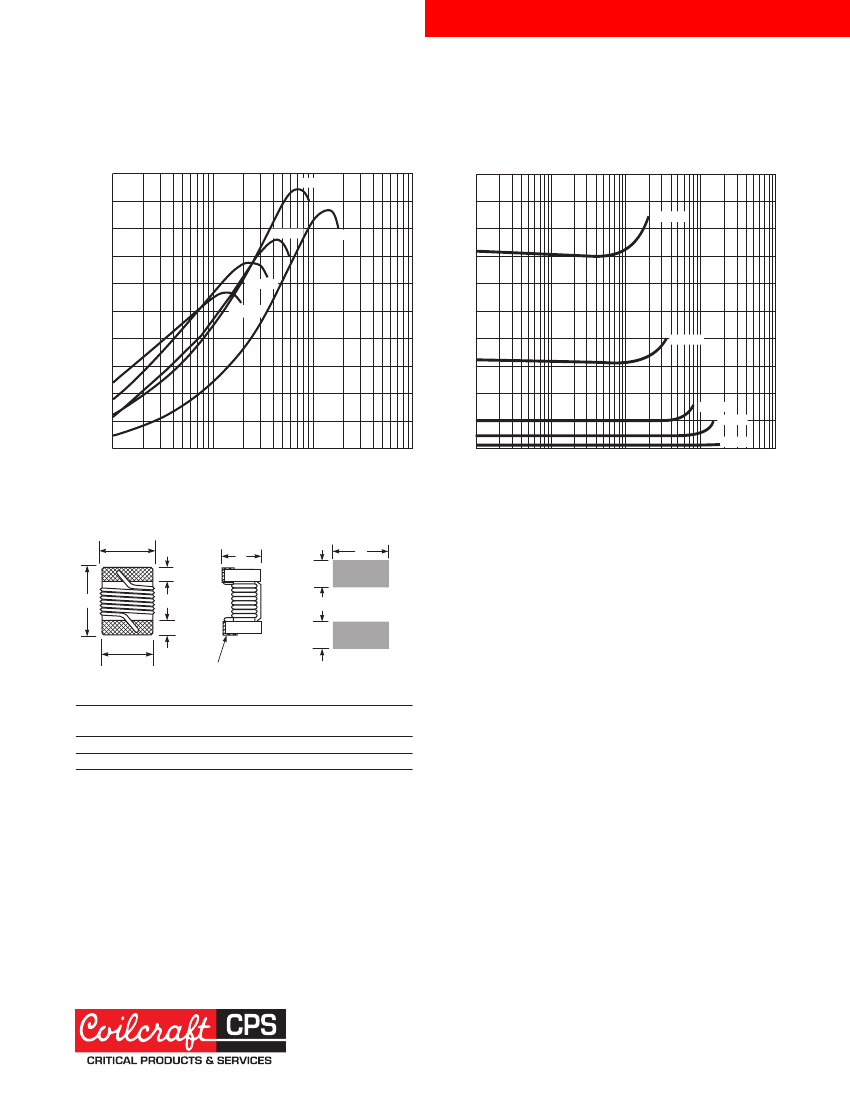

1008 CHIP INDUCTORS
ST413RAE Series (1008)
Typical Q vs Frequency
100
90
80
70
60
50
40
30
20
10
0
10
100
1000
10000
330 nH
750 nH
100 nH
12 nH
Typical L vs Frequency
47 nH
1000
900
750 nH
800
700
Inductance (nH)
Q factor
600
500
400
300
200
100
0
1
100 nH
47 nH
12 nH
10
100
1000
10000
330 nH
Frequency (MHz)
Frequency (MHz)
B
overall
F
A
G
F
E
terminal
C
I
J
I
Terminal wraparound:
approx 0.015/0,38 both ends
H
Recommended
Suggested
Land Pattern
Land Pattern
H
2,54
I
1,02
J
1,27 mm
A
max
0.105
2,67
B
max
0.095
2,41
C
max
0.070
1,78
E
0.080
2,03
F
0.020
0,51
G
1,52
0.060 0.100
0.040 0.050 inches
Note: Dimensions are before optional solder application. For maximum
overall dimensions including solder, add 0.0025 in / 0,064 mm to
B
and 0.006 in / 0,15 mm to
A
and
C.
®
Document ST160-2 Revised 02/18/21
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2021
