B82144F1824J009 datasheet, PDF

B82144F1824J009: DescriptionGENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size754KB，8 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric View All

B82144F1824J009 Overview

GENERAL PURPOSE INDUCTOR

Parameter Name	Attribute value
Objectid	1242166421
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Tubular
core material	FERRITE
DC Resistance	3.7 Ω
Nominal inductance(L)	820 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.8 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

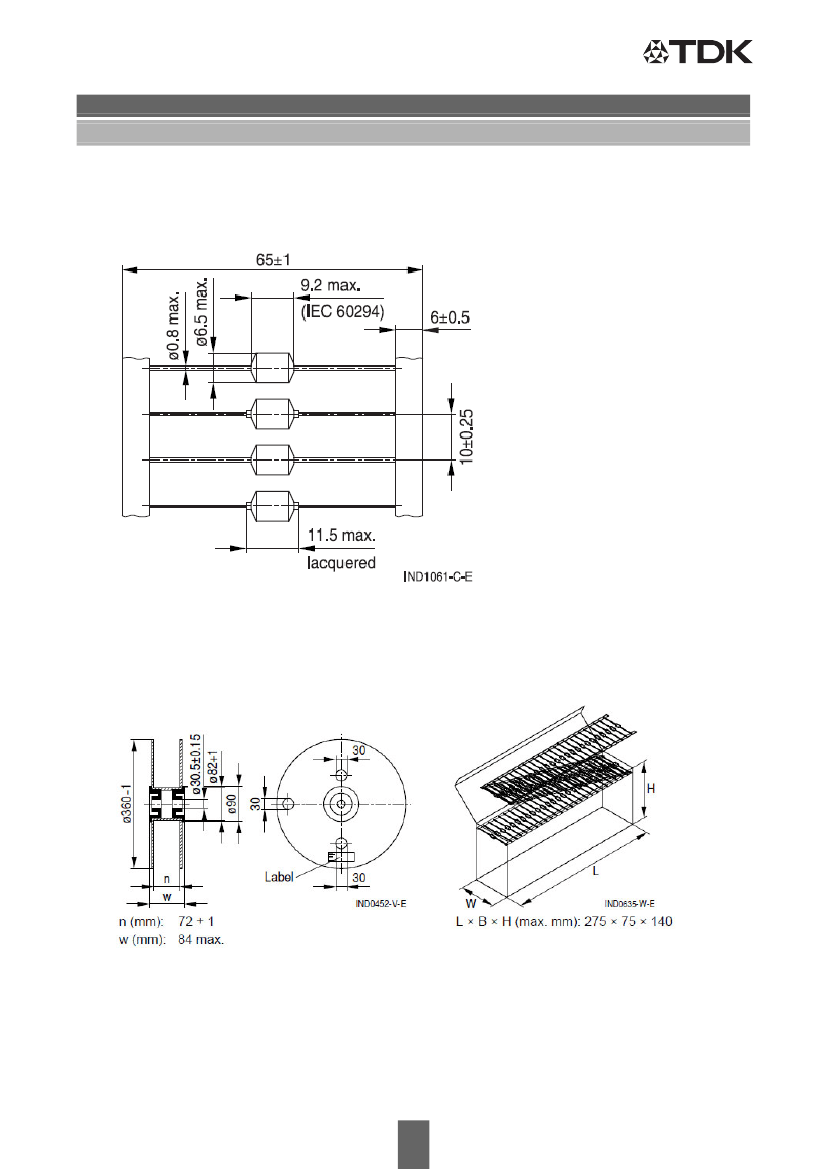

Package diameter	6.5 mm
Package length	9.2 mm
Package form	Axial
method of packing	Ammo Pack
Minimum quality factor (at nominal inductance)	20
Maximum rated current	0.31 A
self resonant frequency	2.4 MHz
Shape/Size Description	TUBULAR PACKAGE
shield	NO
special characteristics	Q IS MEASURED AT: 0.796MHZ
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	5%

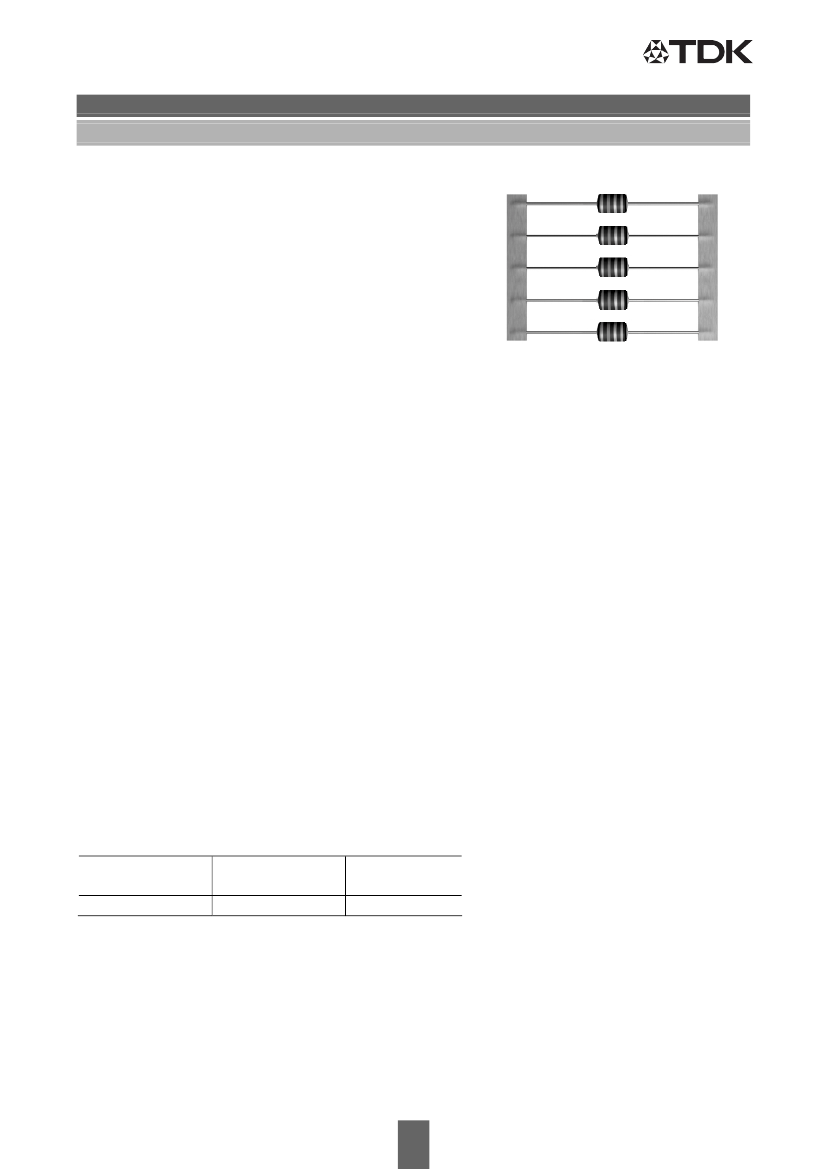

Inductors

RF chokes, LBC series

Series/Type:

Date:

B82144F

June 2012



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.
