NIN-SK6N6GTR1280F datasheet, PDF

Datasheet> All Categories > Passive components> inductor> NIN-SK6N6GTR1280F

NIN-SK6N6GTR1280F: DescriptionGENERAL PURPOSE INDUCTOR,; CategoryPassive components inductor; File Size360KB，6 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

NIN-SK6N6GTR1280F Overview

GENERAL PURPOSE INDUCTOR,

NIN-SK6N6GTR1280F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7104123089
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0402
structure	Rectangular
core material	Wirewound
DC Resistance	0.078 Ω
Nominal inductance(L)	0.0066 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.6 mm
Package length	1.1 mm
Package form	SMT
Package width	0.6 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	30
Maximum rated current	1.28 A
self resonant frequency	7000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q IS MEASURED AT 250 MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	2%

Preview

Download Datasheet

View All

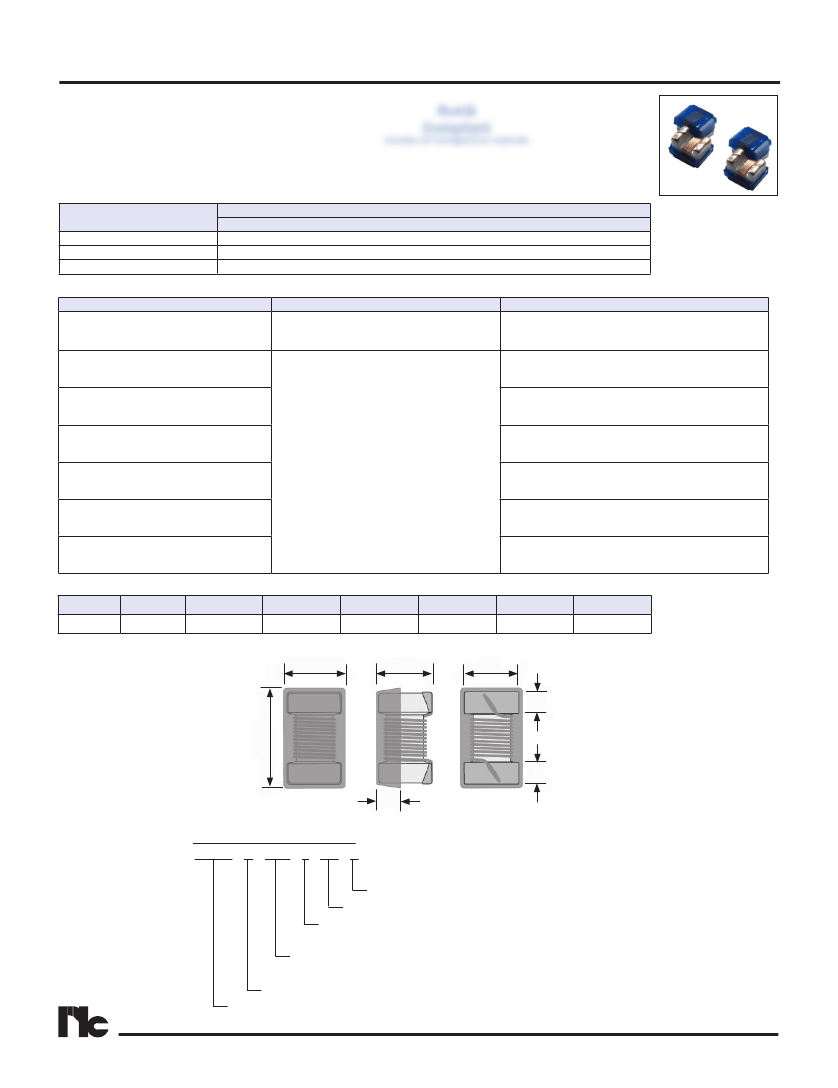

Wirewound Chip Inductors

FEATURES

•

CERAMIC BODY, WIRE WOUND CHIP INDUCTOR

includes all homogeneous materials

SIZES K (0402)

HIGH CURRENT AND LOW DCR

*See Part Number System for Details

REFLOW SOLDERING APPLICABLE

TAPE & REEL PACKAGING FOR AUTOMATIC PICK-PLACE

Specifications

NIN-S Series

RoHS

Compliant

Case Size Code

0402 (K)

Inductance Range

1.3nH ~ 75nH

Inductance Tolerance

±0.1nH (B), ±0.2nH (C), ±0.3nH (S), ±0.5nH (D), ±2% (G), ±3% (H), ±5% (J), ±10% (K)

Operating Temperature Range

-40°C ~ +125°C (including self-heating)

ENVIRONMENTAL CHARACTERISTICS

Test

Solderability

Resistance to Soldering Heat

Humidity Resistance (no load)

High Temperature Resistance (no load)

Low Temperature Resistance (no load)

High Temperature Load Life

Humidity Load Life

Specifications

90% Min. Coverage

Test Method & Condition

Flux: 25% Resin, 75% Ethanol (by weight)

Solder: Sn/Ag3.0/Cu0.5,

Solder Temp.: 240 ± 5°C, Immersion: 3 ± 0.5 sec.

Device reflowed on pcb for 10 seconds at +260°C

± 5°C in solder Sn/Ag3.0/Cu0.5. Test time 6 min.

After 1000 hours at +60°C ± 2°C and 90 ~ 95% RH

(1) No mechanical damage

(2) Inductance change ±5% of initial value

(3) Q factor within ±20% of initial value.

Measure after chip is stablized at room

temperature for 1 ~ 2 hours.

After 1000 +24/-0 hours at +125°C ± 2°C

After 1000 +24/-0 hours at -40°C ± 2°C

After 1000 hrs at +125°C ± 2°C and rated current

After 1000 hrs at +60°C ± 2°C, 90~95% RH

and rated current

COMPONENT DIMENSIONS (mm):

Type

NIN-SK

Case Size

0402

1.10 ± 0.10

0.60 ± 0.10

D ref.

0.20

0.50 ± 0.10

0.20 ± 0.10

PART NUMBER SYSTEM

NIN-S K 22N

TR F

Pb-free/RoHS compliant

Taped & Reeled

Tolerance Code: ±0.2nH (C), ±0.3nH (S), ±0.5nH (D), ±2% (G),

±3% (H), ±5% (J) and ±10% (K)

Inductance Value in Nanohenries

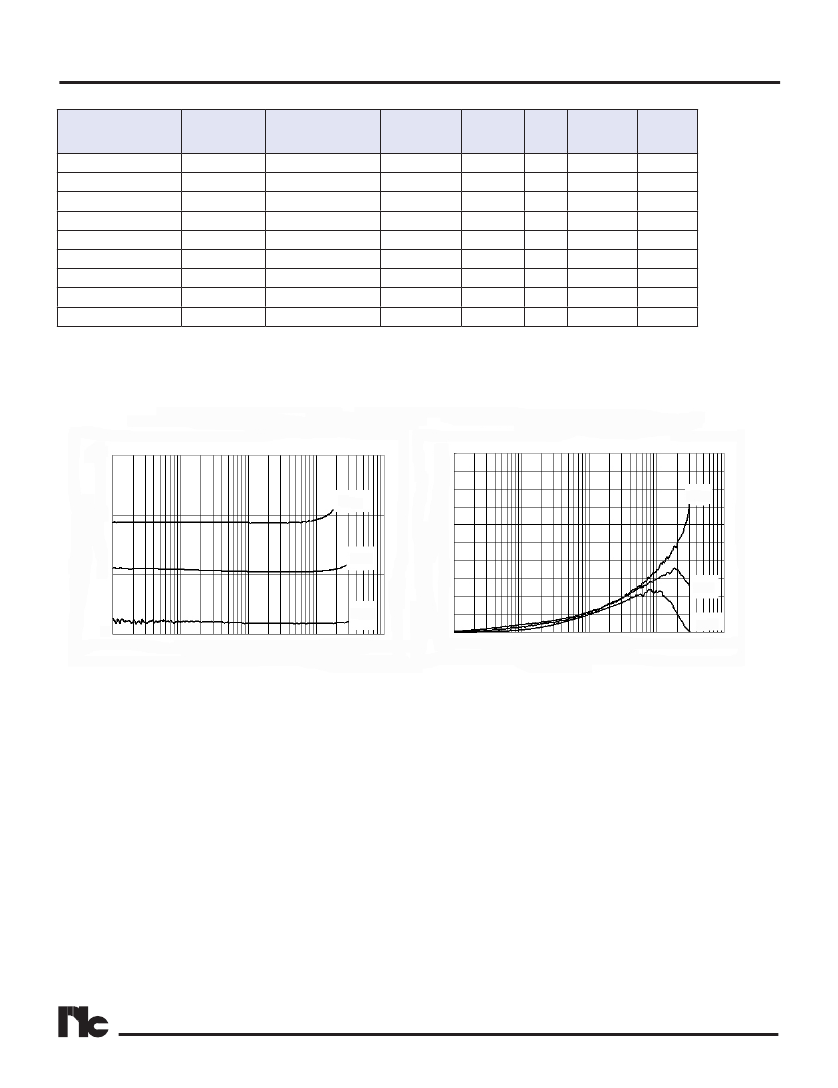

(see standard values table for appropriate value codes)

Case Code (K = 0402, J = 0603)

Series

NIC COMPONENTS CORP.

www.niccomp.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

NIN-SK6N6GTR1280F Related Products

	NIN-SK6N6GTR1280F	NIN-SK6N6HTR1280F	NIN-SK6N7GTR1280F
Description	GENERAL PURPOSE INDUCTOR,	GENERAL PURPOSE INDUCTOR,	GENERAL PURPOSE INDUCTOR,
Is it Rohs certified?	conform to	conform to	conform to
Objectid	7104123089	7104123090	7104123093
package instruction	0402	0402	0402
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
uppercase and lowercase codes	0402	0402	0402
structure	Rectangular	Rectangular	Rectangular
core material	Wirewound	Wirewound	Wirewound
DC Resistance	0.078 Ω	0.078 Ω	0.078 Ω
Nominal inductance(L)	0.0066 µH	0.0066 µH	0.0067 µH
Inductor Applications	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package height	0.6 mm	0.6 mm	0.6 mm
Package length	1.1 mm	1.1 mm	1.1 mm
Package form	SMT	SMT	SMT
Package width	0.6 mm	0.6 mm	0.6 mm
method of packing	TR, 7 Inch	TR, 7 Inch	TR, 7 Inch
Minimum quality factor (at nominal inductance)	30	30	30
Maximum rated current	1.28 A	1.28 A	1.28 A
self resonant frequency	7000 MHz	7000 MHz	7000 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO
special characteristics	Q IS MEASURED AT 250 MHZ	Q IS MEASURED AT 250 MHZ	Q IS MEASURED AT 250 MHZ
surface mount	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	100 MHz	100 MHz	100 MHz
Tolerance	2%	3%	2%
