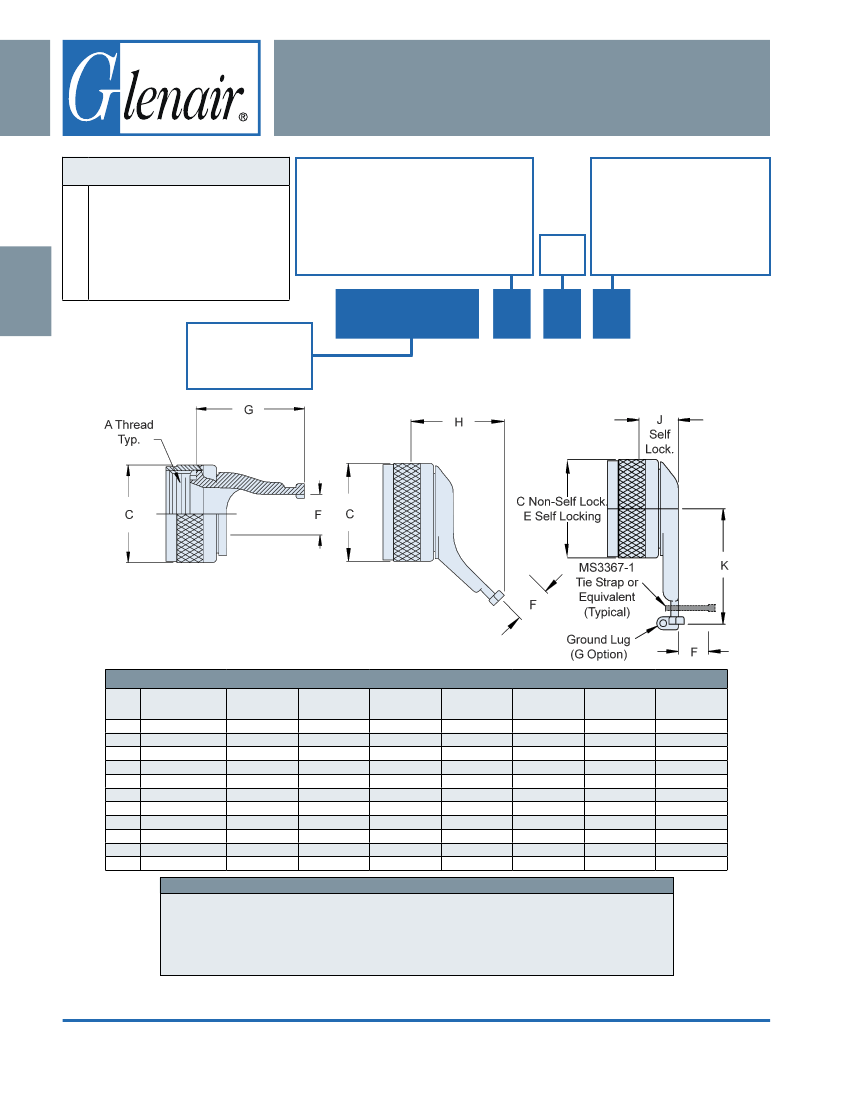

AS85049/53, AS85049/54 and AS85049/55

Straight, 45° and 90° Qwik-Ty Strain Reliefs

Optional Self-Locking • Optional Ground Lug

Configuration

AS85049

CONNECTOR DESIGNATOR:

AS50151 Series AS34001

MIL-DTL-26482 Series II

AS81703 Series III

MIL-DTL-83723 Series I and III

40M39569, DEF 5326-3, EN2997

EN3646, ESC 10, ESC 11, LN 29504

NFC93422 Series HE302

PAN 6432-1, PAN 6432-2, PATT 602

––

= Non-Self-Locking

= Non-Self-Locking with Ground Lug*

= Detented, Self-Locking*

= Detented, Self-Locking with Ground Lug

= Non-Detented, Self-Locking

= Non-Detented, Self-Locking with Ground Lug

*Configuration Options G, S, T, H and N are

only available with AS85049/55

Shell

Size

= Anodize, Black

= Electroless Nickel

= 1,000 Hour Cadmium Olive Drab

over Electroless Nickel

= Nickel Fluorocarbon Polymer

= Pure Dense Electrodeposited

Aluminum

= Zinc-Nickel, Black

Finish

OPTIONAL

SELF-LOCKING

COUPLING

Basic Part Number

M85049/53

= Straight

M85049/54

= 45°

M85049/55

= 90°

M85049/55

FOR NEW DESIGN APPLICATIONS USE

M85049/43 (45°), M85049/51 (90°) and M85049/52 (Straight)

TABLE I: Shell Size, Thread, Cable Entry and Backshell Dimensions

Shell

Size

A Thread

Class 2B

562 - 24 UNEF

.500 - 20 UNF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.062 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

1.750 - 18 UNS

C Dia

Max

.780

.660

.780

.940

1.050

1.240

1.380

1.500

1.630

1.750

1.970

(19.8)

(16.8)

(19.8)

(23.9)

(26.7)

(31.5)

(35.1)

(38.1)

(41.4)

(44.5)

(50.0)

E Dia

Max

1.010

.890

1.010

1.140

1.260

1.390

1.510

1.640

1.760

1.890

2.140

(25.7)

(22.6)

(25.7)

(29.0)

(32.0)

(35.3)

(38.4)

(41.7)

(44.7)

(48.0)

(54.4)

Cable Entry

.260

.365

.501

.575

.700

.779

.904

1.029

1.144

1.379

(6.6)

(9.3)

(12.7)

(14.6)

(17.8)

(19.8)

(23.0)

(26.1)

(29.1)

(35.0)

Max

.954

1.204

1.310

1.430

1.560

(24.0)

(30.6)

(33.3)

(36.3)

(39.6)

Max

1.232

1.482

1.469

(31.3)

(37.6)

(37.3)

Max

.730 (18.5)

.750 (19.1)

Max

1.290

1.620

1.660

1.720

1.790

1.850

1.910

2.060

(32.8)

(31.0)

(32.8)

(41.1)

(42.2)

(43.7)

(45.5)

(47.0)

(48.5)

(52.3)

APPLICATION NOTES

Assembly identified with manufacturer’s name and part number, space permitting.

For complete dimensions, see the applicable Military Specification.

Cable entry is defined as the accomodation range for the wire bundle or cable. Dimensions shown are not

intended for inspection criteria.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

Mil-Spec Backshells

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

Rev. 03/15/18

B-78

E-Mail: sales@glenair.com
