WP SPG - SPARK GAP PROTECTORS
Table of Contents
L Series
- Low Current Axial Lead Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
M Series
- Medium Current Axial Lead Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
H Series
- High Current Axial Lead Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
HX Series
- Super High Current Axial Lead Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LS Series
- Low Current SMD Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
MS Series
- Medium Current SMD Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
HS Series
- High Current SMD Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
WORLD PRODUCTS INC.
19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com
WPSPG Spark Gap Protectors | 1
Rev. 1.8
WP SPG - SPARK GAP PROTECTORS
WPSPG Spark Gap Protectors – L Series
Part Numbering System
WPSPG
(1)
-
20
(2)
L
(3)
200
(4)
TA
(5)
(1) World Products Spark Gap Protector
(2) DC Spark-over Voltage
Tolerance: (Example: 20=20% tolerance)
(3) Series Type
L= Low Current
(4) DC Spark-over Voltage:
(Example: 200 = 200V)
(5) Packaging:
Nil = Bulk
TA = Taped/Ammo Box
FEATURES:
1. RoHS Compliant and Halogen Free
2. UL497B – PENDING
3. Fast Responding
4. Low Capacitance
5. Zero leakage current
6. Stable electrical characteristics over time
7. Can withstand repeated surges
8. Symmetrical
9. Operate and storage temperature: -40ºC to +85ºC
WORLD PRODUCTS INC.
19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com
2 | WPSPG Spark Gap Protectors
Rev. 1.8
WP SPG - SPARK GAP PROTECTORS

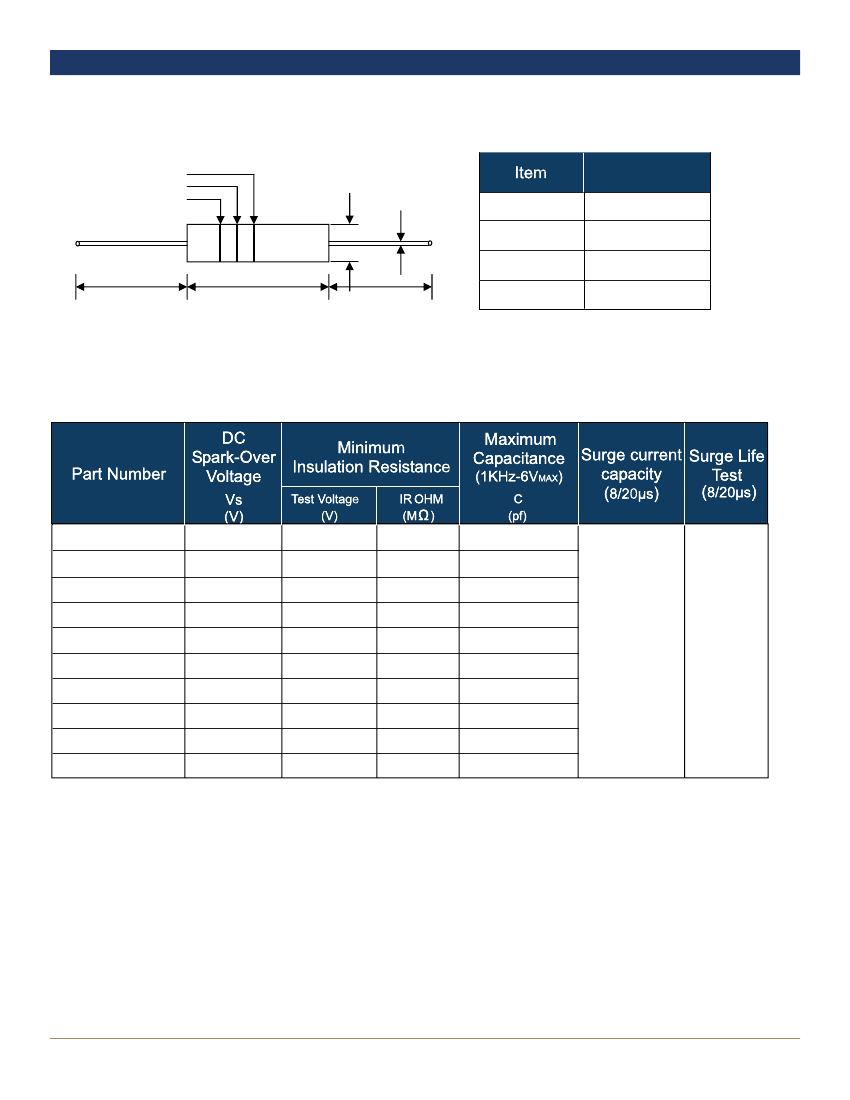

WPSPG Spark Gap Protectors - L Series
DIMENSIONS in mm.
Color Code 1
Color Code 2
Color Code 3
D
d
L
4.0 ± 0.5
28.0 ± 3.0
2.0 ± 0.5
0.5 ± 0.05
L1
D
L1
L
L1
d
ELECTRICAL CHARACTERISTICS
WPSPG-XXL 140
WPSPG-XXL 200
WPSPG-XXL 220
WPSPG-XXL 300
WPSPG-XXL 400
WPSPG-XXL 500
WPSPG-XXL 600
WPSPG-XXL 700
WPSPG-XXL 1000
WPSPG-XXL 1500
140
200
220
300
400
500
600
700
1000
1500
50
100
100
100
250
250
250
250
500
500
100
100
100
100
100
100
100
100
100
100
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
>500A
100A
>150 times
Note: Vs±XX% (DC Spark-over Voltage Tolerance 30% and 20%),140V device is only available in 30% tolerance.
