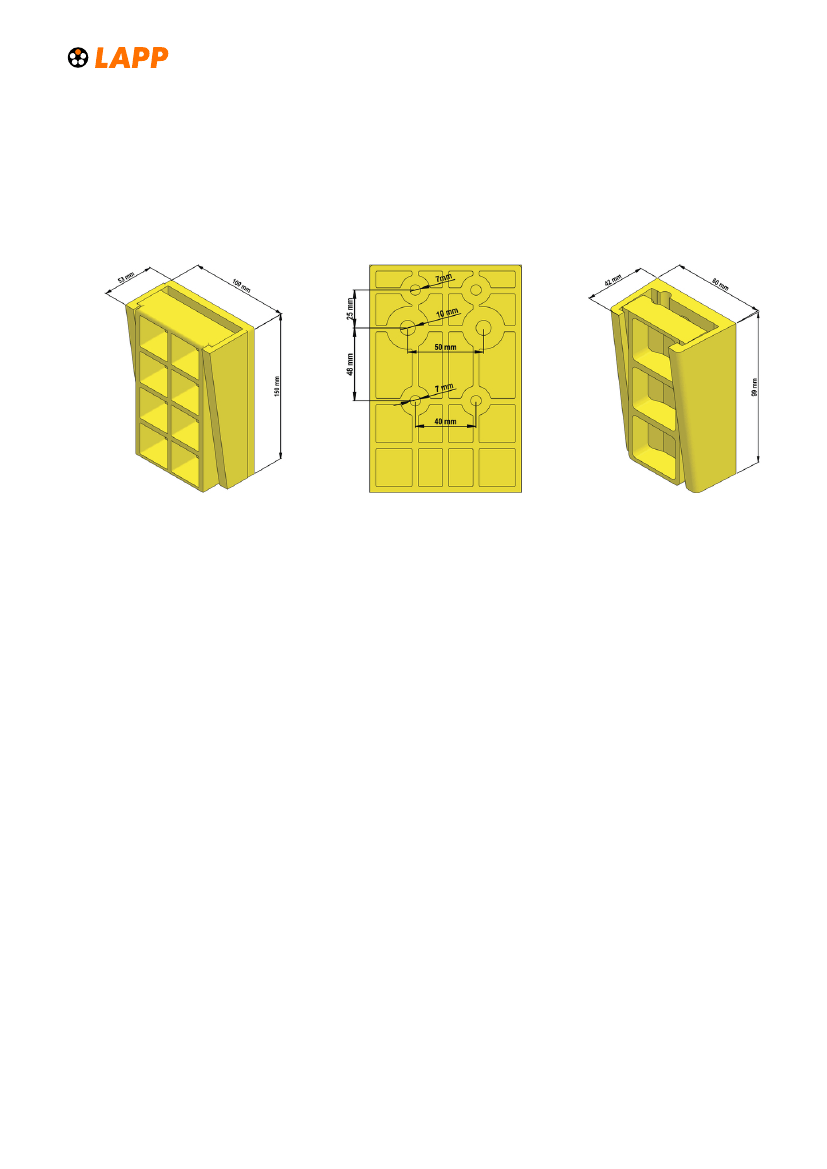

PRODUCT INFORMATION
FKK Flat cable wedge clamps
FKK 08 wedges for fastening flat cables up to 10 mm cable thickness
Info
Suitable installation sheets in the web catalog
Benefits
On the shaft side, the mounting plate can be screwed onto the wall or bolted or welded to the rail bracket
The mounting plate can be bolted or welded to the lift cage
Application range
Mounting flat control cables
Product Make-up
The small wedge-shaped cable clamp can hold up to 2 flat cables, the big one up to 3 flat cables
Technical Data
Classification ETIM 5:
ETIM 5.0 Class-ID: EC002407
ETIM 5.0 Class-Description: Accessories for installation rail
current/data cable
ETIM 6.0 Class-ID: EC002407
ETIM 6.0 Class-Description: Accessories for installation rail
current/data cable
Clamping force (at overall cable thickness):
FKK 08: 2-10mm = 600-800N
FKK 07: 2-9mm / 16-17mm = 800N
Minimum insert depth for wedge:
FKK 08: 60% = 60mm
FKK 07: 60% = 90mm
Polyamide 6.6 - halogen-free
Operating temperature: -20°C to +50°C
Classification ETIM 6:
Info:
Material:
Temperature range:
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (21.02.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
FKK Flat cable wedge clamps
Weight (g)
103
50 x 10
1-2
FKK 08
52026051
52026050
FKK 07
1-3
90x17
Article number
Article designation
Number of cables
Last Update (21.02.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
Max. total cable length (mm)
349

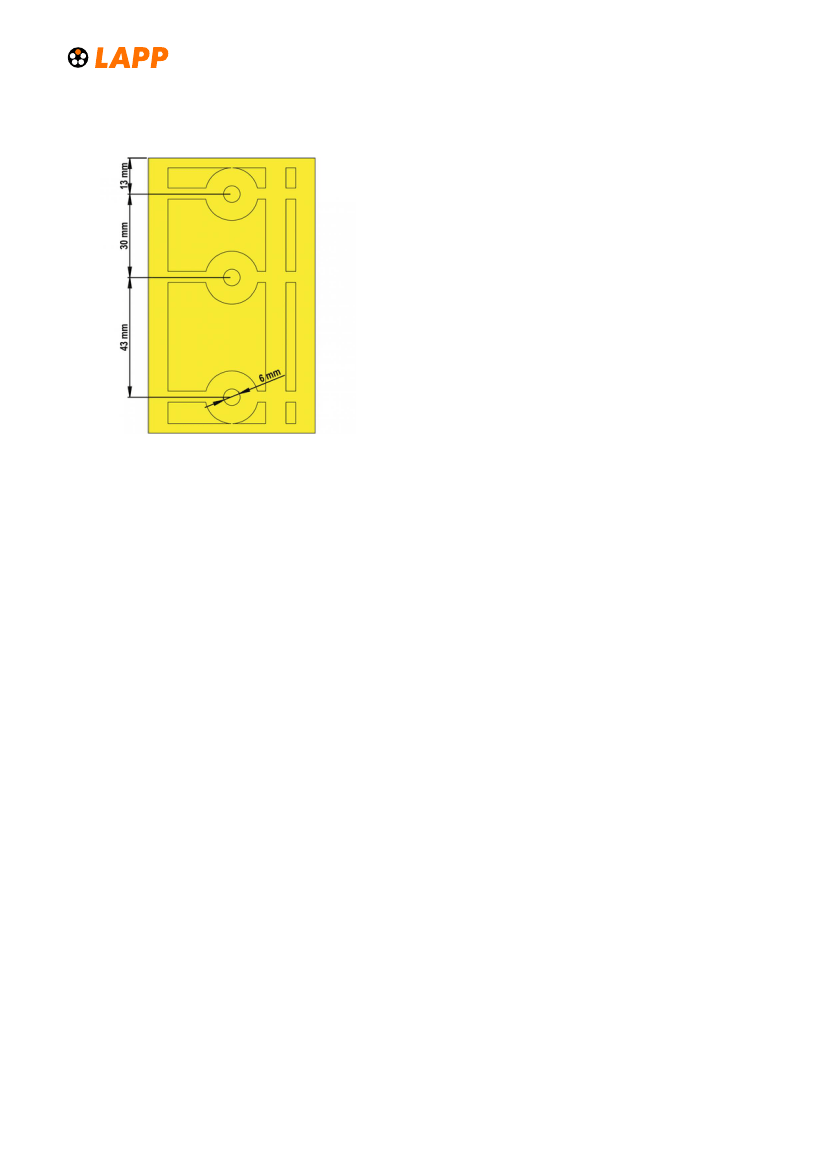

PRODUCT INFORMATION
FKK Flat cable wedge clamps
Last Update (21.02.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
