POWR-BLOKS
™
Distribution/Splicer Blocks and Covers
SPECIFICATIONS
Voltage:
600 Volts
Amperage:
Based on NEC Table 310-16,
using 75°C copper wire
Material:
Phenolic 150°C
Connector:Standard:
Highly conductive aluminum,
tin plated.
Flammability rating:
94V-0
Approvals:
UL Recognized (File No. E171395)
CSA Certified (File No. LR700111)

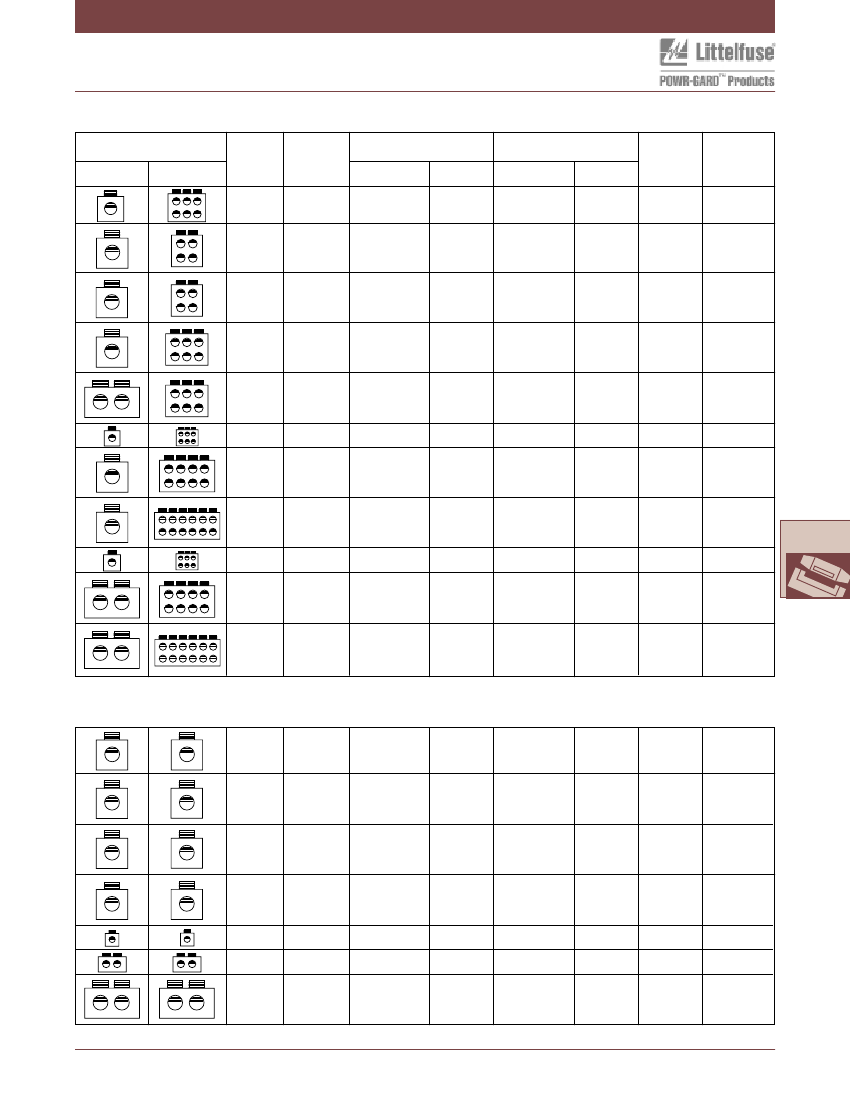

ORDERING INFORMATION
Distribution Block
Example Part No.
Splicer Block
Example Part No.

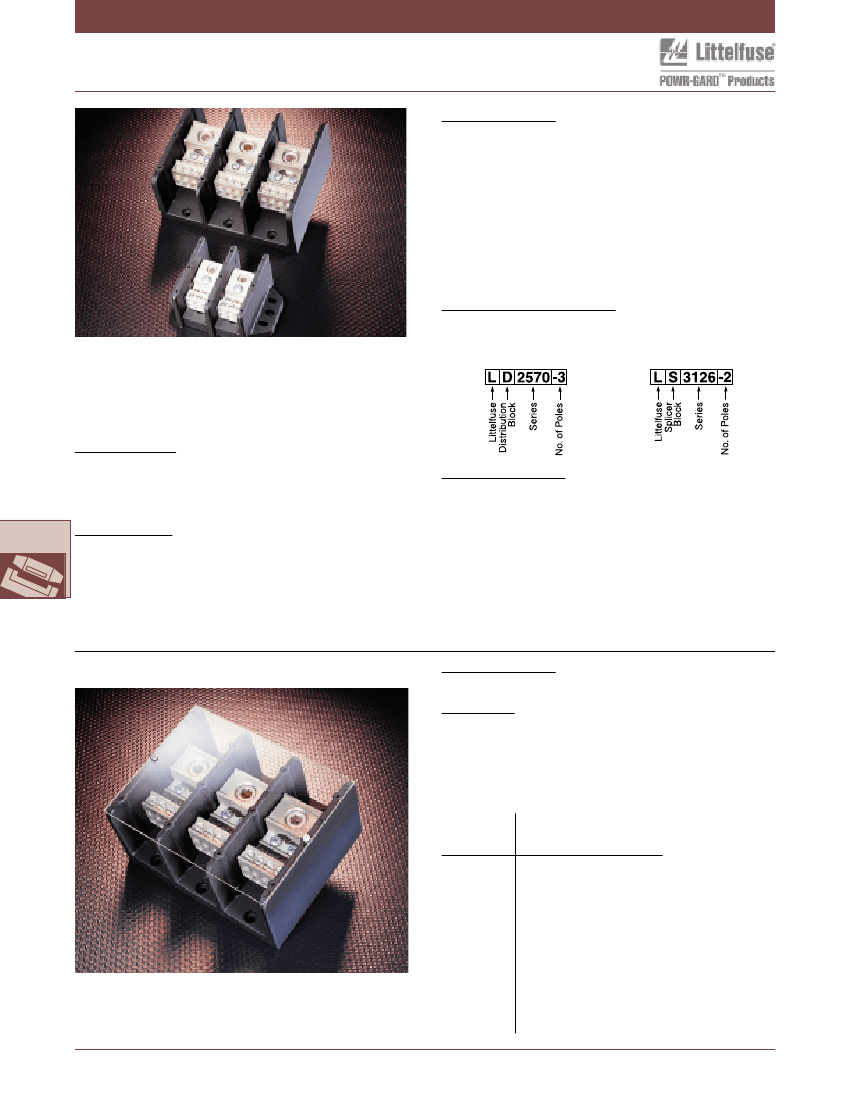

POWR-BLOKS
™
power distribution and splicer blocks offer a
safe, convenient way of splicing cables, providing a fixed
junction tap-off point, or splitting primary power into secondary
circuits. Blocks have one or two primary inputs, with up to
twelve secondary outputs per pole. The number of poles
available ranges from one to three.
APPLICATIONS
Typical applications include heating, air conditioning and
refrigeration systems, elevator systems, material handling
equipment, control panels, motor controls, switchgear, and
anywhere power needs to be distributed to more than one load.
BLOCKS
CONNECTORS
AND
HOLDERS
Box lug connectors are designed for use with a single, solid or
AMPERE RATINGS
The ampere rating per pole for power distribution blocks is
based on the line ampacity of 75° C insulated conductors per
NEC Table 310-16. If 60° C insulated conductors are used,
load must not exceed the ampacity of 60° C conductors. Use
of conductors rated in excess of 75° C is permitted (for
example 90° C), however, load must not exceed the
ampacity of 75° C conductors.
class B or C stranded conductor. Use of more than one conductor
per connector opening or use of extra-flexible, fine stranded
conductors, such as welding cable, voids the UL Listing, and may
cause overheating. Manufacturers of cable terminations can
furnish crimp-on sleeves for fine stranded conductors which permit
these conductors to be used with box lugs.

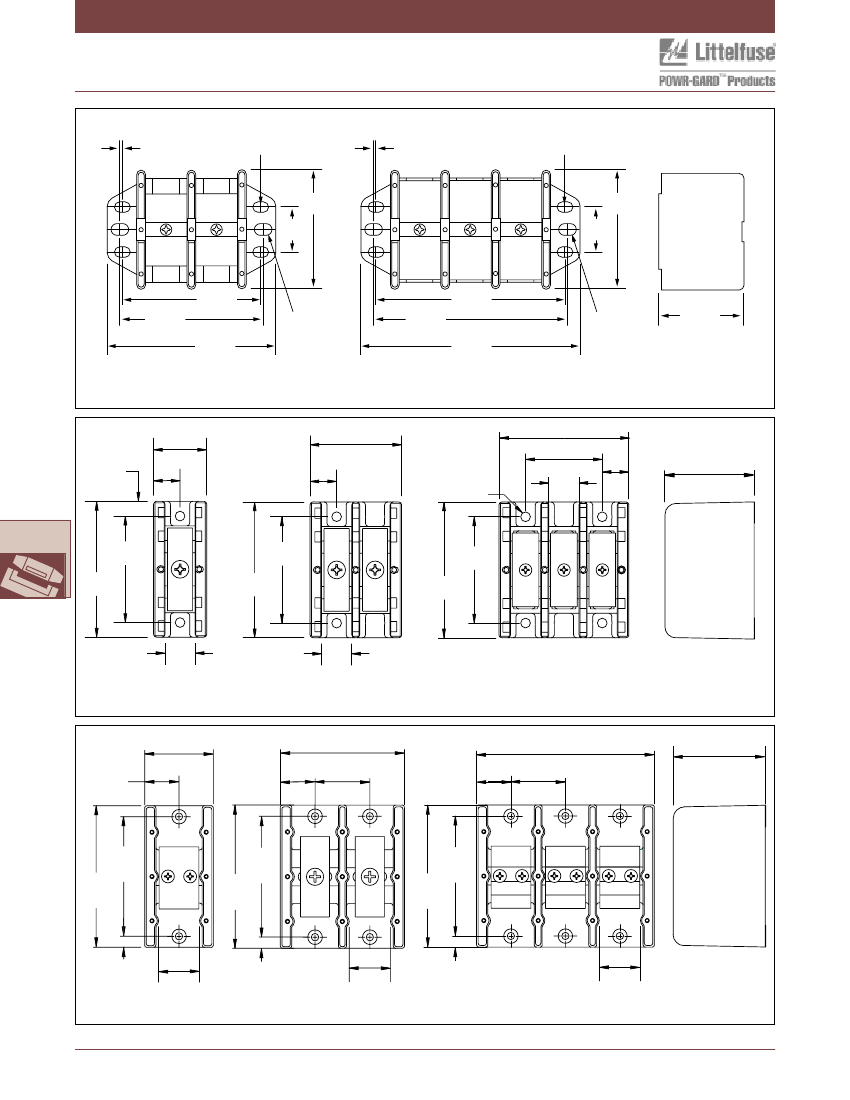

Distribution Block Covers
SPECIFICATIONS
Material:
0.06” clear plexiglas
™
.
FEATURES
Two thread-cutting screws are furnished for each cover.
Covers are slotted for easy installation.
Covers available for all Power Distribution Blocks ...see below.

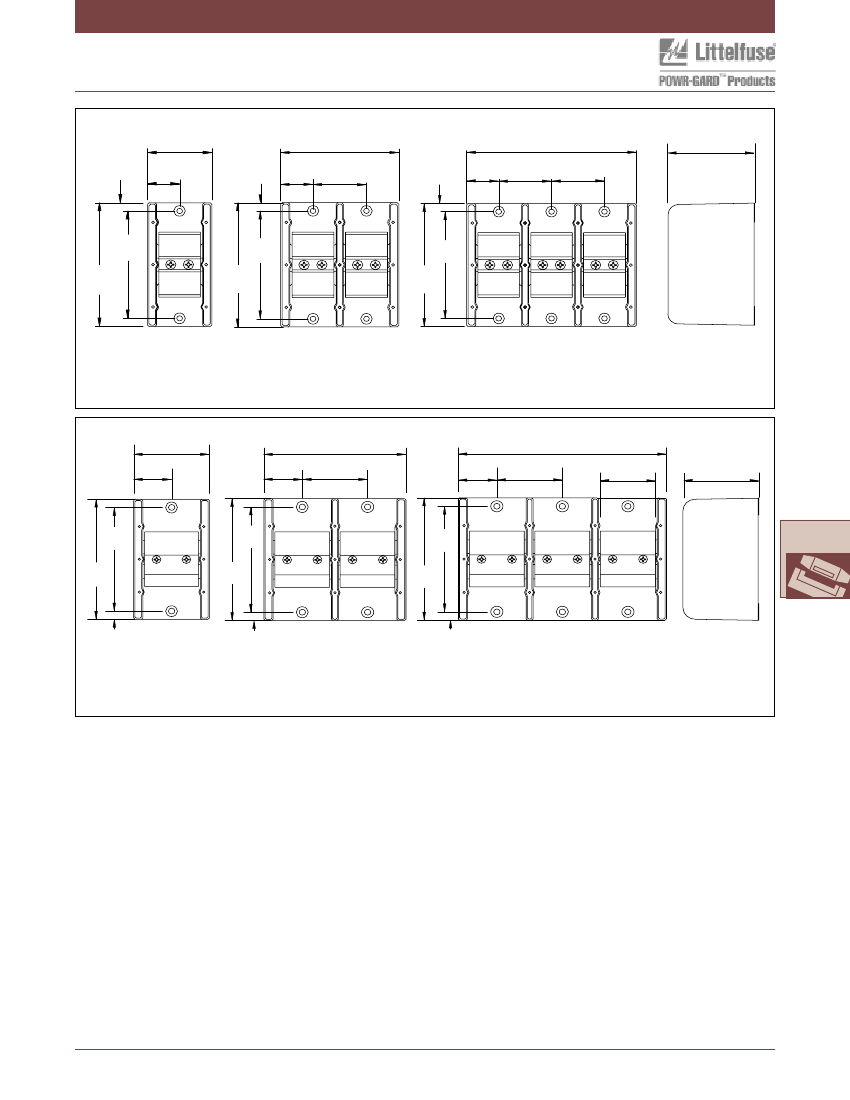

Power Distribution/Splicer Block Cover
Selection Guide & Dimensions
Littelfuse
Part
Number
LPBC0-2
LPBC0-3
LPBC2-1
LPBC2-2
LPBC2-3
LPBC3-1
LPBC3-2
LPBC3-3
LPBC4-1
LPBC4-2
LPBC4-3
LPBC5-1
LPBC5-2
LPBC5-3
For use with
Power Distribution
Block No.
LX0XXX-2
LX0XXX-3
LX2XXX-1
LX2XXX-2
LX2XXX-3
LX3XXX-1
LX3XXX-2
LX3XXX-3
LX4XXX-1
LX4XXX-2
LX4XXX-3
LX5XXX-1
LX5XXX-2
LX5XXX-3
Power Distribution Block Covers provide protection against
accidental shorting between poles caused by loose wires,
tools or other conductive material. They also protect person-
nel from accidentally contacting energized connectors.
