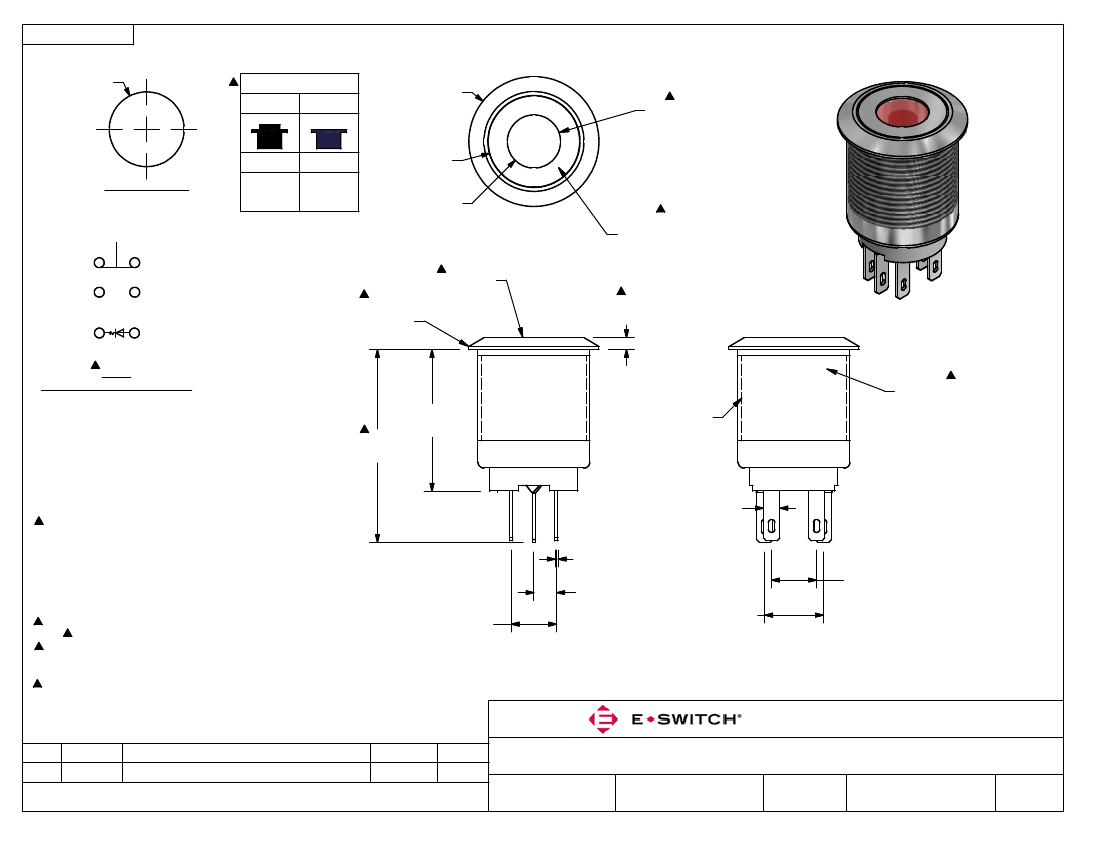

SHEET 1 OF 1
n
19.00
n
22.00
[.866 in]
[.748 in]
SWITCH FUNCTION
POS. 1
POS. 2
DOT ILLUMINATION
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
11.0mm [.433]
1-2
(ON)
3-4
n
15.50
[.610 in]
n
9.00
(ON) = MOMENTARY
[.354 in]
ACTUATOR FINISH
MACHINE FINISH
STAINLESS STEEL
FLAT ACTUATOR
1
4
_
2
3
+
2.00
[.079 in]
BODY FINISH
MACHINE FINISH
STAINLESS STEEL
RED
SPDT
CONTACT CONFIGURATION
24.00
`
.50
[.945
`
.020
in]
M19x1.0
NOTE 15
HARDWARE SUPPLIED
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20° to 55°
C
C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 1.8V
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: RED
17. 2002/95/EC (ROHS) COMPLIANT.
32.70
`
.50
[1.287
`
.020
in]
4
+
1
.50
[.020 in]
3.85
[.152 in]
2.80
[.110 in]
(+)
1
3
(-)
7.60
[.299 in]
9.90
[.390 in]
7.70
[.303 in]
A
REV
20912
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
12/6/12
DATE
EBP
BY
TITLE
SCALE
PV4F2Y0SS-211
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
12/6/2012
DR
DWG
REV
EBP
52-PV4F2Y0SS211
