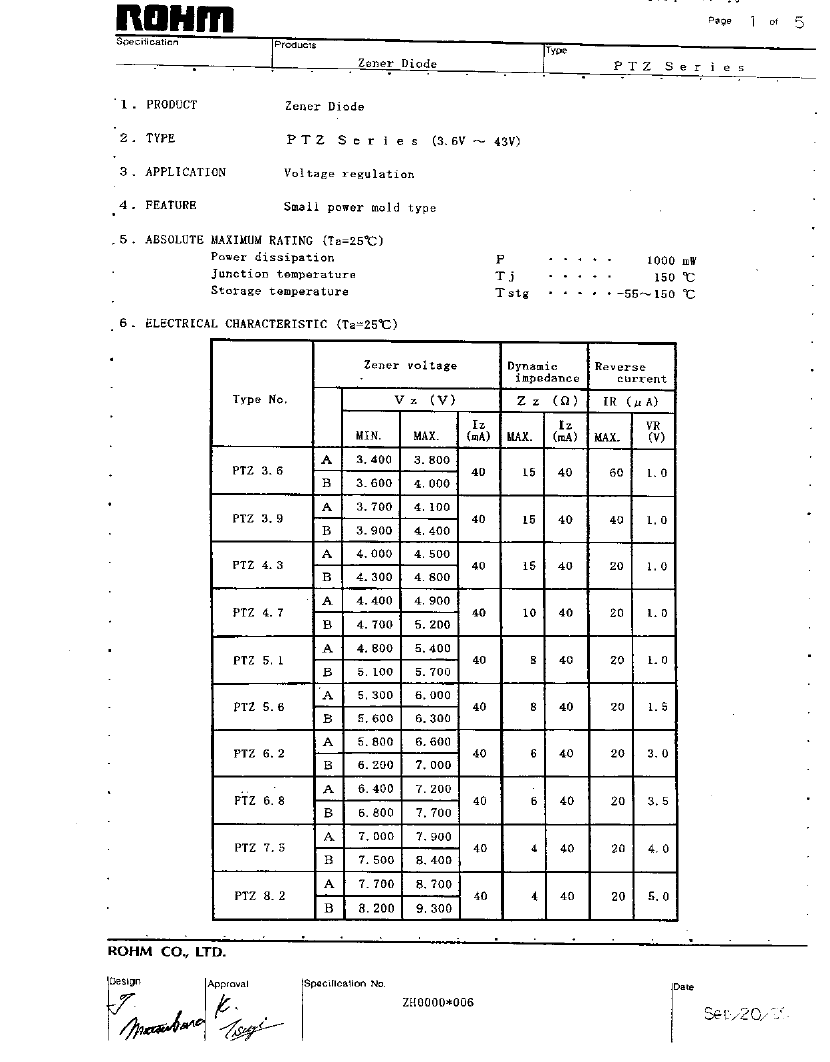

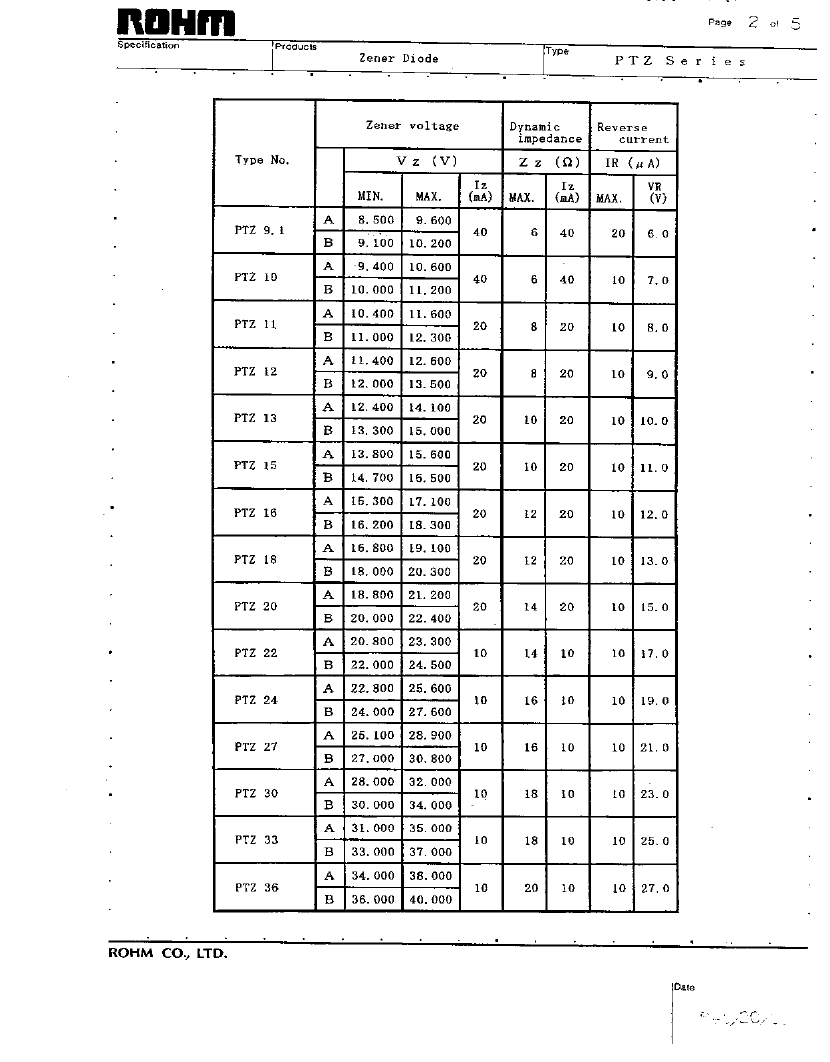

20 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | ROHM Semiconductor |
| package instruction | R-PDSO-C2 |
| Contacts | 2 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| JESD-30 code | R-PDSO-C2 |
| JESD-609 code | e1 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 |
| polarity | UNIDIRECTIONAL |

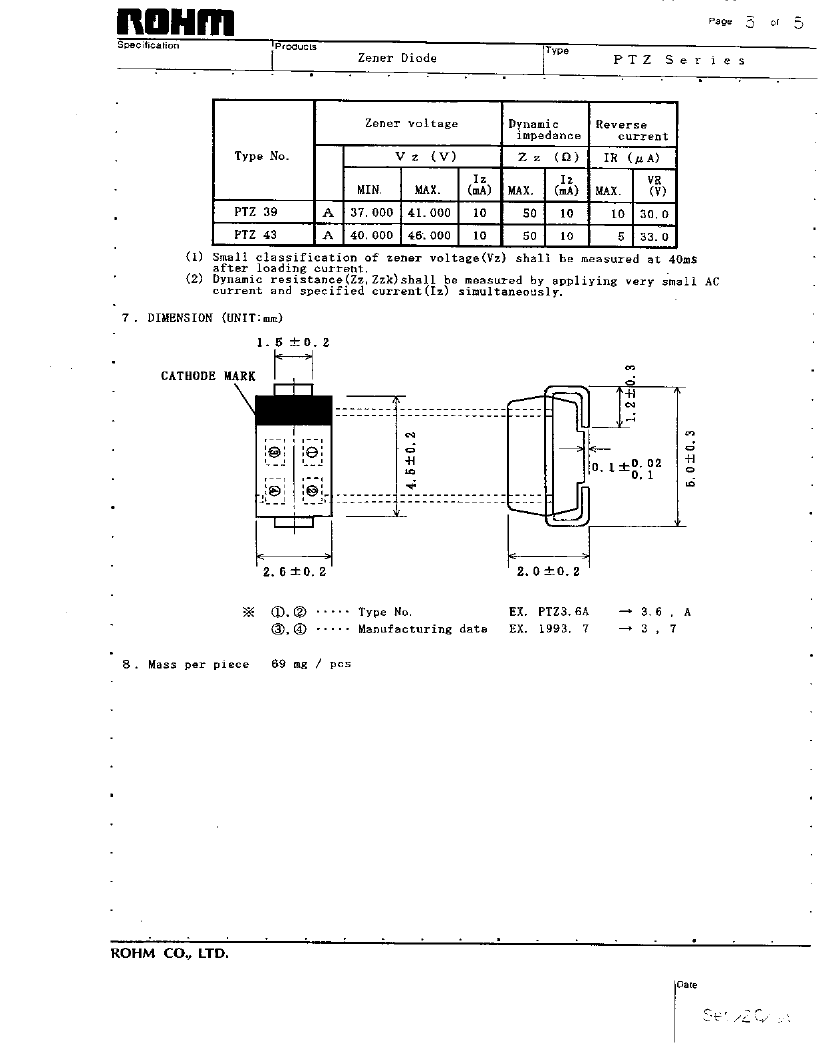

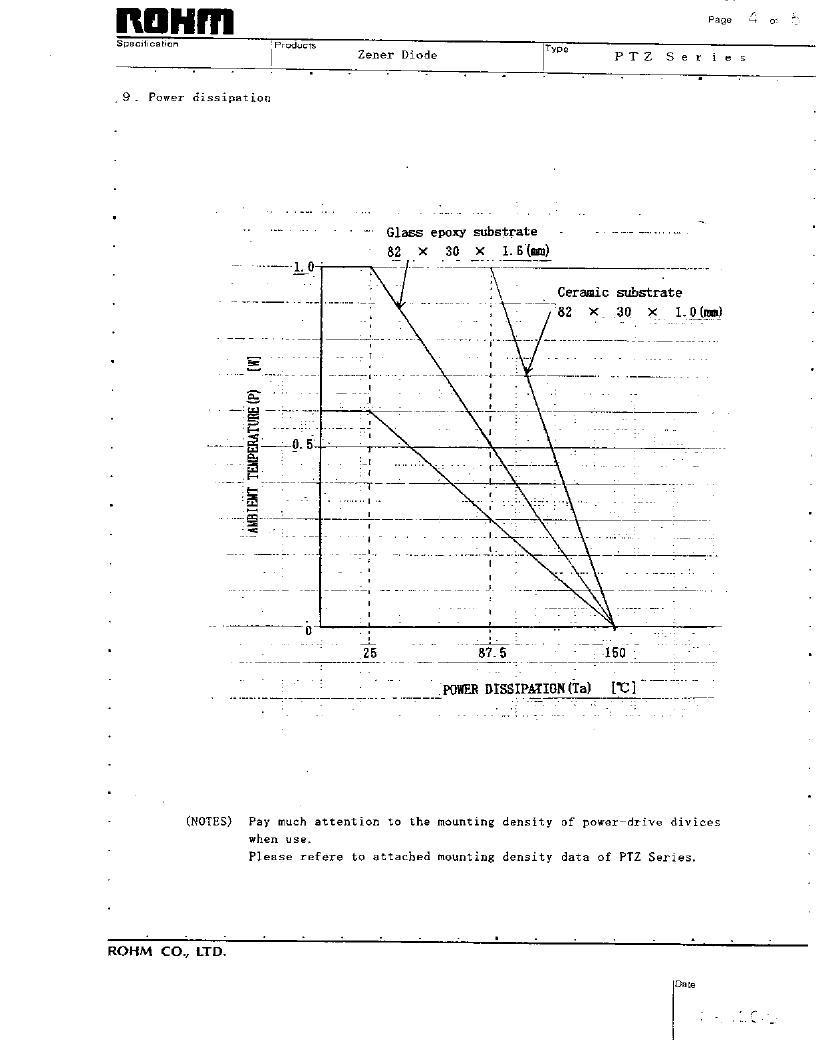

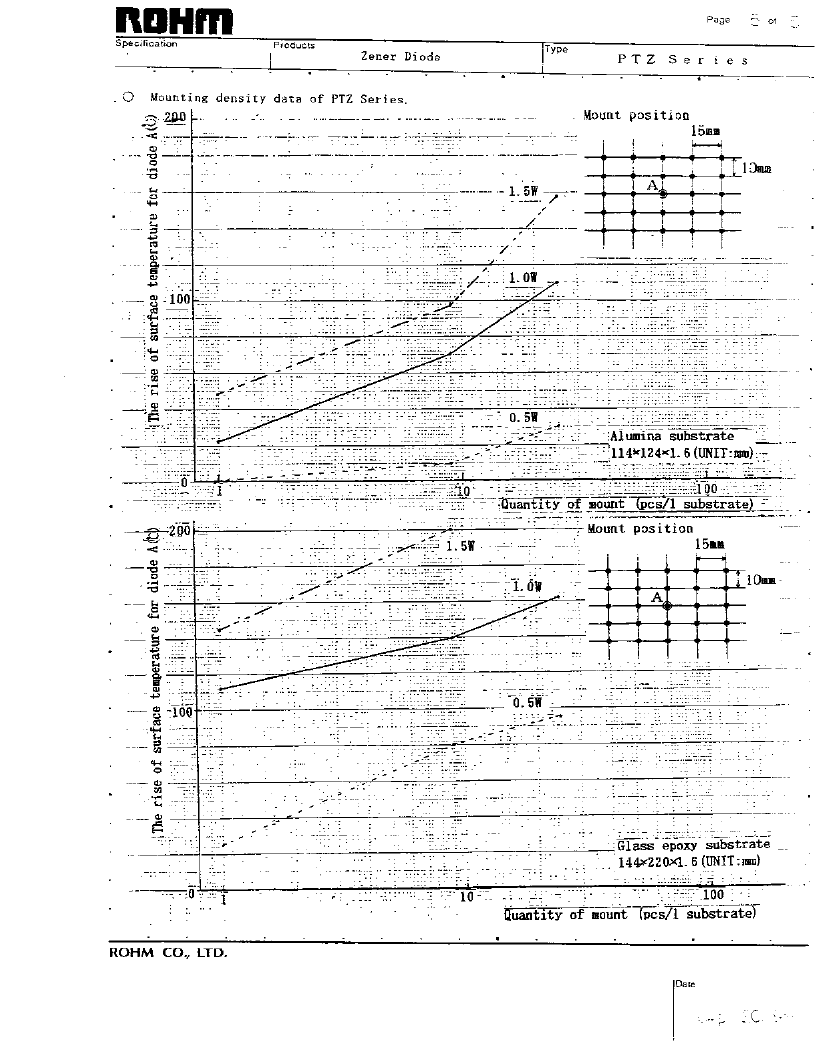

| Maximum power dissipation | 1 W |
| Certification status | Not Qualified |
| Nominal reference voltage | 20 V |
| surface mount | YES |
| technology | ZENER |
| Terminal surface | TIN SILVER COPPER |
| Terminal form | C BEND |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 10 |
| Working test current | 20 mA |
| PTZ20 | PTZ6.2 | PTZ7.5 | PTZ11 | PTZ3.6 | PTZ4.3 | PTZ8.2 | PTZ5.1 | |
|---|---|---|---|---|---|---|---|---|
| Description | 20 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 6.2 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 6.2 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 11 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 3.6 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 4.3 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 8.2 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE | 5.1 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| package instruction | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 |
| Contacts | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | compliant | compli | compli | compli | compli | compli | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE |
| JESD-30 code | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 | R-PDSO-C2 |
| JESD-609 code | e1 | e1 | e1 | e1 | e1 | e1 | e1 | e1 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| Maximum power dissipation | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W | 1 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal reference voltage | 20 V | 6.2 V | 7.5 V | 11 V | 3.6 V | 4.3 V | 8.2 V | 5.1 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER |
| Terminal surface | TIN SILVER COPPER | Tin/Silver/Copper (Sn/Ag/Cu) | TIN SILVER COPPER | TIN SILVER COPPER | Tin/Silver/Copper (Sn/Ag/Cu) | TIN SILVER COPPER | TIN SILVER COPPER | TIN SILVER COPPER |
| Terminal form | C BEND | C BEND | C BEND | C BEND | C BEND | C BEND | C BEND | C BEND |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Working test current | 20 mA | 40 mA | 40 mA | 20 mA | 40 mA | 40 mA | 40 mA | 40 mA |
| Maker | ROHM Semiconductor | ROHM Semiconductor | ROHM Semiconductor | - | - | ROHM Semiconductor | ROHM Semiconductor | ROHM Semiconductor |
