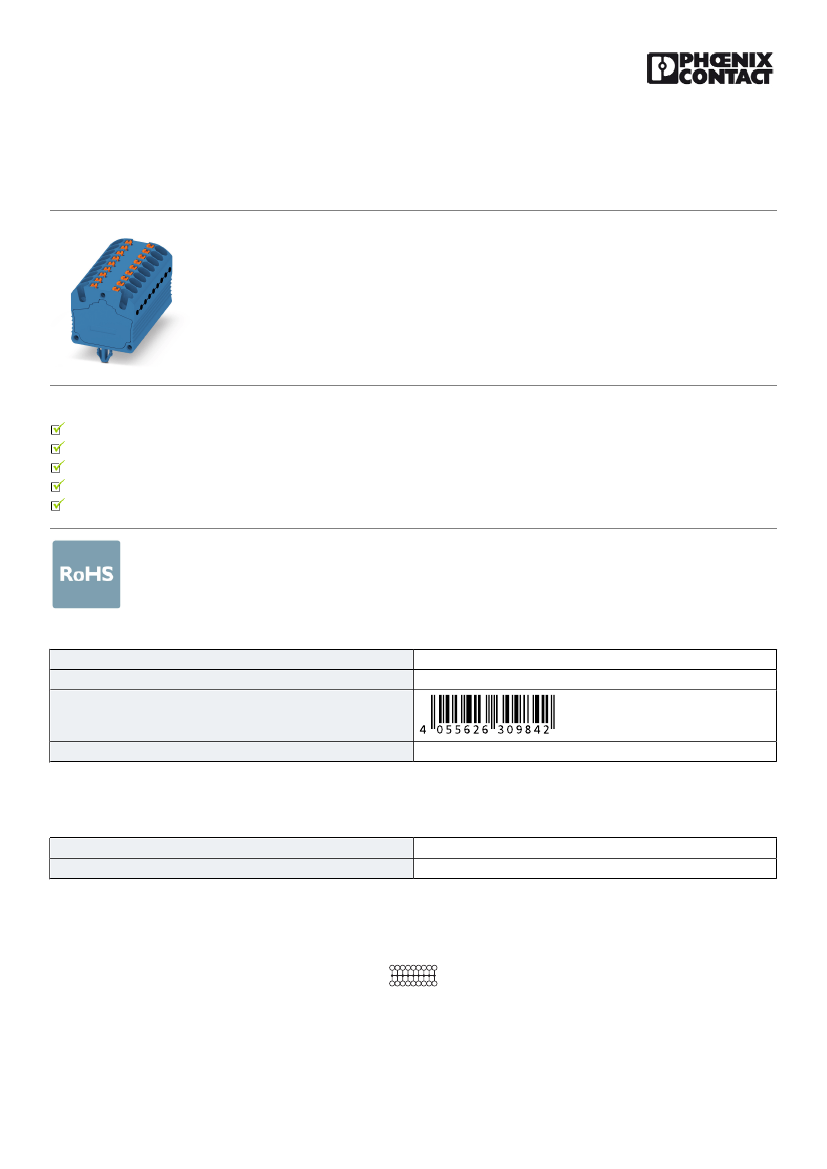

Micro feed-through terminal block - MP 18X1,5-RZ BU - 3248386
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Micro feed-through terminal block, jumpered internally, with securing pin for fixing, nom. voltage: 500 V,
nominal current: 17.5 A, connection method: Push-in connection, number of connections: 18, cross section:
0.14 mm² - 1.5 mm², AWG: 26 - 16, width: 39.9 mm, height: 22.1 mm, color: blue, mounting type: Direct
mounting with securing pin
Your advantages
Space-saving, thanks to the compact design
Flexible use, thanks to DIN rail and direct mounting
Space-saving potential distribution, thanks to compact micro potential distributors
Convenient test options, thanks to test openings at every terminal point
Clear arrangement thanks to marking of all terminal points
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626309842
20 pc
20 pc
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
03/26/2021 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3248386
Micro feed-through terminal block - MP 18X1,5-RZ BU - 3248386
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141120
27141120
27141120
27141100
27141100
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 6.0
ETIM 7.0
EC000897
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 19.0
30211811
39121410
39121410
39121410
39121410
39121410

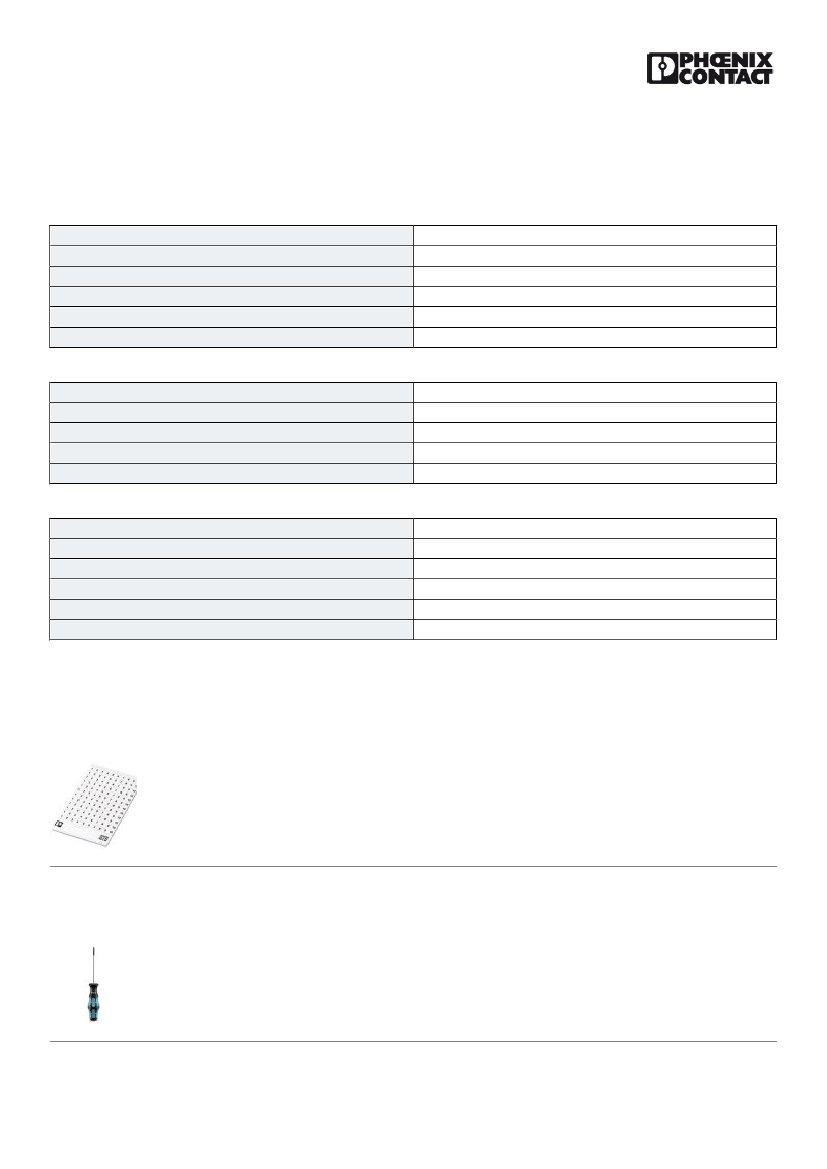

Accessories
Accessories
Labeled terminal marker
Marker card - SK 3,8 REEL P4,15 WH CUS - 0825990
Marker card, Card, can be ordered: by card, white, labeled according to customer specifications, mounting type:
adhesive, for terminal block width: 4.15 mm, lettering field size: continuous x 3.8 mm
Screwdriver tools
Screwdriver - SZF 0-0,4X2,5 - 1204504
Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.4 x 2.5 x 75 mm, 2-
component grip, with non-slip grip
03/26/2021 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3248386
Micro feed-through terminal block - MP 18X1,5-RZ BU - 3248386

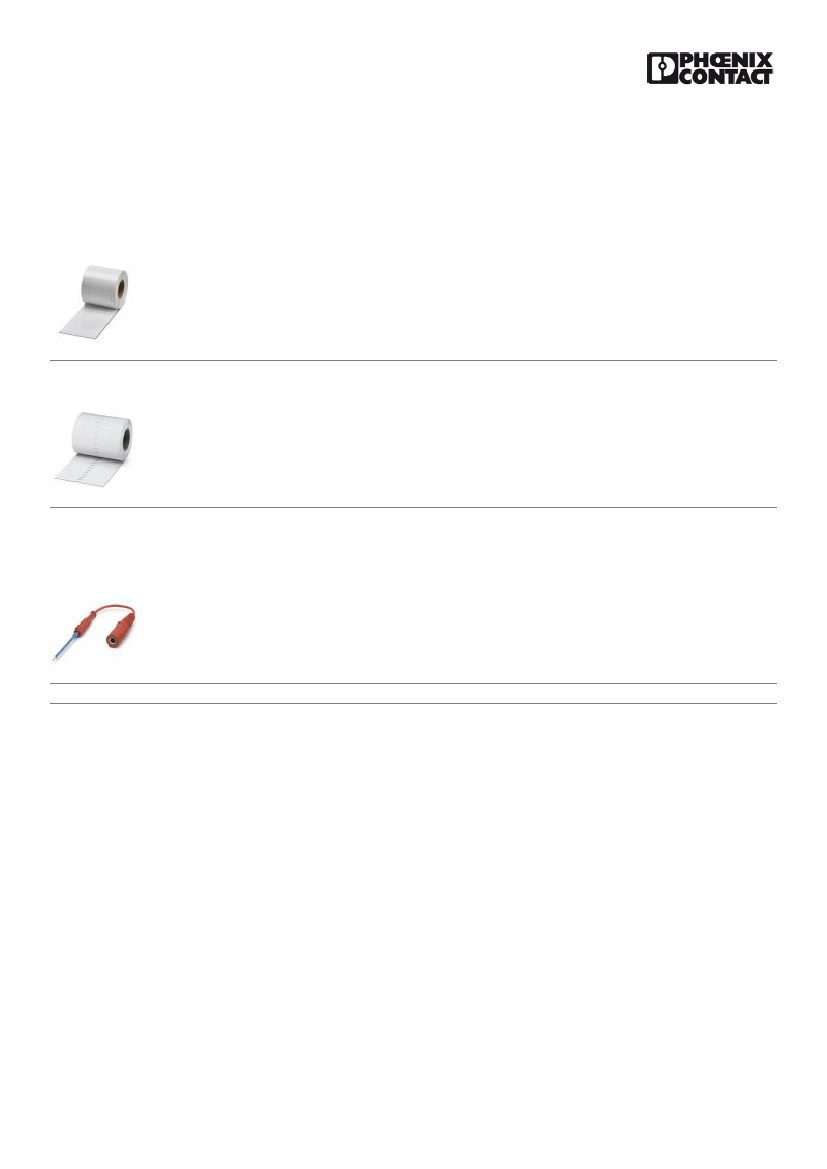

Accessories
Terminal marking
Marking foil for zack marker strip - TML (EX3,8)R - 0801837
Marking foil for zack marker strip, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLL 2.0,
THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK
X1.2, mounting type: adhesive, for terminal block width: 30000 mm, lettering field size: 30000 x 3.8 mm, Number of
individual labels: 1
Marking foil for zack marker strip - TML (104X3,8)R - 0801833
Marking foil for zack marker strip, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLL 2.0,
THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2,
mounting type: adhesive, for terminal block width: 104 mm, lettering field size: 104 x 3.8 mm, Number of individual
labels: 2500
Test plug terminal block
Accessories - MPS-MT 1-S4-B RD - 1982800
Accessories, number of positions: 1, pitch: 0 mm
Phoenix Contact 2021 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
03/26/2021 Page 3 / 3
