SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 1 of 3
SERIES H130A
FEATURES
SMALL PACKAGE OF 5.0 x 3.2 x 1.0 mm
EXCELLENT TOLERANCE AND STABILITY
CUSTOM SPECIFICATIONS AVAILABLE
SPECIFICATIONS
PARAMETER
VALUE
12.000 MHz TO 150.000 MHz
8.000 MHz TO 50.000 MHz
40.000 MHz TO 150.000 MHz
±50 PPM MAXIMUM
(±10, ±20, AND ±30 PPM AVAILABLE)
±50 PPM MAXIMUM
(±10, ±20, AND ±30 PPM AVAILABLE)
1
-20°C TO +70°C STANDARD
1
-40°C TO +85°C EXTENDED
-40°C TO +85°C
±5 PPM PER YEAR MAXIMUM
8 pF to 32 pF OR SERIES
SEE TABLE 1
7.0 pF MAXIMUM
100 µW TYP, 300 µW MAX
±5 PPM MAXIMUM 75 cm DROP TEST IN
3 AXES ONTO A HARD SURFACE
260°C ±5°C FOR 10s MAXIMUM
FREQUENCY RANGE
MODE OF OSCILLATION
FUNDAMENTAL
THIRD OVERTONE
FREQUENCY TOLERANCE AT 25°C
FREQUENCY STABILITY OVER TEMPERATURE
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
AGING
LOAD CAPACITANCE
EQUIVALENT SERIES RESISTANCE
SHUNT CAPACITANCE
DRIVE LEVEL
SHOCK RESISTANCE
REFLOW CONDITIONS
1
NOTE: NOT ALL STABILITIES ARE AVAILABLE FOR ALL OPERATING TEMPERATURE RANGES.
CONTACT FACTORY FOR AVAILABILITY.
TABLE 1
FREQUENCY
(MHz)
8.000 TO 9.999
10.000 TO 11.999
12.000 TO 15.999
16.000 TO 19.999
20.000 TO 23.999
24.000 TO 50.000
40.000 TO 150.000
MODE
FUND
FUND
FUND
FUND
FUND
FUND
3OT
MAX ESR
(OHMS)
100
80
60
50
40
30
80
R A L T R O N E L E C T R O N I C S
1 0 4 0 0 N .W . 3 3
rd
STREET
Miami, Florida 33172
U.S.A.
Telephone: 305-593-6033
Fax: 305-594-3973
e-mail: sales@raltron.com
web site: http://www.raltron.com
SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 2 of 3
SERIES H130A
PART NUMBERING SYSTEM
-
-
FREQUENCY
IN MHz
-
-
LOAD CAPACITANCE
8 TO 32 pF FOR PARALLEL
S FOR SERIES
TAPE &
REEL
TR
-
-
MODE
Blank FOR < 24.576 MHz
F FOR ≥ 24.576 MHz
3OT THIRD OVERTONE
-
-
TOLERANCE/STABLITY
(PPM/PPM)
Blank FOR MAXIMUM
PPMPPM
Example: 1020, 2050
TYPE
H130A
-
-
EXTENDED
TEMPERATURE
Blank FOR STANDARD
EXT FOR EXTENDED
-
-
EXAMPLE: H130A-24.000-18-TR
Surface Mount Microprocessor Crystal, H130A package, 24.000 MHz, Fundamental mode, 18 pF load, ±50 ppm
Tolerance, ±50 ppm Stability, from -20°C to +70°C, Tape and reel packaging

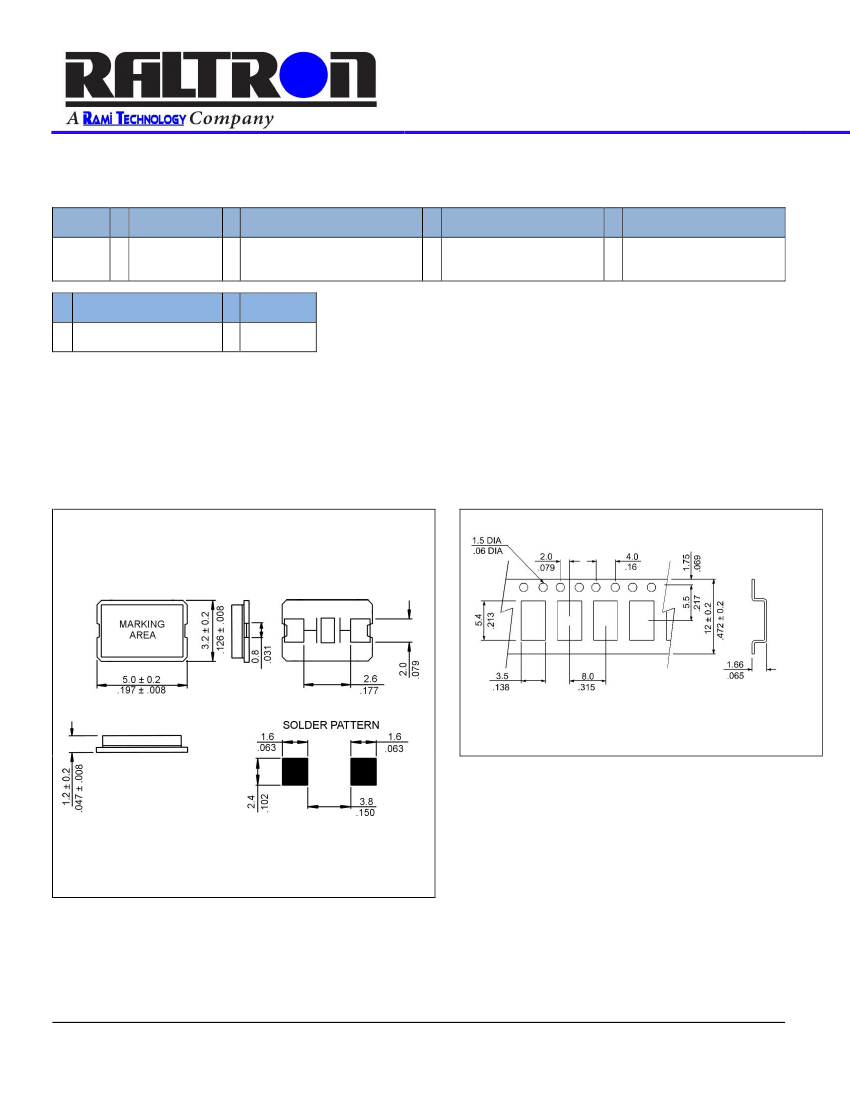

MECHANICAL SPECIFICATION
CARRIER TAPE DIMENSIONS
NOTE: REFER TO EIA-481 FOR NON-SPECIFIED DIMENSIONS
PACKAGING
180 mm REEL DIAMETER
12 mm TAPE WIDTH, 8 mm PITCH
QUANTITY: 1000 PIECES PER REEL
IN ACCORDANCE WITH EIA-481
R A L T R O N E L E C T R O N I C S
1 0 4 0 0 N .W . 3 3
rd
STREET
Miami, Florida 33172
U.S.A.
Telephone: 305-593-6033
Fax: 305-594-3973
e-mail: sales@raltron.com
web site: http://www.raltron.com
SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 3 of 3
SERIES H130A

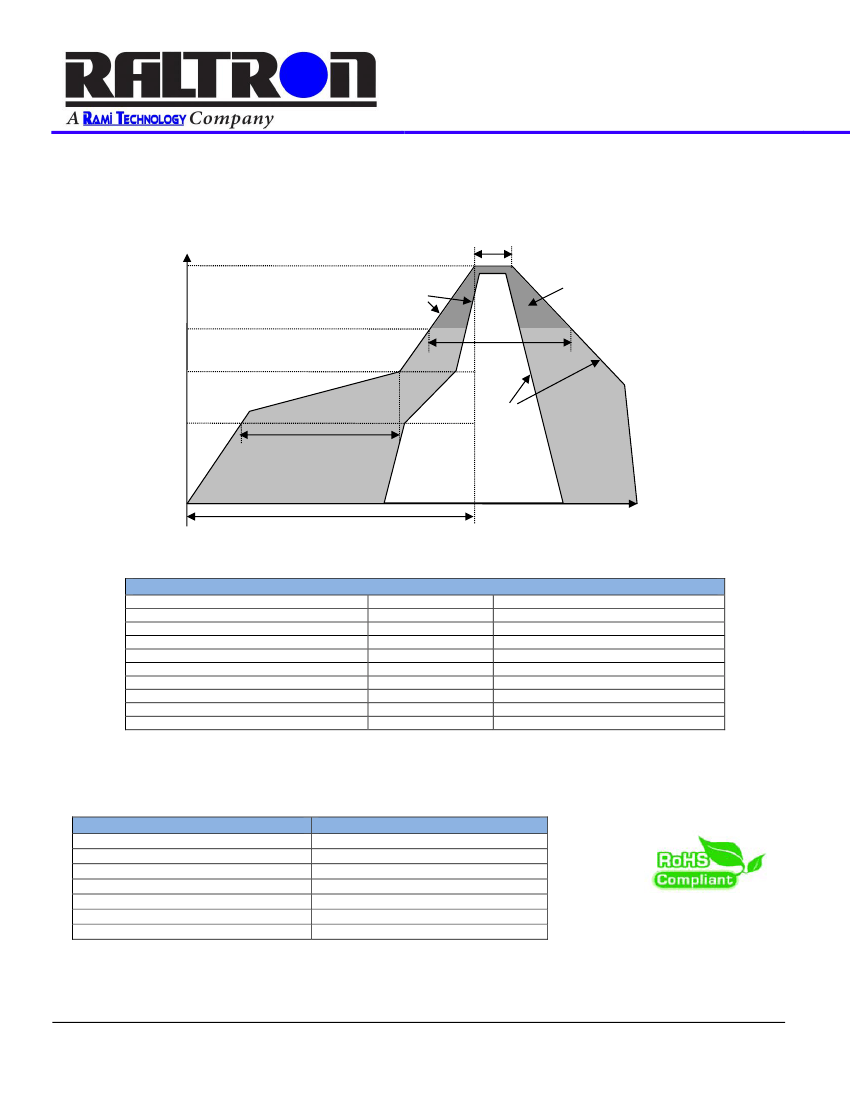

REFLOW PROFILE
t
P
T
P
Ramp-up
Critical Zone
T
L
to T
P
T
L
T
SMAX
Temp.
[°C]
T
SMIN
t
S
Preheat
t
L
Ramp-down
t[25°C] to Peak
Time [sec]
Reflow profile (Reference IPC/JEDEC J-STD-020)
Temperature Min Preheat
Temperature Max Preheat
Time (T
SMIN
to T
SMAX
)
Temperature
Peak Temperature
Ramp-up rate
Ramp-down rate
Time within 5°C of Peak Temperature
Time t[25°C] to Peak Temperature
Time
T
SMIN
T
SMAX
t
S
T
L
T
P
R
UP
R
DOWN
t
P
t[25°C] to Peak
t
L
150°C
200°C
60-180 sec.
217°C
260°C
3°C/sec max.
6°C/sec max.
10 sec.
480 sec.
60-150 sec.
ENVIRONMENTAL
PARAMETER
MOISTURE SENSITIVITY LEVEL
RoHS
REACH SVHC
HALOGEN-FREE
ESD CLASSIFICATION LEVEL
TERMINATION FINISH
UNIT WEIGHT (GRAMS)
VALUE
1
6/6 COMPLIANT & LEAD FREE
COMPLIANT
COMPLIANT
N/A
Au
0.051
