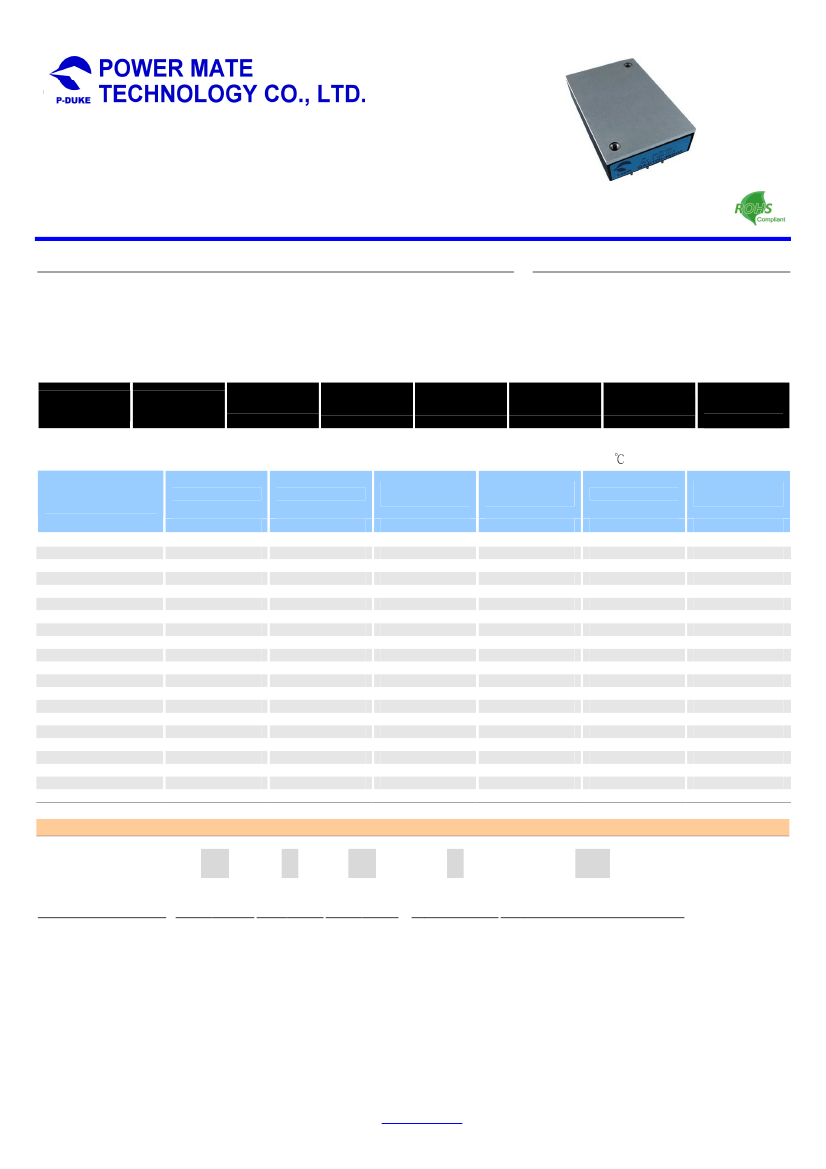

QAE100
QAE100 SERIES
QUARTER-BRICK DC-DC CONVERTER
2:1 ULTRA WIDE INPUT RANGE
UP TO 108Watts
FEATURES
•
NO MINIMUM LOAD REQUIRED
•
LOW STANDBY POWER CONSUMPTION
•
SOFT-START
•
2250VDC INPUT TO OUTPUT BASIC INSULATION
•
SAFETY MEETS UL60950-1, EN60950-1 AND IEC60950-1
•
CE MARK MEETS 2006/95/EC, 2011/95/EC and 2004/108/EC
•
COMPLIANT TO ROHS EU DIRECTIVE 2011/65/EU
APPLICATIONS
•
WIRELESS NETWORK
•
TELECOM/DATACOM
•
INDUSTRY CONTROL SYSTEM
•
DISTRIBUTED POWER ARCHITECTURES
•
SEMICONDUCTOR EQUIPMENT
2250VDC
ISOLATION
REMOTE
CONTROL
UVP
OCP
SCP
OVP
OTP
LOW
STANDBY
POWER
Model
Number
QAE100-12S3P3
QAE100-12S05
QAE100-12S12
QAE100-12S15
QAE100-12S24
QAE100-12S30
QAE100-12S48
QAE100-24S3P3
QAE100-24S05
QAE100-24S12
QAE100-24S15
QAE100-24S24
QAE100-24S30
QAE100-24S48
QAE100-48S3P3
QAE100-48S05
QAE100-48S12
QAE100-48S15
QAE100-48S24
QAE100-48S30
QAE100-48S48
Input Range
VDC
8.5 ~ 22
8.5 ~ 22
8.5 ~ 22
8.5 ~ 22
8.5 ~ 22
8.5 ~ 22
8.5 ~ 22
16.5 ~ 36
16.5 ~ 36
16.5 ~ 36
16.5 ~ 36
16.5 ~ 36
16.5 ~ 36
16.5 ~ 36
33 ~ 75
33 ~ 75
33 ~ 75
33 ~ 75
33 ~ 75
33 ~ 75
33 ~ 75
Output Voltage
VDC
3.3
5
12
15
24
30
48
3.3
5
12
15
24
30
48
3.3
5
12
15
24
30
48
Output Current
@Full Load
A
25
18
7.5
6
3.7
3
1.8
25
18
7.5
6
3.7
3
1.8
25
21
9
7
4.5
3.5
2.2
Input Current
@ No Load
mA
50
50
50
50
50
50
50
25
25
25
25
25
25
25
15
15
15
15
15
15
15
Efficiency
%
89
90
91
91
90
90
89
89
90
91
91
92
91
89
89
91
90
91
93
92
91
PART NUMBER STRUCTURE
QAE100 - 48
Series Name
Input
Voltage
(VDC)
12:8.5~22
24:16.5~36
48:33~75
S
Output
Quantity
S:Single
05
Output
Voltage
(VDC)
3P3:3.3
05:5
12:12
15:15
24:24
30:30
48:48
-
P
Ctrl and
Pin Options
:Negative
logic
P:Positive
logic
HS
Heat-sink
and Mounting Hole Tread Options
:NC
HS:H=0.24”
Horizontal, 7G-0029A-F
HS1:H=0.5”
Horizontal, 7G-0030A-F
HS2:H=0.24”
Vertical, 7G-0031A-F
HS3:H=0.5”
Vertical, 7G-0032A-F
(1)
TH:Through
hole (No thread)
(1) The module can’t equip Heat-sink with TH option.
Page 1 of 4
www.pduke.com
℃
TECHNICAL SPECIFICATION
All specifications are typical at nominal input, full load and 25
otherwise noted
Maximum
Capacitor Load
µF
75000
36000
6250
4000
1540
1000
380
75000
36000
6250
4000
1540
1000
380
75000
42000
7500
4600
1870
1160
460
2013/04/08
QAE100
INPUT SPECIFICATIONS
Parameter
Operating input voltage range
Conditions
12Vin(nom)
24Vin(nom)
48Vin(nom)
12Vin(nom)
24Vin(nom)
48Vin(nom)
12Vin(nom)
24Vin(nom)
48Vin(nom)
Power up
Remote ON/OFF
12Vin(nom)
24Vin(nom)
48Vin(nom)
Negative logic
DC-DC ON
(Standard)
DC-DC OFF
Positive logic
DC-DC ON
(Option)
DC-DC OFF
Input current of CTRL pin
Remote off input current
Min.
8.5
16.5
33
Typ.
12
24
48
Max.
Unit
VDC
Start-up voltage
Shutdown voltage
Start up time
Input surge voltage
Constant resistive load
1 second, max.
Input filter
(1)
Remote ON/OFF
Referenced to –INPUT pin
22
36
75
9
18
36
7.3
8.1
15.5
16.3
31.6
32.5
75
100
75
100
30
50
100
Pi type
Short or 0 ~ 1.2 VDC
Open or 3 ~ 12 VDC
Open or 3 ~ 12 VDC
Short or 0 ~ 1.2 VDC
-0.5
1
3
VDC
VDC
ms
VDC
mA
mA
OUTPUT SPECIFICATIONS
Parameter
Voltage accuracy
Line regulation
Load regulation
Voltage adjustability
Remote sense
Ripple and noise
Conditions
Low Line to High Line at Full Load
3.3 & 5Vout
Others
Maximum output deviation is inclusive of remote sense
% of Vout(nom). If remote sense is not being used, sense pins should
connect to the output pins with the same polarity.
Measured by 20MHz bandwidth
With a 22µF/25V X7R MLCC
3.3Vout, 5Vout
12Vout, 15Vout
With a 22µF/25V X7R MLCC
With a 4.7µF/50V X7R MLCC
24Vout, 30Vout
With a 2.2µF/100V X7R MLCC
48Vout
No Load to Full Load
25% load step change
% of Vout(nom); Hiccup mode
% of Iout rated; Hiccup mode
Min.
-1.0
-0.1
-0.2
-0.1
-20
Typ.
Max.
+1.0
+0.1
+0.2
+0.1
+10
10
Unit
%
%
%
%
%
75
100
200
300
-0.02
+0.02
mVp-p
GENERAL SPECIFICATIONS
Parameter
Isolation voltage
Isolation resistance
Isolation capacitance
Switching frequency
Design meet safety standard
Case material
Potting material
Dimensions
Weight
MTBF
1 minute (Basic insulation)
500VDC
Conditions
Input to Output
Input (Output) to Base-Plate
Min.
2250
2250
1
Typ.
Max.
Unit
VDC
BELLCORE TR-NWT-000332 Case 1: 50% Stress, Ta= 40 .
MIL-HDBK-217F Ta=25 , Full load (G/B, controlled environment)
G
1500
pF
270
300
330
kHz
IEC60950-1, UL60950-1, EN60950-1
Aluminum base-plate with plastic case
Silicon (UL94-V0)
2.28 X 1.45 X 0.50 Inch
(57.9×36.8×12.7 mm)
64g (2.26oz)
9.867 x 10
5
hrs
8.798 x 10
4
hrs
Page 2 of 4
www.pduke.com
2013/04/08
℃
Temperature coefficient
Transient response recovery time
Over voltage protection
Over load protection
Short circuit protection
%/
250
µs
115
130
%
110
140
%
Continuous, automatics recovery
℃
℃
QAE100
ENVIRONMENTAL SPECIFICATIONS
Parameter
Operating base-plate temperature
Over temperature protection
Storage temperature range
Thermal impedance
(2)
Vertical direction by natural
convection (20LFM)
Thermal shock
Vibration
Relative humidity
Conditions
Min.
-40
-55
Typ.
+110
Max.
+100
+125
Unit
MIL-STD-810F
MIL-STD-810F
5% to 95% RH
EMC SPECIFICATIONS
Parameter
EMI
(3)
Conditions
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Air ± 8kV
Contact ± 6kV
20 V/m
± 2kV
EN55024:±2kV
10 Vr.m.s
Level
Class B
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
Perf. Criteria A
ESD
Radiated immunity
Fast transient
(4)
Surge
(4)
Conducted immunity
Note:
1.
Input source impedance: The power modules will operate as specifications without external components, assuming that the source voltage has a
very low impedance and reasonable input voltage regulation. Highly inductive source impedances can affect the stability of the power module.
Since real-world voltage source has finite impedance, performance can be improved by adding external filter capacitor.
Recommended Nippon Chemi-con KY series, 100µF/100V.
The heat-sink is optional and P/N: 7G-0029A-F , 7G-0030A-F , 7G-0031A-F , 7G-0032A-F. Please refer to heat-sink selection guide.
The QAE100 series standard module meets EMI Class A or Class B only with external components. For more detail information, please contact
with P-DUKE.
An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5.
Recommended 2 pcs of aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V) to connect in parallel.
BASE-PLATE GROUNDING: When connect two screw bolts to shield plane, the EMI could be reduced.
2.
3.
4.
5.
CAUTION:
This power module is not internally fused. An input line fuse must always be used.

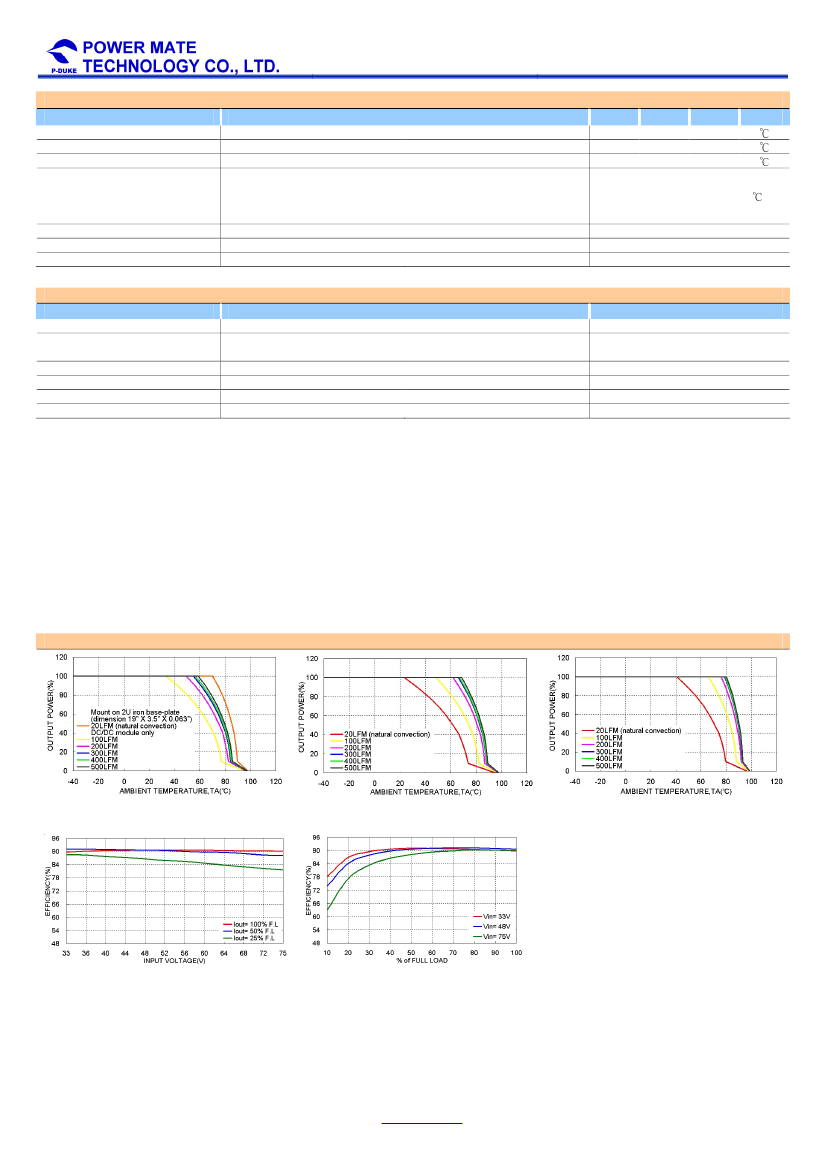

CHARACTERISTIC CURVE
QAE100-48S05 Derating Curve
QAE100-48S05 Derating Curve
With 0.24” Height Heat-sink
QAE100-48S05 Derating Curve
With 0.5” Height Heat-sink
QAE100-48S05 Efficiency VS Input Voltage
QAE100-48S05 Efficiency VS Output Load
Page 3 of 4
www.pduke.com
2013/04/08
℃
Without Heat-sink
Mount on 2U iron base-plate
With 0.24" Height Heat-sink
With 0.5" Height Heat-sink
9
2.8
7.1
5.5
℃
℃
℃
/W
QAE100

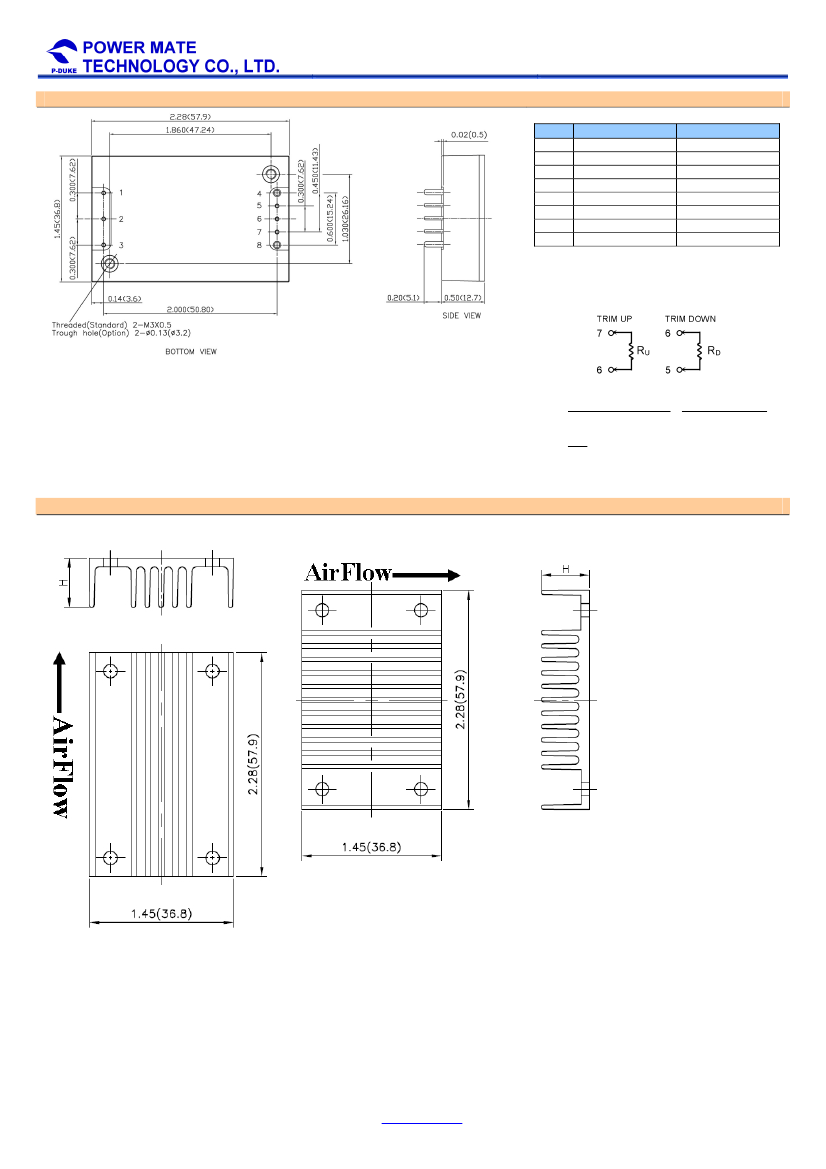

MECHANICAL DRAWING
PIN CONNECTION
PIN
1
2
3
4
5
6
7
8
DEFINE
- INPUT
CTRL
+ INPUT
- OUTPUT
- SENSE
TRIM
+ SENSE
+ OUTPUT
DIAMETER
0.04 Inch
0.04 Inch
0.04 Inch
0.06 Inch
0.04 Inch
0.04 Inch
0.04 Inch
0.06 Inch
EXTERNAL OUTPUT TRIMMING
Output can be externally trimmed by using the
method shown below.
1. All dimensions in inch (mm)
2. Tolerance :x.xx±0.02 (x.x±0.5)
x.xxx±0.01 (x.xx±0.25)
3. Pin pitch tolerance ±0.01 (0.25)
4. Pin dimension tolerance ±0.004(0.1)
5.11V
OUT
(
100
+
∆
%
) (
511
+
10.22
∆
%
)
R
U
=
−
k
1.225
∆
%
∆
%
511
−
10 .22
k
R
D
=
∆
%
HEAT-SINK TYPE OPTIONS
Vertical Fin Orientation, Suffix:-HS2, -HS3
Horizontal Fin Orientation, Suffix:-HS, -HS1
1. All dimensions in inch (mm)
2. Tolerance :x.xx±0.02 (x.x±0.5)
Page 4 of 4
www.pduke.com
2013/04/08
