200141FS043S604ZU datasheet, PDF

Datasheet> All Categories > The connector> The connector> 200141FS043S604ZU

200141FS043S604ZU: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size128KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric Compare View All

200141FS043S604ZU Overview

Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

200141FS043S604ZU Parametric

Parameter Name	Attribute value
Objectid	303887759
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PIN NO 20 BLANK
Board mount options	HOLE .086-.098
body width	0.154 inch
subject depth	0.283 inch
body length	2.421 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulator color	BLACK
Manufacturer's serial number	200141FS
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.087 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	44

Preview

Download Datasheet

View All

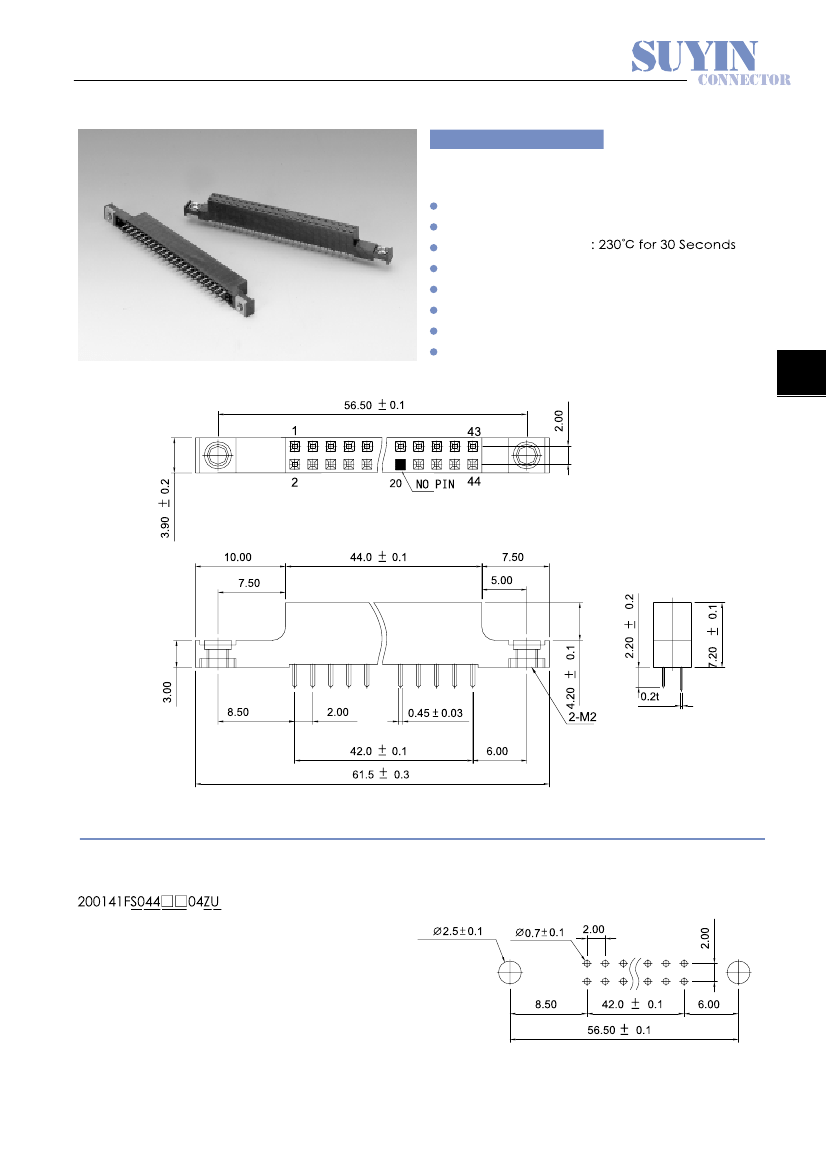

2.0mm DUAL ROW SOCKET

STRAIGHT PCB MOUNT TYPE

200141FS Series

Mates With 2.5” H.D.D. & SUYIN 200109 Series

Specifications:

44 Circuits

Insulator Material

Max Processing Temp.

Terminal Material

Plating

Max. Current Rating

Voltage Rating

Dielectric Strength

: Phosphor Bronze

: Selective Plated(Gold)

: 1.5A

: 150V AC

: 500V (Min. 60 Seconds)

2.0

: Black High Temp. Plastic

Order Information

1 2

Recommended P.C.B Layout

1. 'S'

Straight DIP Type

2. No. of Pins

3. Plating

4. Color 'Z'

Black

5. Package

'U'

Tube Package Without CAP

Reference Page 11

200141FS043S604ZU Related Products

	200141FS043S604ZU	200141FS043S104ZU	200141FS043S204ZU	200141FS043S304ZU	200141FS043S404ZU	200141FS043S504ZU
Description	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug
Objectid	303887759	303887754	303887755	303887756	303887757	303887758
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PIN NO 20 BLANK	PIN NO 20 BLANK	PIN NO 20 BLANK	PIN NO 20 BLANK	PIN NO 20 BLANK	PIN NO 20 BLANK
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.154 inch	0.154 inch	0.154 inch	0.154 inch	0.154 inch	0.154 inch
subject depth	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch	0.283 inch
body length	2.421 inch	2.421 inch	2.421 inch	2.421 inch	2.421 inch	2.421 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V	500VDC V
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
Manufacturer's serial number	200141FS	200141FS	200141FS	200141FS	200141FS	200141FS
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	50u inch	5u inch	FLASH inch	10u inch	15u inch	30u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.087 inch	0.087 inch	0.087 inch	0.087 inch	0.087 inch	0.087 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	44	44	44	44	44	44
