Semiconductor
SA5311 / SA5311(B)
LED Lamp
Features
•
Red Colored transparency lens type
• φ5mm(T-1
3/4
) all plastic mold type
•
High reliability and low power consumption
Outline Dimensions
STRAIGHT TYPE
5.0±
0.2
unit :
STOPPER TYPE
5.0±
0.2
mm
8.6±
0.2
0.8±
0.2
0.8±
0.2
8.6±
0.2
0.5
23.0 MIN
0.5
23.0 MIN
1.0MIN
2.54NOM
2.54NOM
1.0MIN
1
2
5.8±
0.2
1
2
5.8±
0.2
PIN Connections
1.Anode
2.Cathode
KLA-0009-000
1
SA5311 / SA5311(B)
Absolute maximum ratings
Characteristic
Power Dissipation
Forward Current
*
1
Peak Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Symbol
P
D
I
F
I
FP
V
R
T
opr
T
stg
Ratings
85
30
50
4
-25∼85
-30∼100
Unit
mW
mA
mA
V
℃
℃
260℃ for 5 seconds
*
2
Soldering Temperature
T
sol
*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package
Electrical Characteristics
Characteristic
Forward Voltage
Luminous Intensity
Peak Wavelength
Spectrum Bandwidth
Reverse Current
*
3
Half Angle
Symbol
V
F
I
V
Test Condition
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
=4V
I
F
= 20mA
Min
-
-
-
-
-
-
Typ
2.0
150
630
35
-
±11
Max
2.7
-
-
-
10
-
Unit
V
mcd
nm
nm
uA
deg
λ
P
Δ
λ
I
R
θ
1/2
*3.
θ
1/2
is the off-axis angle where the luminous intensity is
1/2
the peak intensity
KLA-0009-000
2
SA5311 / SA5311(B)

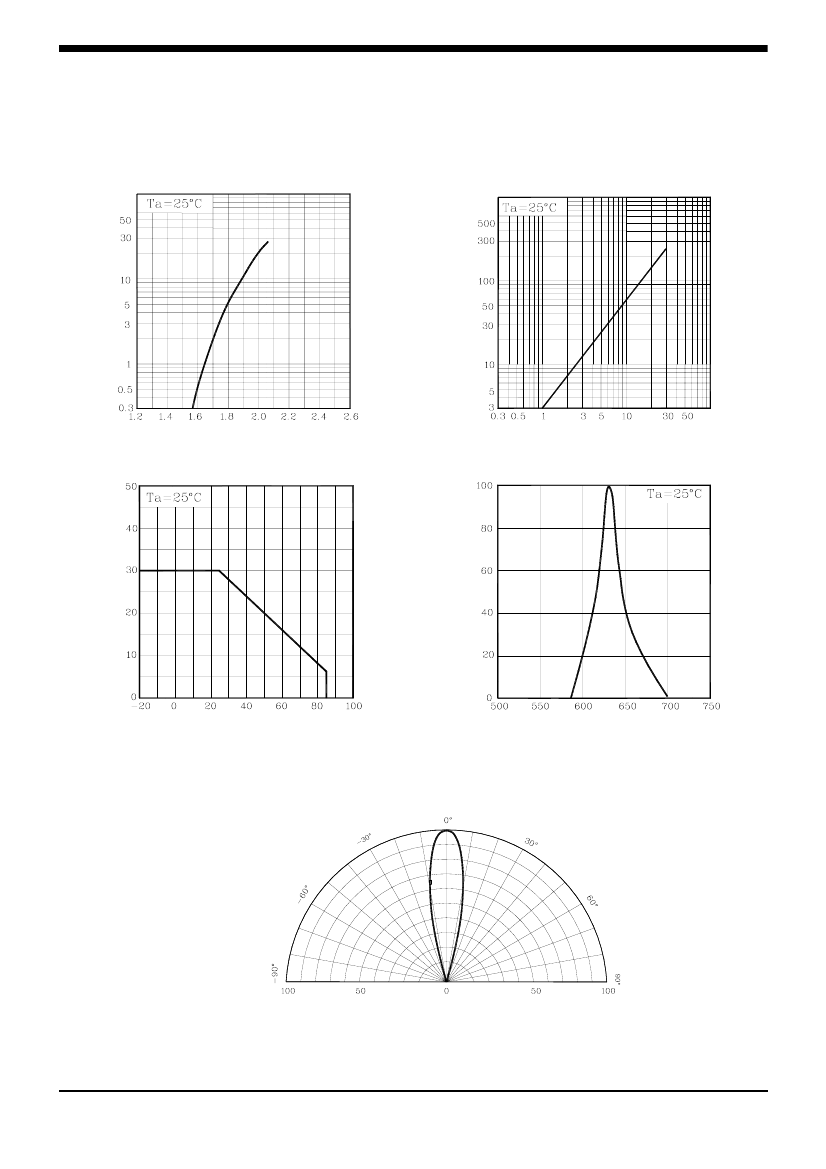

Characteristic Diagrams
Fig. 1 I
F
- V
F
Fig. 2 I
V
- I
F
Forward Current I
F
[mA]
Forward Voltage V
F
[V]
Luminous Intensity I
v
[mcd]
Forward
Current I
F
[mA]
Fig. 3 I
F
– Ta
Fig.4 Spectrum Distribution
Current I
F
[mA]
Forward
Ambient Temperature Ta [℃]
Relative Intensity [%]
Wavelength
λ
[nm]
Fig. 5 Radiation Diagram
Relative Luminous Intensity Iv [%]
KLA-0009-000
3
