Precision Ceramic
Ball Grid Arrays
Precision Ceramic
Ball Grid Arrays
Features
Ratio tolerances to ±0.05%
Absolute tolerances to ±0.1%
CHC-Precision Series
RoHS compliant terminations available
•
Ratio tolerances to ±0.05%
Superior TaNFilm® resistors on ceramic substrate
•
Absolute tolerances to ±0.1%
•
RoHS compliant terminations available
Same footprint as the industry standard SOIC-N package
CHC-Precision Series
•
Superior TaNFilm
®
resistors on ceramic substrate
•
Same footprint as the industry standard SOIC-N package
All Pb-free parts comply with EU Directive 2011/65/EU amended by (EU) 2015/863 (RoHS3)
IRC’s TaNFilm
®
ceramic Precision Ball Grid Array offers precision tolerances in a ceramic BGA package. In
addition, the TaNFilm
®
CHC Series provides all the unique qualities of our other TaNFilm
®
package
configurations.
Precise state-of-the-art laser trimming provides close tolerances and tight ratios. The TaNFilm
®
process
enables IRC to manufacture custom circuit configurations and multiple resistance values without sacrificing the
tightest tolerance and tracking characteristics of precision networks. The Tantalum Nitride resistor material is
self-passivating for environmental protection surpassing military requirements and guaranteeing exceptional
ratio stability.
For applications requiring a high degree of reliability, stability, accuracy and low noise, plus the advantages of
new resistor configurations, specify the IRC Precision Ceramic Ball Grid Arrays.
Electrical Data
Package
Power Rating at 70°C
Element
100mW
Network
400mW
-55°C to +150°C
16-Pad
100mW
800mW
50V
(not to exceed
√
PxR)
< -25dB
99.5%
Alumina
Temperature Range
Maximum Voltage
Noise
Substrate
Termination
8-Pad
Solder
plated over
nickel barrier
Manufacturing Capabilities
Resistance
Range
10Ω - 25Ω
25.1Ω - 50Ω
50.1Ω - 200Ω
201Ω - 100KΩ
Available
Absolute Tolerances
JGFDC
JGFDC
JGFDCB
JGFDCB
Available Ratio Tolerances
(Ratio to R1)
GFD
GFDC
GFDCB
GFDCBA
Best
Absolute TCR
±100ppm/°C
±50ppm/°C
±25ppm/°C
±25ppm/°C
Tracking TCR
(Track to R1)
±20ppm/°C
±10ppm/°C
±5ppm/°C
±5ppm/°C
General Note
IRC reserves the right to make changes in product specification without notice or liability.
General Note
All information is subject to IRC’s own data and is considered accurate at time of going to print.
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
TT Electronics reserves the right to make changes in product specification without notice or liability.
© IRC Advanced Film
to TT Electronics’ own data and is considered accurate at time of going to print.
All information is subject
Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
BI Technologies IRC Welwyn
of
A subsidiary
TT electronics plc
CHC-Precision Series Issue May 2009 Sheet 1 of 3
www.ttelectronics.com/resistors
© TT Electronics plc
10.21
Precision Ceramic
Precision Ceramic Ball Grid Arrays
Ball Grid Arrays
CHC-Precision Series

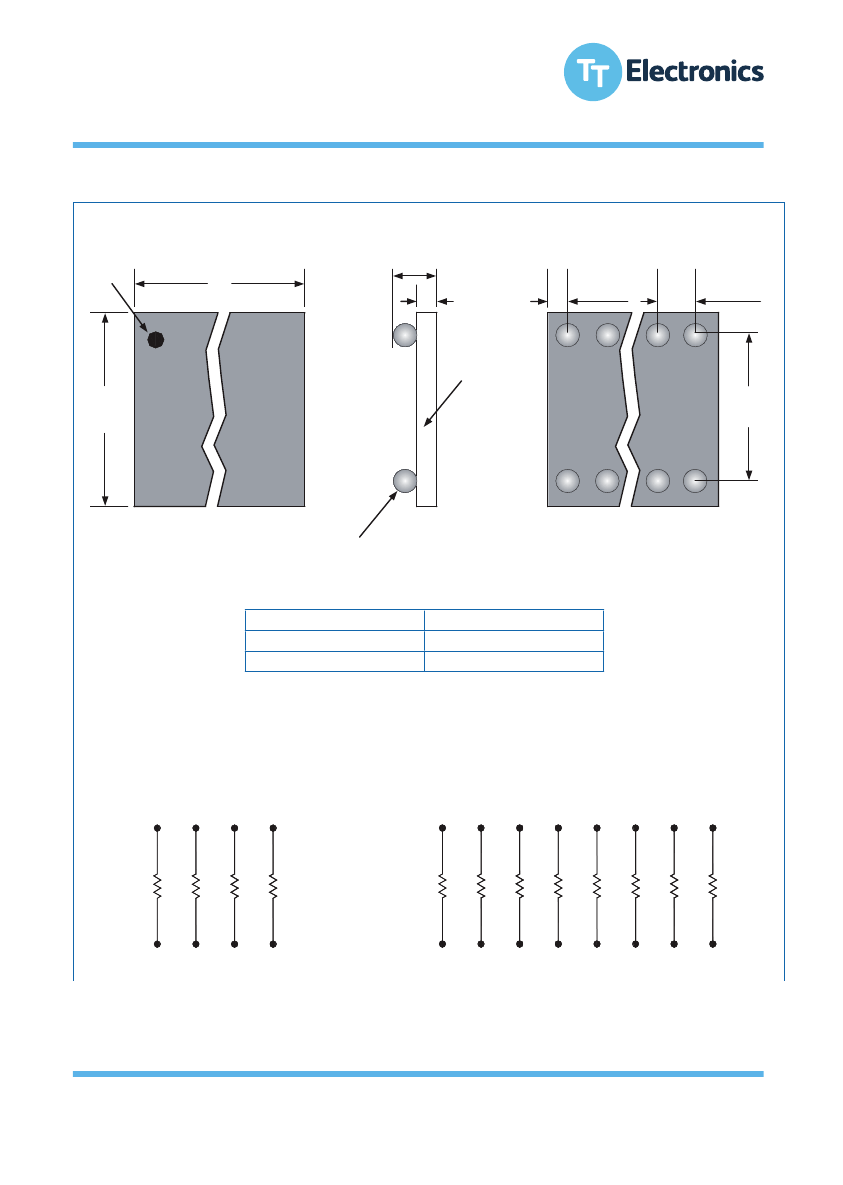

Physical and Schematic Data
(View from top)
0.058″
±0.005
A1
L
0.025″
±0.003
E*
99.6%
Alumina
Substrate
0.025″
±0.010
0.050″
±0.010
(View from bottom)
0.250″
±0.003
0.200″
±0.010
A
1
0.030″ ±0.002
10/90 Sn/Pb solder balls
2
N
Number of Columns N
4
8
Length L
0.200″ ±0.003
0.400″ ±0.003
Schematic CH4A
(View from top)
Schematic CH8A
(View from top)
*Rows B, C and D not populated
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
CHC-Precision Series Issue May 2009 Sheet 2 of 3
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
BI Technologies IRC Welwyn
www.ttelectronics.com/resistors
© TT Electronics plc
10.21
Precision Ceramic Ball Grid Arrays
Precision Ceramic
CHC-Precision Series
Ball Grid Arrays
Power Derating Curve
% Of Rated P ower
Typical
ΔR
±0.02%
100
Environmental Data
Environmental Test Per
MIL-PRF-83401
Thermal Shock And
Power Conditioning
Low Temperature
Operation
Short-time Overload
Maximum
ΔR
±0.1%
50
±0.05%
±0.02%
10
±0.05%
±0.02%
25°
70°
150°
Temperature in °C
Moisture Resistance
±0.1%
±0.03%
Ordering Data
Prefix
CHC -
CH8A
-
03
-
1002
-
B
B
Model
Shock
±0.1%
±0.03%
Vibration
±0.1%
±0.03%
CH4A = 8-pad with 10/90 Sn/Pb terminations
CH4ALF = 8-pad with RoHS compliant
SnAgCu terminations
CH8A = 16-pad with 10/90 Sn/Pb terminations
CH8ALF = 16-pad with RoHS compliant
SnAgCu terminations
Life
High Temperature
Exposure
Low Temperature
Storage
±0.1%
±0.03%
TCR Code
01 = ±100 ppm/°C Commercial Grade
02 = ±50 ppm/°C Commercial Grade
03 = ±25 ppm/°C Commercial Grade
±0.1%
±0.03%
Resistor Code
4-digit resistance code
Example: 1002 = 10KΩ; 49R9 = 49.9Ω
±0.05%
±0.01%
Absolute Tolerance Code
J = ±5%; G = ±2%; F = ±1%; D = ±0.5%; C = ±0.25%; B = ±0.1%
Optional R1 Ratio Tolerance Code
F = ±1%; D = ±0.5%; B = ±0.1%; A = ±0.05%
For additional information or to discuss your specific requirements.
please contact our Applications Team using the contact details below.
© IRC Advanced Film Division
• 4222 South Staples Street • Corpus Christi Texas 78411 USA
Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com
CHC-Precision Series Issue May 2009 Sheet 3 of 3
General Note
TT Electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
BI Technologies IRC Welwyn
www.ttelectronics.com/resistors
© TT Electronics plc
