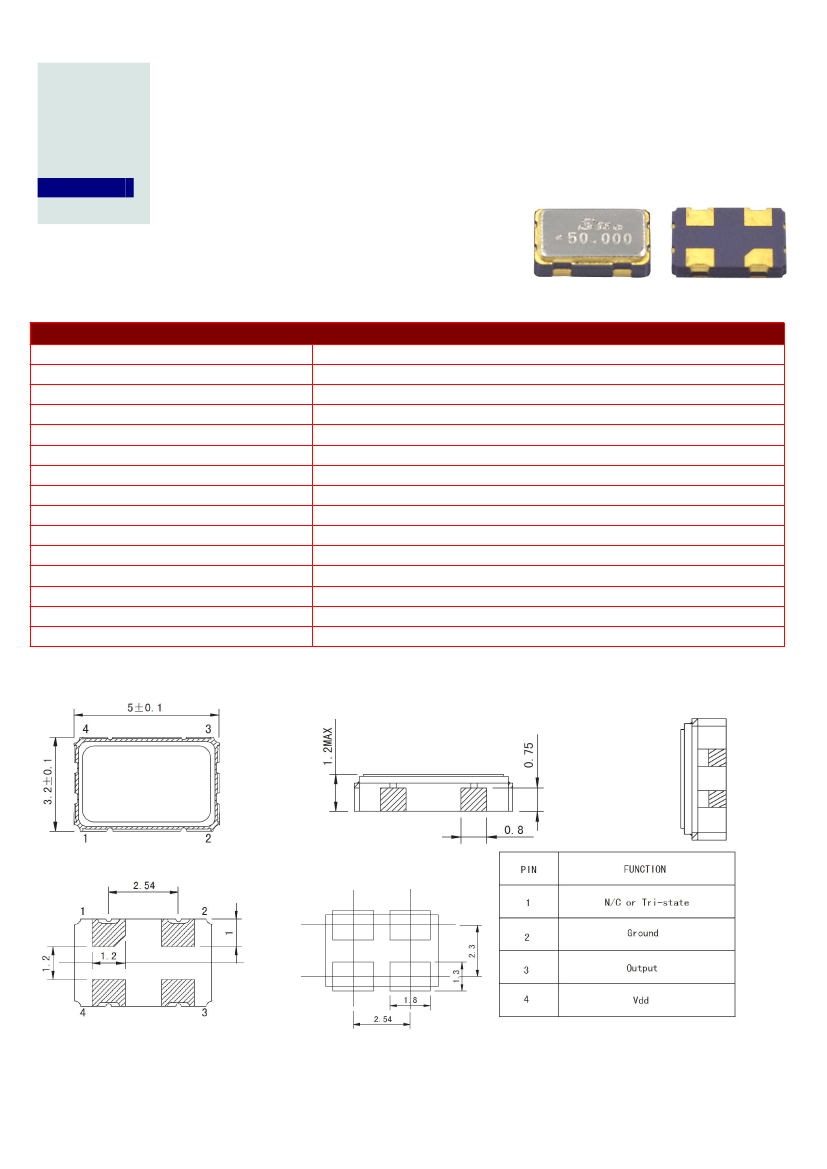

QUARTZ CRYSTAL –OSC5032
Suntan
®
TSQ-OSC5032
FEATURES
·Tight frequence tolerance.
·Low power standby mode.
·Reflow solder is possible.
·Lower noise and current with reduced power consumption
·Pb-free and RoHS/Green compliant
S
P
E
C
I
F
I
C
A
T
I
O
N
S
Holder Type
Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Symmetry（Duty Cycle）
Output Load
Frequency Stability
Current Consumption（15pf only）
(5.0V)
Current Consumption（15pf only）
( 1.8V 2.5V 2.85V 3.3V)
Rise/Fall Time
5.0x3.2mm SMD OSCILLATOR
32.768KHz, 1.000 MHz to 125.000 MHz
-10℃ - +60℃ to -40℃ - +85℃
-40℃ - +85℃/-55℃ - +125℃
5.0V or 3.3V
±10％
Std; 1.8V, 2.5V, 2.85V on custom-designed
40/60 Standard
10 TTL or 15pF HCMOS
±20ppm
to
±50ppm
1.000MHz - 35.999MHz=25mA max
36.000MHz - 69.999MHz=60mA max
70.000MHz - 100.000MHz=80mA max
1.000MHz - 35.999MHz=20mA max
36.000MHz - 69.999MHz=40mA max
70.000MHz - 125.000MHz=60mA max
5 nS max
Mechanical Dimensions：Unit: mm
Suggested solder pad layout
Note: Specifications are subject to change without notice. For more detail and update, please visit our website
Suntan
®
Technology Company Limited
Website: ww.suntan.com.hk
Email: info@suntan.com.hk
Tel: (852) 8202 8782
Fax: (852) 8208 6246
