Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: U-DFN4040-8
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper Leadframe (Lead-Free Plating);
Solderable per MIL-STD-202, Method 208
e4
Terminal Connections: See Diagram
Weight: 0.031 grams
ADVANCED INFORMATION
ADVANCED INFORMATION
Applications
Wireless Charging
AC-DC Rectification
Optimized for Power Management Applications
for Portable Products
U-DFN4040-8
V
OUT
D1
L1_1
D2
L1_2
V
OUT
L1_2
V
OUT
V
OUT
L1_1
L1_2
Q1
Q2
GND2
GND2
L1_1
GND1
GND1
GND1
GND2

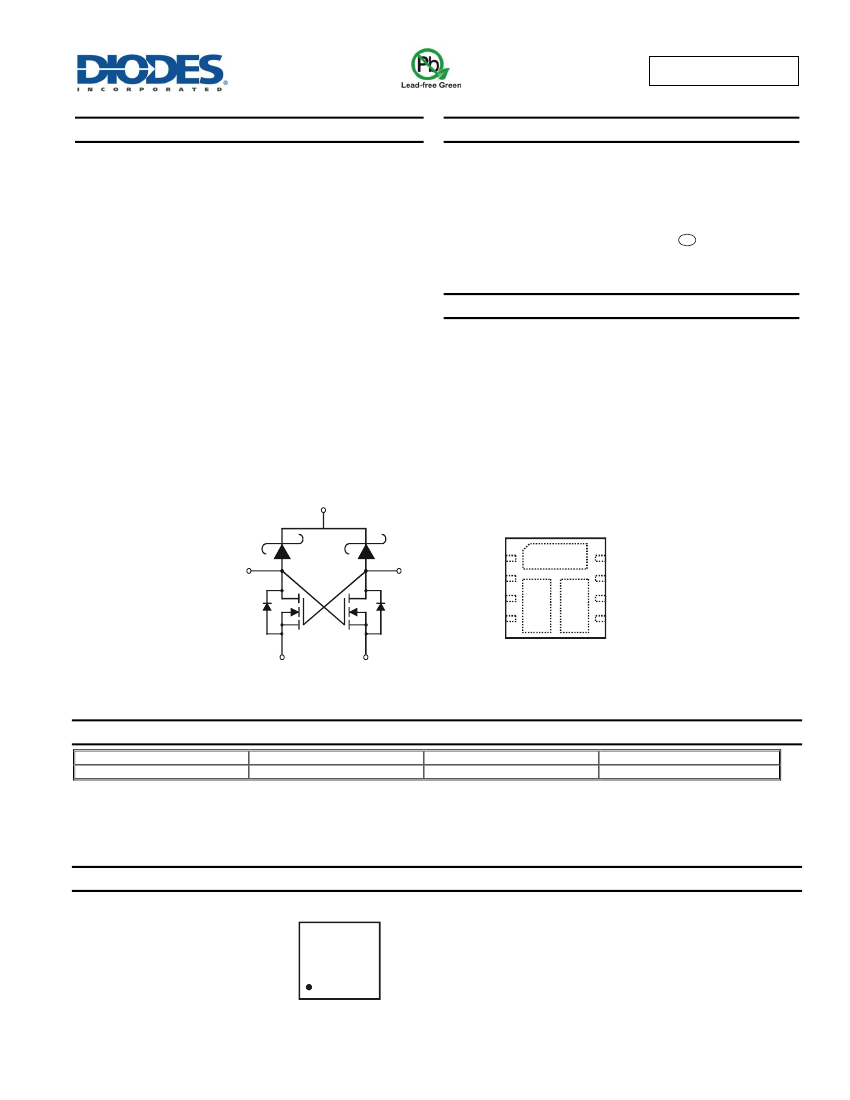

Device Schematic (Dual Channel)
Top View
Pin Configuration
Ordering Information
(Note 4)
Part Number
DFBR030U3LP-13
Notes:
Compliance
Standard
Case
U-DFN4040-8
Packaging
4,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
U-DFN4040-8
FB302
YYWW
FB302 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 15 for 2015)
WW = Week Code (01 to 53)
SBR is a registered trademark of Diodes Incorporated.
