LED-CONVERTER UNIT
PS-LD0301-031(S)
DESCRIPTION :
This low profile LED-Converter is developed for max. 3 LED-lines
Optimized for
AUO: G150XG01 V.2 19.Nov. 08
APPLICABLE:
1~3 LED lines (Serial Mode)
Pout
max. 7W
LED Voltage max. 30Vdc
Lamp Current max. 80mAdc
FEATURES :
Internal Open LED Detection for every Line
Voltage or ext. PWM Dimming
1000:1 dimming ratio with external PWM
Remote ON / OFF
Wide Input Voltage Range
RoHS compliant (S)
TEMPERATURE & HUMIDITY :
Operating Temperature Range
Storage Temperature Range
Humidity
(PRELIMINARY INFORMATION)
-10°C ~ +65°C
-20°C ~ +85°C
95 %RH max

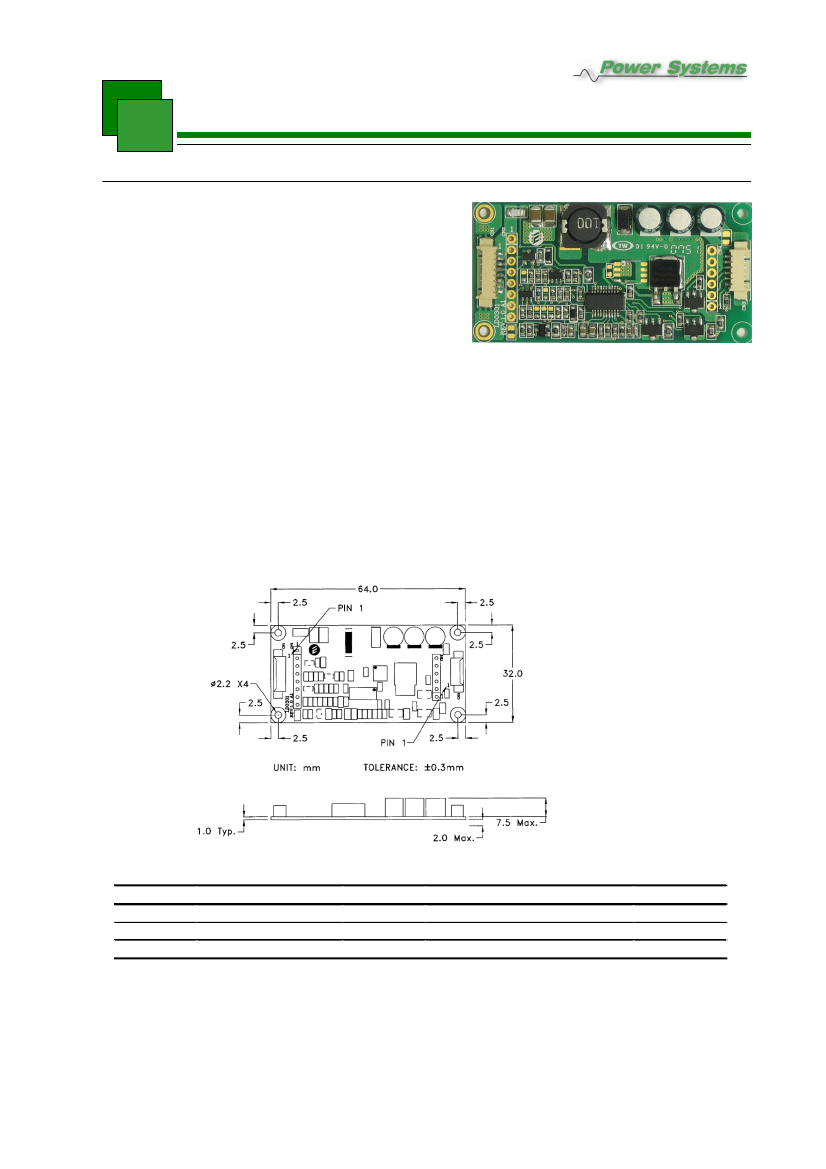

DIMENSIONS :
LxWxH
64 x 32 x 6.5 mm
Weight :8 (g) typ.
Components
No.
1
2
3
Part Description
PCB
Connector CN1
Connector CN3
Qty.
1
1
1
Material
UL94V-0 (FR-4 or CEM-3)
53261-0890 / PBD
53261-0690 / PBD
Note
t=1.0mm
Molex
Molex
Power Systems – The Power Solution
Web:
Email:
www.Power-Systems.de
Info@Power-Systems.de
Page (1)
Address: Hauptstr. 48 ; 74360 Ilsfeld-Auenstein / Germany
Tel. :
+ 49 / 70 62 / 67 59 - 6
Fax:
+ 49 / 70 62 / 67 59 - 800
Version 1.0, 17th April 2009
All specifications are subject to change without notice.
LED-CONVERTER UNIT
PS-LD0301-031(S)
Input side CN1:
Pin No.
Symbols
Ratings
Vin
4.75 ~ 13.2 Vdc
CN 1-1
Vin
4.75 ~ 13.2 Vdc
CN 1-2
Vrm t
0 ~ 1.5 = OFF / 2.5 ~ Vin = ON
CN 1-3
Ext. PWM 0 ~ 0.5 = LOW / 2.5 ~ 5 = HIGH
CN 1-4
Vbr
0.0 ~ 5.0 (5V=low brightnes s )
CN 1-5
GND
-
CN 1-6
GND
-
CN 1-7
GND
-
CN 1-8
ELECTRICAL CHARACTERISTICS :
(PRELIMINARY INFORMATION)
Output side
Pin No.
CN 3-1
CN 3-2
CN 3-3
CN 3-4
CN 3-5
CN 3-6
CN3:
Symbols
RTN1(-)
RTN2(-)
RTN3(-)
Vhigh(+)
Vhigh(+)
Vhigh(+)
Ratings
LED LINE 1 RETURN
LED LINE 2 RETURN
LED LINE 3 RETURN
30Vdc (80m Arm s )
30Vdc (80m Arm s )
30Vdc (80m Arm s )
Conditions
Parameters
Output Current
Output Current
Input Current
Open Load Shutdown
PW M Frequency
Output Power
Output Power
Output Power
Output Power
Note 1 :
Note 2 :
Note 3 :
Specification
Min.
TBD
-
TBD
-
150
TBD
TBD
TBD
TBD
Typ.
80
10
1.0
28
-
TBD
TBD
TBD
TBD
Max.
TBD
-
TBD
-
300
TBD
TBD
TBD
TBD
Unit
m Adc
%
Adc
Vdc
Hz
Watt
Watt
Watt
Watt
Note
Dut y 100 % max current
,
d uty cycle
*B y 12V d c
Symbols
Iout
Im in
Iin
Vbias
f(PWM)
Pout
Pout
Pout
Pout
Vin (V)
4.75
4.75
4.75
4.75
4.75
4.75
4.75
4.75
4.75
~ 13.2
~ 13.2
~ 13.2
~ 13.2
~ 13.2
~ 13.2
~ 13.2
~ 13.2
~ 13.2
Vbr (V) Tu (°C)
0
5
0
0
0
0
0
0
0
-10~+65
-10~+65
-10~+65
-10~+65
-10~+65
-10~+65
-10~+65
-10~+65
-10~+65
Tu: -20~+50 degC
Tu: -20~+70 degC
For o ne line
For o ne line
Do not use analog dimming function and external PWM for dimming at the same time.
Pin terminal style converters have Molex connectors mounted.
External PWM-signal is Low active.

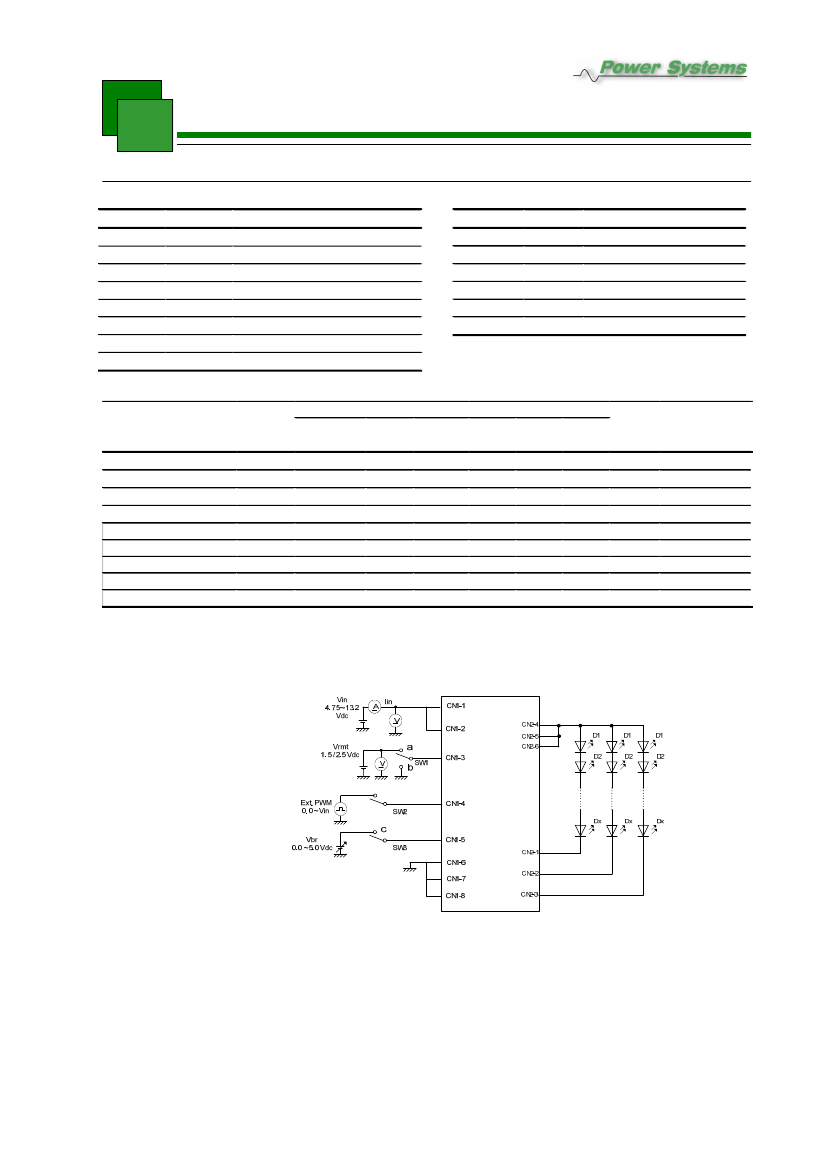

TEST CIRCUIT :
Connect Vbr to Ground while
using ext. PWM dimming.
CABLES :
For input:
For output:
500 mm, stripped and tinned ends, order key < input cable # 13>
<Adapter
cable 3> with 300mm length or <Adapter cable 6> with 90mm length
