100202590001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 100202590001

Preview

100202590001: DescriptionBoard Stacking Connector; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet View All

100202590001 Overview

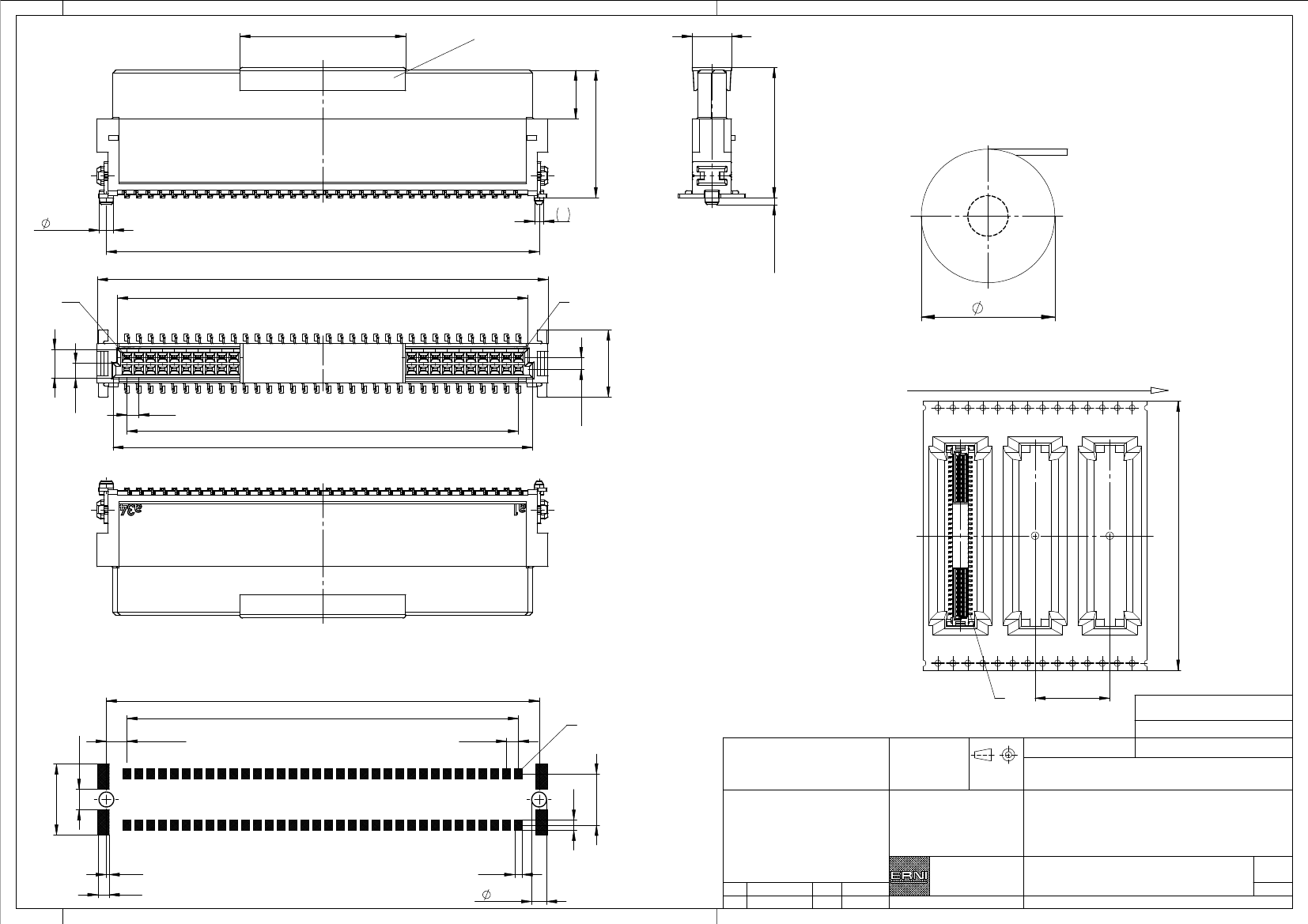

Board Stacking Connector

Preview

Download Datasheet

View All

17,76

Ansaughaube

4,2

hood

Verpackt im Gurt nach DIN IEC 60286-3

5,2

Tape on Reel Packaging according to DIN IEC 60286-3

Verpackungseinheit: 170 Stück

13,65

13,95

Packaging unit: 170 pcs

46,33

±0,03

48,26

a34

43,93

0,75

-0,05

1,5

-0,03

330

3,05

7,2

Abspulrichtung -

Reel off Direction

1,55

1,27

33 x 1,27 = 41,91

44,93

1,27

Anforderungsstufe 1

1,27

Proprietary notice pursuant to ISO 16016 to be observed.

Performance Level 1

Kontaktbereich vergoldet

Mating Area gold plating

Anschlussbereich verzinnt 4-6µm

Terminal Area 4-6µm tin plating

Leiterplatten-Layout Vorschlag für SMT

Koplanarität der Anschlüsse

≤

0,1mm

Coplanarity Area of Termination

≤

0,1mm

BA 7-23 - hohe Bauhöhe

PCB-Layout Proposal for SMT

46,33

±0,03

33 x 1,27 = 41,91

2,21

±0,03

2,2

type 7-23 - high profile

Information:

Tolerances

All Dimensions

in mm

Scale

3:1

7,6

5,5

1,1

0,3

1,2

0,8

1,6

-0,03

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

04.11.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federl. SMC-B 68-SMD-BA7-23

Female SMC-B 68-SMT-type7-23

www.ERNI.com

Class

100202590001

SMCB
