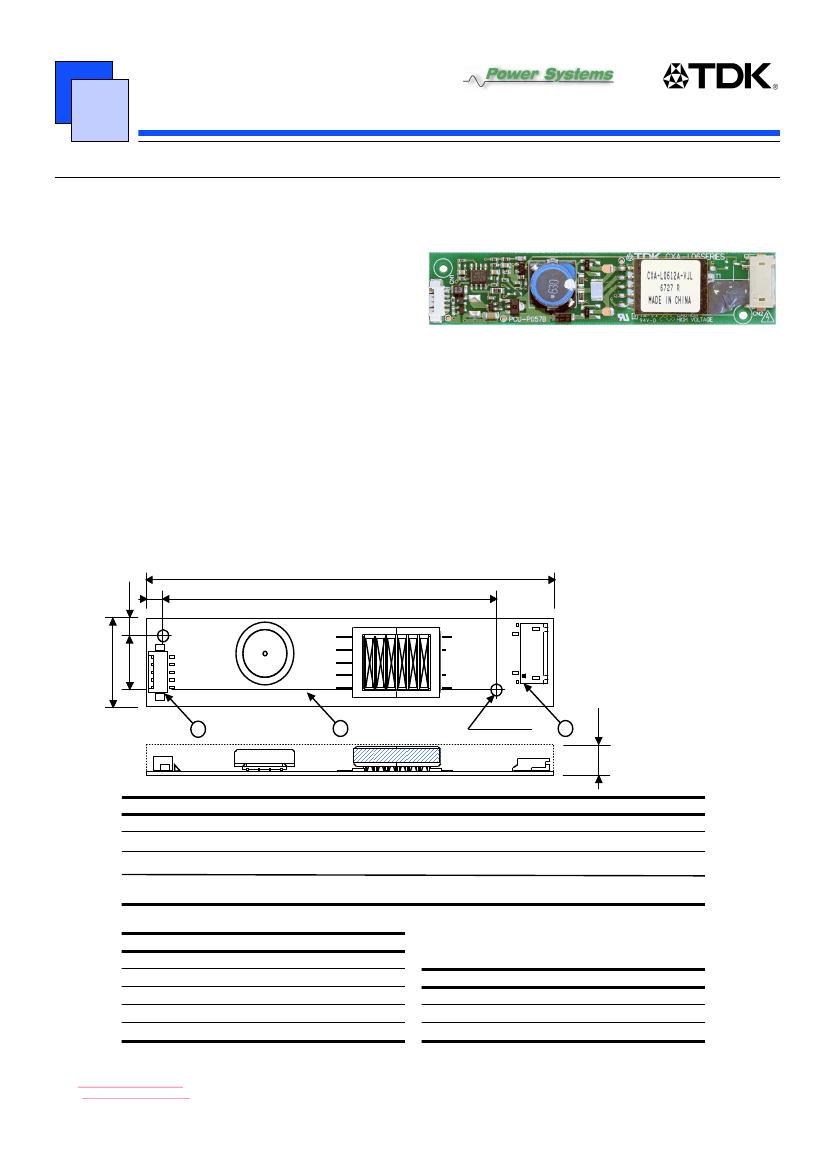

DC-AC INVERTER UNIT

PS-L0612A-177(R) SERIES (5.0W SINGLE OUTPUT WITH DIMMING FUNCTION)

DESCRIPTION :

This DC to AC Inverter was developed for many other low LCD Backlight power supply as low profile applications.

Optimized for

Kyocera: TCG057QV1AA and KCG057QV1CA and KCG057QV1DB

APPLICABLE LCD:

10 to 15 inches single lamp type

Lamp Voltage

680V

Lamp Current

4mA

Lamp Start Up Voltage 1700Vrms (Vin : 12V)

FEATURES :

Current Feedback Circuit

High Efficiency

Low noise with voltage resonant circuit

Regulated output current

Extern PWM Dimming with min. 40%

RoHS compliant (R)

TEMPERATURE & HUMDITY :

Operating Temperature Range

Storage Temperature Range

Humidity

95 %RH max

DIMENSIONS :

LxWxH

100 x 20 x 8 mm

95.5 max

(4.5)

(4)

82±0.2

-10

°C

~ +70°C

-30

°C

~ +85°C

12.8±0.2

20 max

CN1

CN2

8 max

2-φ2.2

Unit : mm

Weight : 14.5 (g) typ.

No.

Part Discription Qty.

PWB

Connector CN1 1

Connector CN2

Note

UL94V-0 t=1mm

53261-0510

(Molex)

SM02(8.0)B-BHS

(JST)

Item

CN1 : 53261-0510 (Molex)

CN1-1

CN1-2

CN1-3

CN1-4

CN1-5

Symbol

Vin

GND

Vrmt

Vbr

N.C.

Note

9.6 ~ 14.4 Vdc

0 Vdc

(250 Hz PWM)

0 ~3 Vdc

PS-L0612A-177

CN2 : SM02(8.0)B-BHS (JST)

Symbol

Note

CN2-1

Vhigh

680Vrms (2~4mArms)

CN2-2

N.C.

CN2-3

Vlow

(2V)

Power Systems – The Power Solution

Web:www.Power-Systems.de

Email:Info@Power-Systems.de

All specification are subject to change without notice.

Page ( 1 / 2 )

Address: Hauptstraße 48 ; 74360 Ilsfeld-Auenstein / Germany

Tel. :

+ 49 / 70 62 / 67 59 - 6

Fax:

+ 49 / 70 62 / 67 59 - 800

Version 1.2.1 26th March 2009
