Low Power 1 Watts RF Load Up To 65 GHz With
1.85mm Male Input Passivated Stainless Steel
TECHNICAL DATA SHEET
Configuration
Connector
Heat Sink
Connection Method
Body Style
1.85mm Male
Passivated Stainless Steel
Standard
Straight
PE6235
Electrical Specifications
(Values at 25°C, sea level)
Description
Frequency Range
Impedance
VSWR
Input Power
.
Minimum
DC
Typical
Maximum
65
50
1.45:1
1
Units
GHz
Ohms
Watts
Specifications by Frequency
Description
Range
VSWR
.
F1
DC to 18
1.2:1
F2
18 to 40
1.3:1
F3
40 to 65
1.45:1
F4
F5
Units
GHz
Mechanical Specifications
Temperature
Operating Range
Size
Length
Width/Dia.
.
-55 to +100 deg C
0.61 in [15.49 mm]
0.31 in [7.87 mm]
Connector
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Hex Size
Torque
Body Material and Plating
1.85mm Male
Beryllium Copper, Gold
MIL-PRF-39012
Passivated Stainless Steel
5/16 Inch
8 in-lbs [0.9 Nm]
Passivated Stainless Steel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Power 1 Watts RF Load Up To 65 GHz With 1.85mm Male Input Passivated Stainless
Steel PE6235
PE6235 REV 1.0
1
Low Power 1 Watts RF Load Up To 65 GHz With
1.85mm Male Input Passivated Stainless Steel
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
PE6235

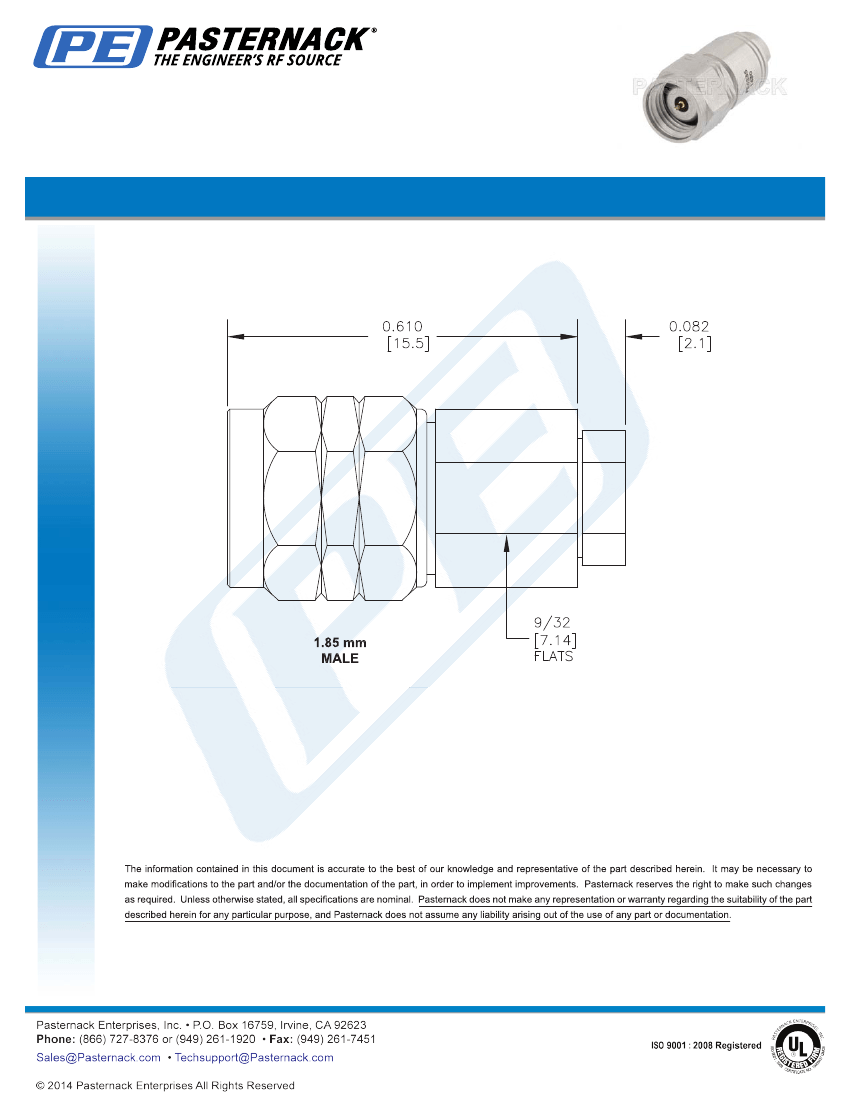

Outline Drawing
Low Power 1 Watts RF Load Up To 65 GHz With 1.85mm Male Input Passivated Stainless Steel from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Power 1 Watts RF Load Up To 65 GHz With 1.85mm Male Input Passivated Stainless Steel
PE6235
URL:
http://www.pasternack.com/1-watts-1.85mm-male-rf-load-up-to-65-ghz-pe6235-p.aspx
PE6235 REV 1.0
2
