42 dB Gain, 25 Watt P1dB, 860 MHz to 960 MHz, High
Power High Gain Amplifier, 58 dBm IP3, 3.5 dB NF, SMA
TECHNICAL DATA SHEET
PE15A5039
The PE15A5039 is a 25 W minimum high gain power coaxial amplifier operating in the 860 to 960 MHz frequency range. This
class AB design is highly efficient with good linearity. The amplifier offers 25 Watts TYP of P1dB power, 42 dB typical small
signal gain with gain flatness of ±1.5 dB max, and an output IP3 of +58 dBm typ. The amplifier requires typically a +12V DC
power supply. The connectorized SMA module is unconditionally stable and operates over the temperature range of -20°C
and +65°C.
Features
•
•
•
•
860 to 960 MHz Frequency Range
Psat 25 Watts typ
Small Signal Gain: 42 dB typ
Gain Flatness ±1.0 dB typ
•
50 Ohms Input and Output Matched
•
Unconditionally Stable
•
Regulated Supply
Applications
•
Military Radio
•
Communication Systems
•
High Gain Driver Power Amplifier
•
High Gain Output Power Amplifier
Electrical Specifications
(TA = +25°C, DC Voltage = 12Volts, DC Current = 6,500mA)
Description
Frequency Range
Small Signal Gain
Gain Flatness
Gain Variation at OTR*
Output Power at 1 dB Compression Point
Output 3rd Intercept Point
Noise Figure
Spurious
Input VSWR
Output VSWR
Operating DC Voltage
Operating DC Current
Quiescent Current
.
11.5
1.5:1
1.5:1
12
6,500
2,200
+43
+53
Minimum
860
39
Typical
42
±1
±2
+44
+58
3.5
Maximum
960
45
±1.5
Units
MHz
dB
dB
dB
dBm
dBm
5
-60
1.8:1
1.8:1
13
7,500
dB
dBc
Volts
mA
mA
*OTR= Base Plate Operating Temperature Range
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
42 dB Gain, 25 Watt P1dB, 860 MHz to 960 MHz, High Power High Gain Amplifier, 58 dBm
IP3, 3.5 dB NF, SMA
PE15A5039
PE15A5039 REV 1.0
1
42 dB Gain, 25 Watt P1dB, 860 MHz to 960 MHz, High
Power High Gain Amplifier, 58 dBm IP3, 3.5 dB NF, SMA
TECHNICAL DATA SHEET
Absolute Maximum Rating
Parameter
Source Voltage
RF input Power
Maximum Load VSWR
Operating Temperature (base-plate)
Storage Temperature
PE15A5039
Rating
+13
+15
3:1
-40 to +71
-55 to +125
Units
Volts
dBm
°C
°C
ESD Sensitive Material,
Transport material in
Approved ESD bags.
Handle only in approved
ESD Workstation.
.
Mechanical Specifications
Size
Length
Width
Height
.
5 in [127 mm]
3 in [76.2 mm]
0.85 in [21.59 mm]
SMA Female
SMA Female
HEATSINK REQUIRED use PE15C5013 or
PE15C5013F
Input Connector
Output Connector
Cooling
Environmental Specifications
..
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
•
ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
•
Heat Sink Required for Proper Operation, Unit is cooled by conduction to heat sink.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
42 dB Gain, 25 Watt P1dB, 860 MHz to 960 MHz, High Power High Gain Amplifier, 58 dBm
IP3, 3.5 dB NF, SMA
PE15A5039
PE15A5039 REV 1.0
2
42 dB Gain, 25 Watt P1dB, 860 MHz to 960 MHz, High
Power High Gain Amplifier, 58 dBm IP3, 3.5 dB NF, SMA
TECHNICAL DATA SHEET

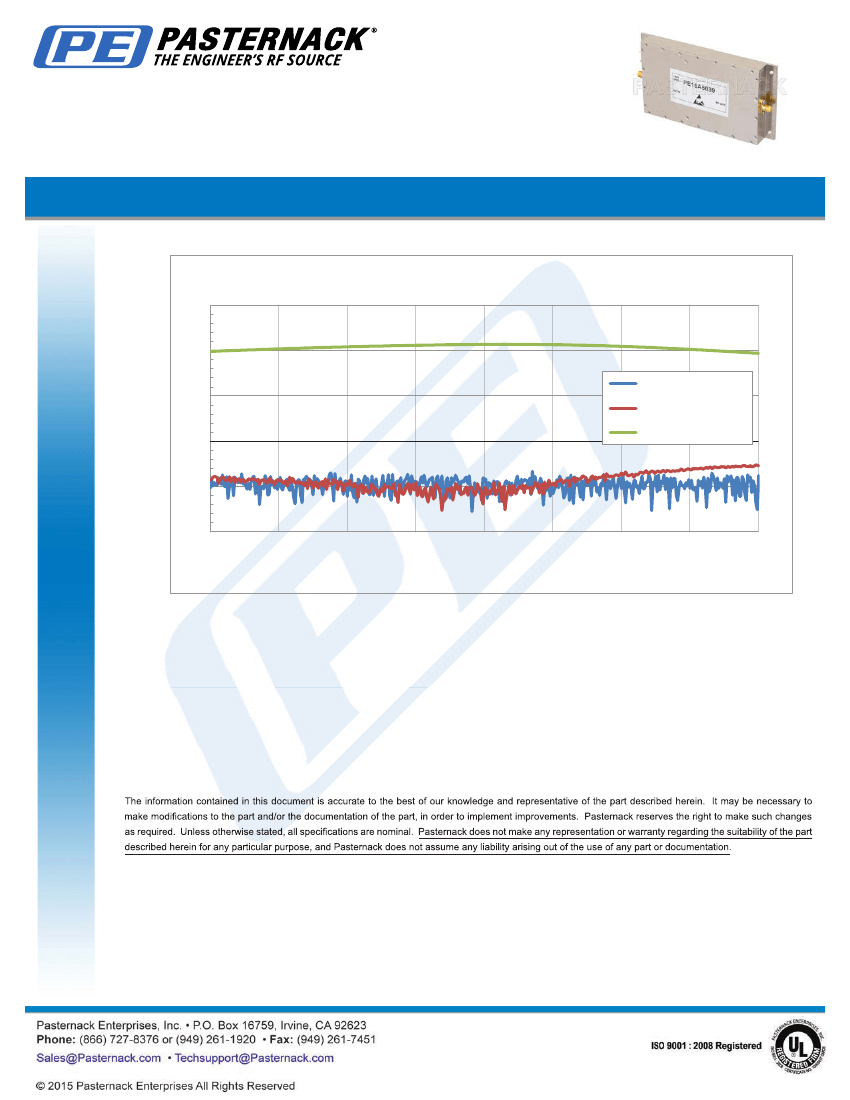

Typical Performance Data
PE15A5039
dB
60
40
20
0
-20
-40
800
825
850
Gain and Return Loss
Output Return Loss
Input Return Loss
Gain
875
900
Freq.(MHz)
925
950
975
1,000
42 dB Gain, 25 Watt P1dB, 860 MHz to 960 MHz, High Power High Gain Amplifier, 58 dBm IP3, 3.5 dB NF, SMA from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
42 dB Gain, 25 Watt P1dB, 860 MHz to 960 MHz, High Power High Gain Amplifier, 58 dBm IP3,
3.5 dB NF, SMA
PE15A5039
URL:
http://www.pasternack.com/42-db-gain-960-mhz-high-power-high-gain-amplifier-ip3-sma-pe15a5039-p.aspx
PE15A5039 REV 1.0
3
42 dB Gain, 25 Watt P1dB, 860 MHz to 960 MHz, High Power
High Gain Amplifier, 58 dBm IP3, 3.5 dB NF, SMA
PE15A5039

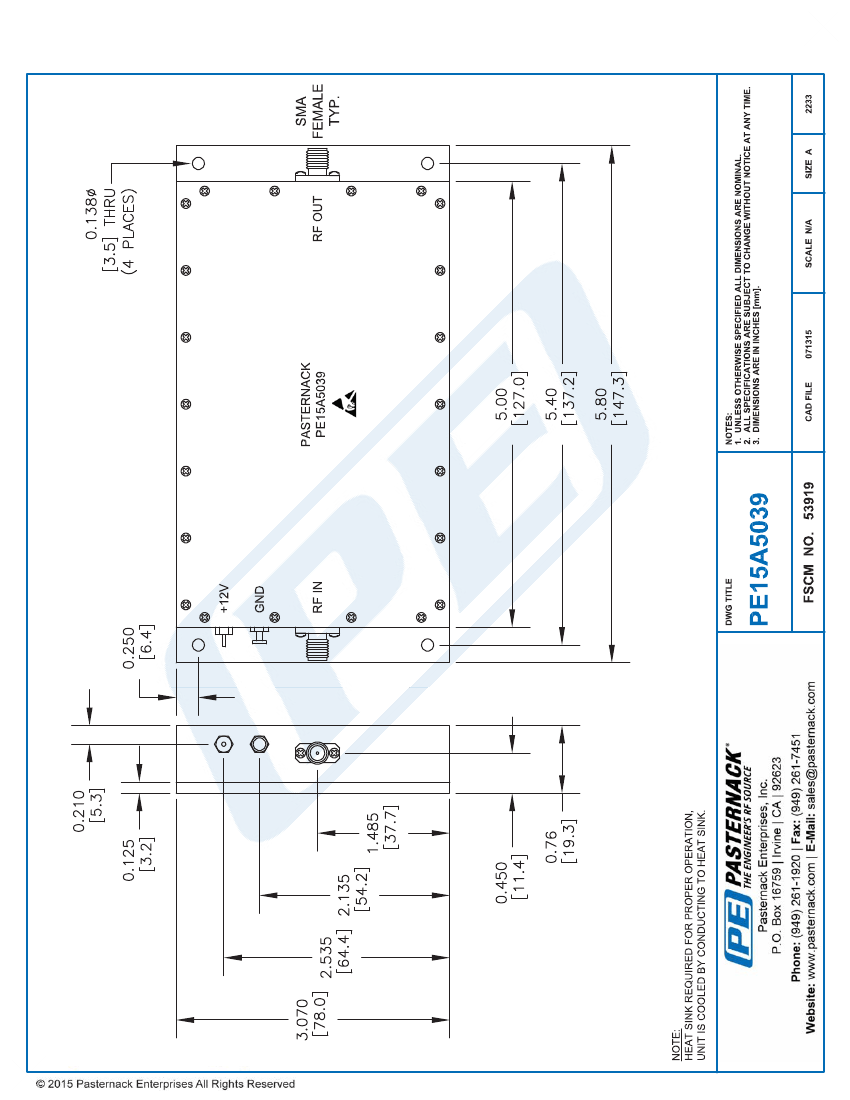

CAD Drawing
PE15A5039 REV 1.0
4
