42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High
Power High Gain Amplifier, 55 dBm IP3, 3.5 dB NF, SMA
TECHNICAL DATA SHEET
PE15A5042
The PE15A5042 is a 10 W minimum high gain power coaxial amplifier operating in the 860 to 960 MHz frequency range.
The amplifier offers 10 Watts min of P1dB power and a high 42 dB typical small signal gain with the gain flatness of ±1.5 dB
max. The amplifier requires typically a +12V DC power supply. The connectorized SMA module is unconditionally stable and
operates over the temperature range of -30°C and +70°C.
Features
•
•
•
•
860 to 960 MHz Frequency Range
P1dB 10 Watts min
Small Signal Gain: 42 dB typ
Gain Flatness ±1.5 dB max
•
50 Ohms Input and Output Matched
•
Unconditionally Stable
•
Regulated Supply
Applications
•
Military Radio
•
Communication Systems
•
High Gain Driver Power Amplifier
•
High Gain Output Power Amplifier
Electrical Specifications
(TA = +25°C, DC Voltage = 12Volts, DC Current = 2,800mA)
Description
Frequency Range
Small Signal Gain
Gain Flatness
Gain Variation at OTR*
Psat
Output Power at 1 dB Compression Point
Output 3rd Intercept Point
Reverse Isolation
Noise Figure
Spurious
Input VSWR
Output VSWR
Operating DC Voltage
Operating DC Current
Quiescent Current
Operating Temperature Range
.
11.5
2,200
1,000
-30
1.5:1
1.5:1
12
2,800
1,300
+40
+50
50
Minimum
860
39
Typical
42
±1
±2
+42.5
+41
+55
60
3.5
Maximum
960
45
±1.5
Units
MHz
dB
dB
dB
dBm
dBm
dBm
dB
4.5
-60
2:1
2:1
12.5
3,300
1,600
+70
dB
dBc
Volts
mA
mA
°C
*OTR= Base Plate Operating Temperature Range
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High Power High Gain Amplifier, 55 dBm
IP3, 3.5 dB NF, SMA
PE15A5042
PE15A5042 REV 1.0
1
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High
Power High Gain Amplifier, 55 dBm IP3, 3.5 dB NF, SMA
TECHNICAL DATA SHEET
Absolute Maximum Rating
Parameter
Source Voltage
RF input Power
Storage Temperature
Operating Temperature
PE15A5042
Rating
+13
+15
-40 to +125
-30 to +65
Units
Volts
dBm
°C
°C
ESD Sensitive Material,
Transport material in
Approved ESD bags.
Handle only in approved
ESD Workstation.
.
Mechanical Specifications
Size
Length
Width
Height
.
3.54 in [89.92 mm]
1.75 in [44.45 mm]
0.55 in [13.97 mm]
SMA Female
SMA Female
Input Connector
Output Connector
Environmental Specifications
Temperature
Operating Range
..
-30 to +70 deg C
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
•
ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
•
Heat Sink Required for Proper Operation, Unit is cooled by conduction to heat sink.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High Power High Gain Amplifier, 55 dBm
IP3, 3.5 dB NF, SMA
PE15A5042
PE15A5042 REV 1.0
2
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High
Power High Gain Amplifier, 55 dBm IP3, 3.5 dB NF, SMA
TECHNICAL DATA SHEET

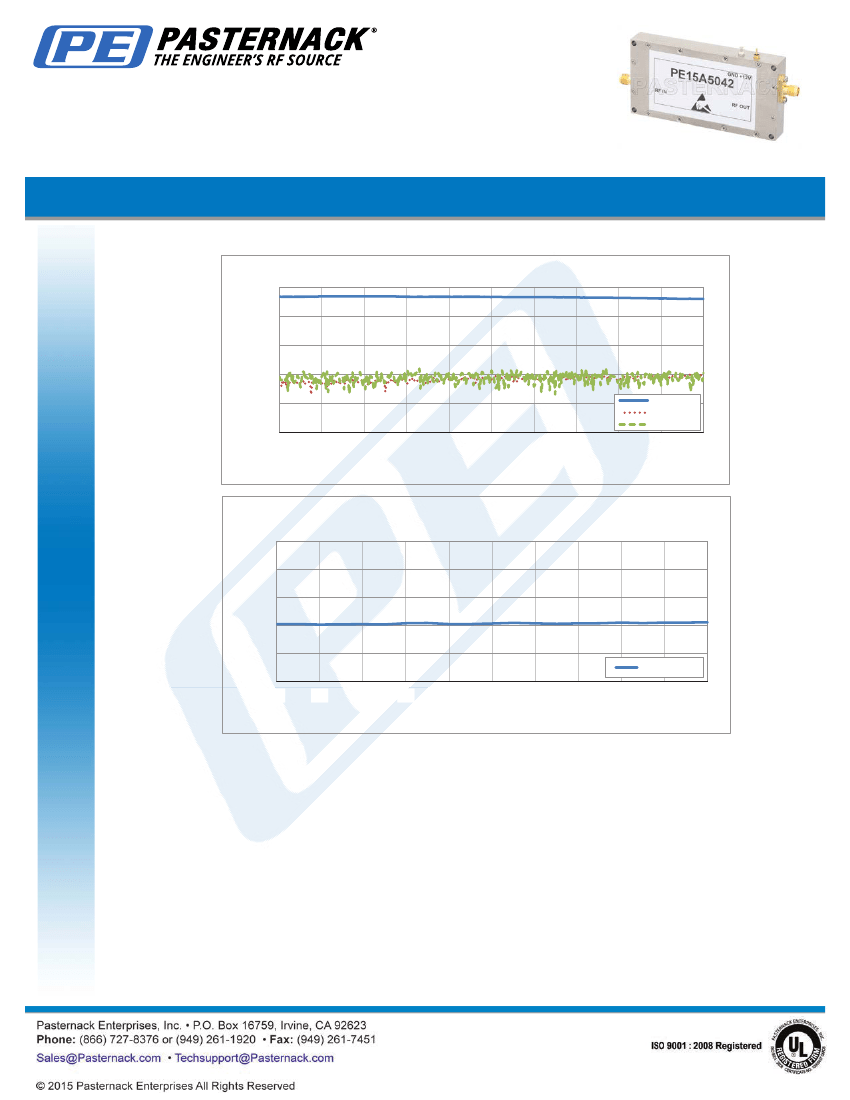

Typical Performance Data
50
30
10
dB
-10
-30
-50
820
838
856
874
892
910
Freq.(MHz)
928
946
964
Gain
Input RL
Output RL
982
1,000
PE15A5042
Gain, Return Loss
Noise Figure
5
4
3
dB
2
1
0
860
870
880
890
900
910
Freq.(MHz)
920
930
940
Noise Figure
950
960
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High Power High Gain Amplifier, 55 dBm
IP3, 3.5 dB NF, SMA
PE15A5042
PE15A5042 REV 1.0
3
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High
Power High Gain Amplifier, 55 dBm IP3, 3.5 dB NF, SMA
TECHNICAL DATA SHEET
PE15A5042
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High Power High Gain Amplifier, 55 dBm IP3, 3.5 dB NF, SMA from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High Power High Gain Amplifier, 55 dBm IP3,
3.5 dB NF, SMA
PE15A5042
URL:
http://www.pasternack.com/42-db-gain-960-mhz-high-power-high-gain-amplifier-ip3-sma-pe15a5042-p.aspx
PE15A5042 REV 1.0
4
42 dB Gain, 18 Watt Psat, 860 MHz to 960 MHz, High Power
High Gain Amplifier, 55 dBm IP3, 3.5 dB NF, SMA
PE15A5042

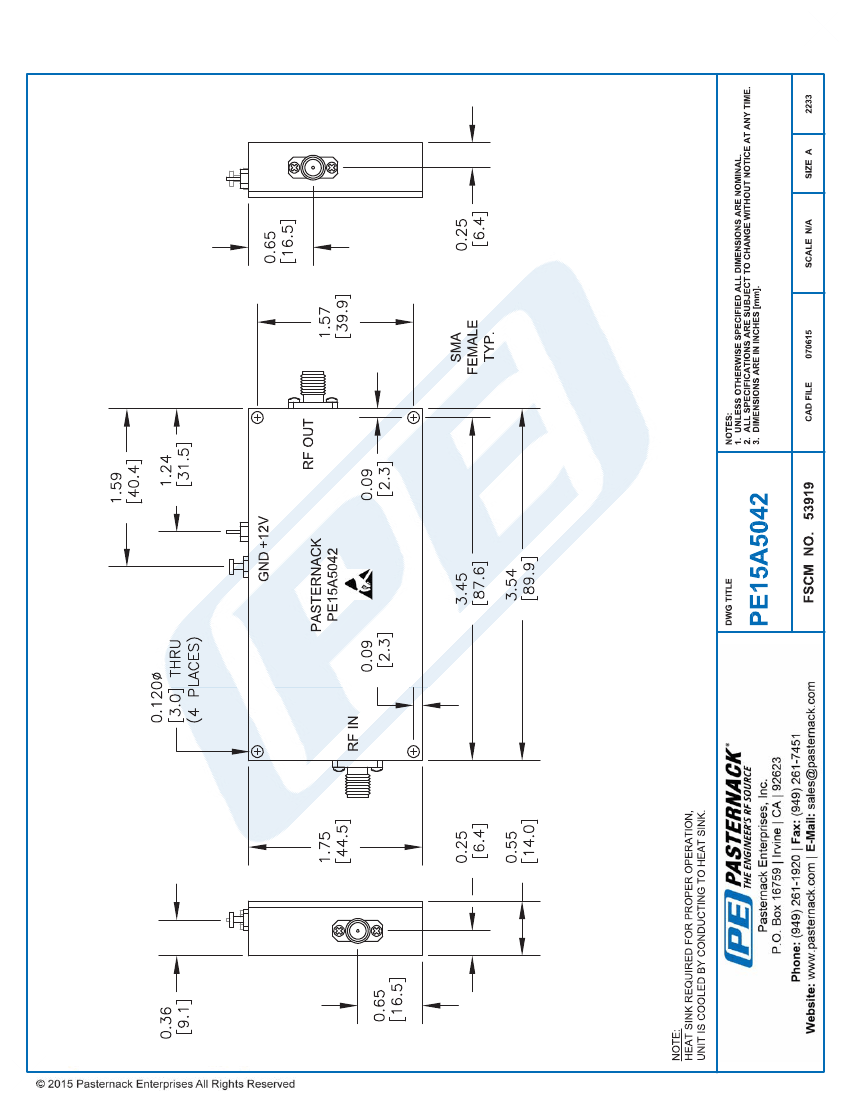

CAD Drawing
PE15A5042 REV 1.0
5
