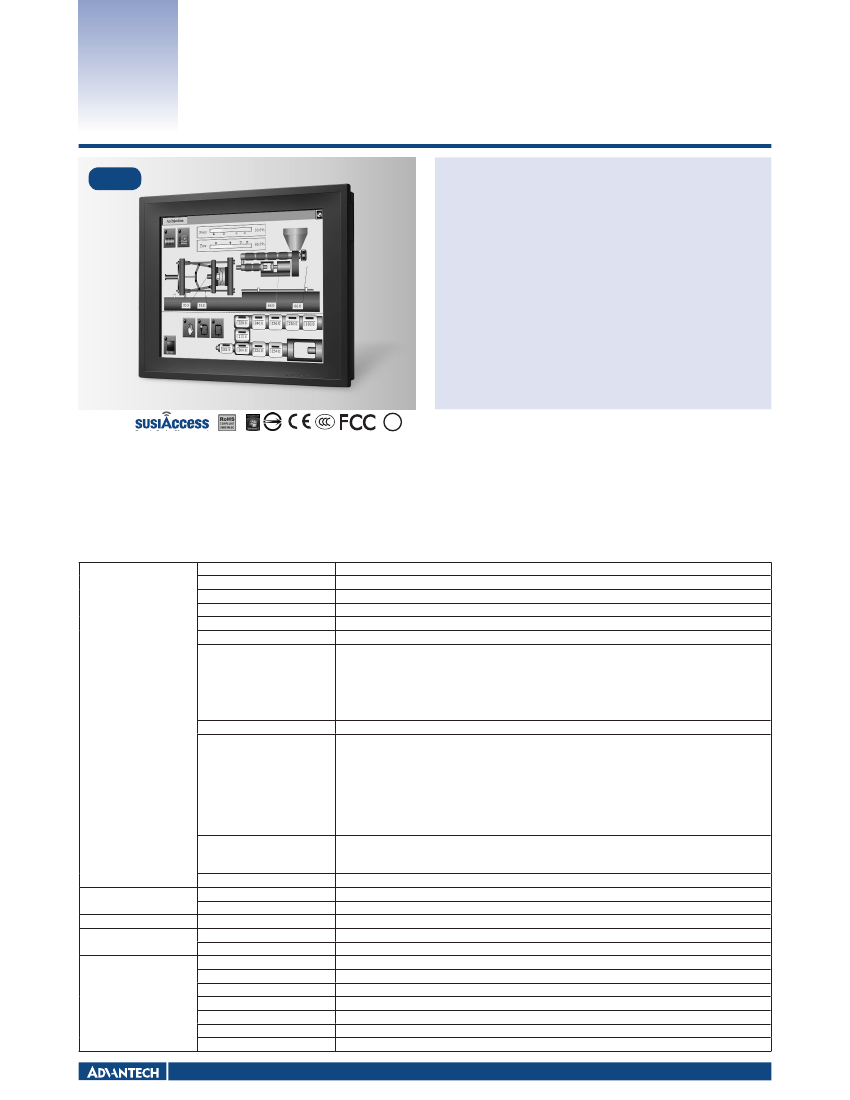

PPC-3190

NEW

19" Fanless Panel PC with Intel Atom

Quad-Core Processor

Features

19" TFT SXGA LCD with resistive touchscreen

Embedded Intel Atom Quad-Core E3845 1.91G

Fanless and Slim design

Supports one internal 2.5” SATA HDD, one mSATA socket

Built-in one PCI or one PCIe x1 expansion slot

Wide operating temp. range from -20~60°C

Wide range power input for 9~32V

One isolated RS-422/485 with Autoflow, Dual Intel GbE

One optional GPIO (8 channels, TTL level)

Introduction

The PPC-3190 is a 19" fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp. (-20~60°C)

and wide range of power input (9~32V

). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and

dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary

card makes more application possibility.

Specifications

CPU

Frequency

L3 Cache

Chipset

Memory

Storage 1

Intel ATOM E3845

1.91 GHz

Intel Bay-Trial I

1 x 204-pin SODIMM DDR3L support up to 8GB

1 x 2.5” SATA bay

Either:

1 x Full size mSATA

CFast card (optional module)

CF card (optional module)

Internal USB connector for USB dongle (optional module)

2 x DB9 for two RS-232 or one RS-232 and one GPIO (optional module)

2 x Gigabit Ethernet, (Intel I210)

1 x isolated RS-422/485 (terminal block)

4 x RS-232, two external and two by internal pin header (need optional module)

1 x GPIO (8 channels, TTL level) by internal pin header (need optional module)

1 x USB3.0 + 3 x USB2.0

2 x Gigabit Ethernet

1 x D-SUB VGA port

1 x DP1.1a

1 x Line-out, 1 x Mic-in, 2 x 1W speaker,

Either

One PCI (standard)

One PCIe x 1 (in the accessory box)

1 x Full-size Mini PCIe

458.2 x 384 x 67.3(mm)(18" x 15" x 2.6")

7.9kg (17.3Ib)

WES7 32&64bit / Windows 7 32&64bit/ Windows 8 32&64bit

9-32 V

27W (Burn-In test 7.0 in windows 7 32bits)

19" TFT LCD (LED Backlight)

1280 x 1024

16.7M

85 (left), 85 (right), 80 (up), 80 (down)

350

1000

50,000 hrs (typ.)

Optional Storage & I/O

Processor system

Network (LAN)

I/O Ports

Expansion slots

Physical

Characteristics

OS support

Power supply

Other Expansion

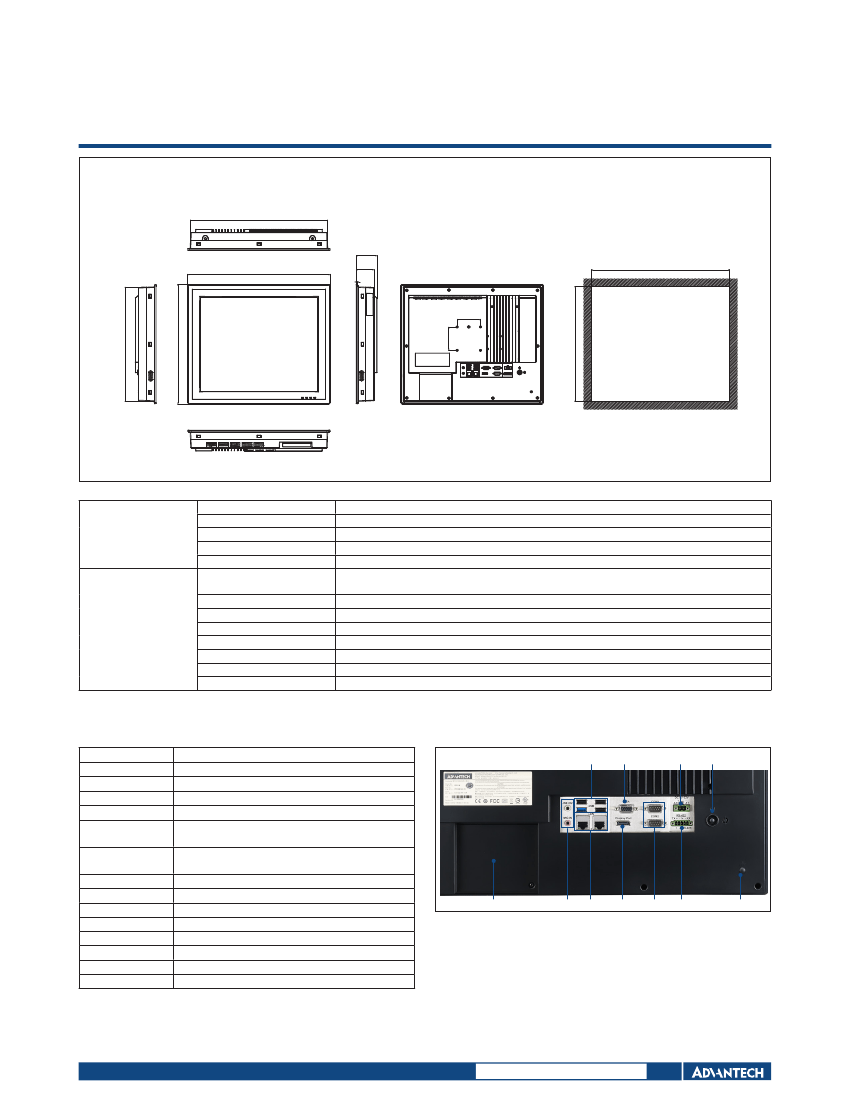

Dimensions

Weight

OS Support

Input Voltage

Power Consumption

Display Type

Max. Resolution

Colors

Viewing Angle

Luminance(cd/m2)

Conrast Ratio

Backlight Lifetime

LCD Display

Panel PCs

All product specifications are subject to change without notice

Last updated : 15-Jun-2015
