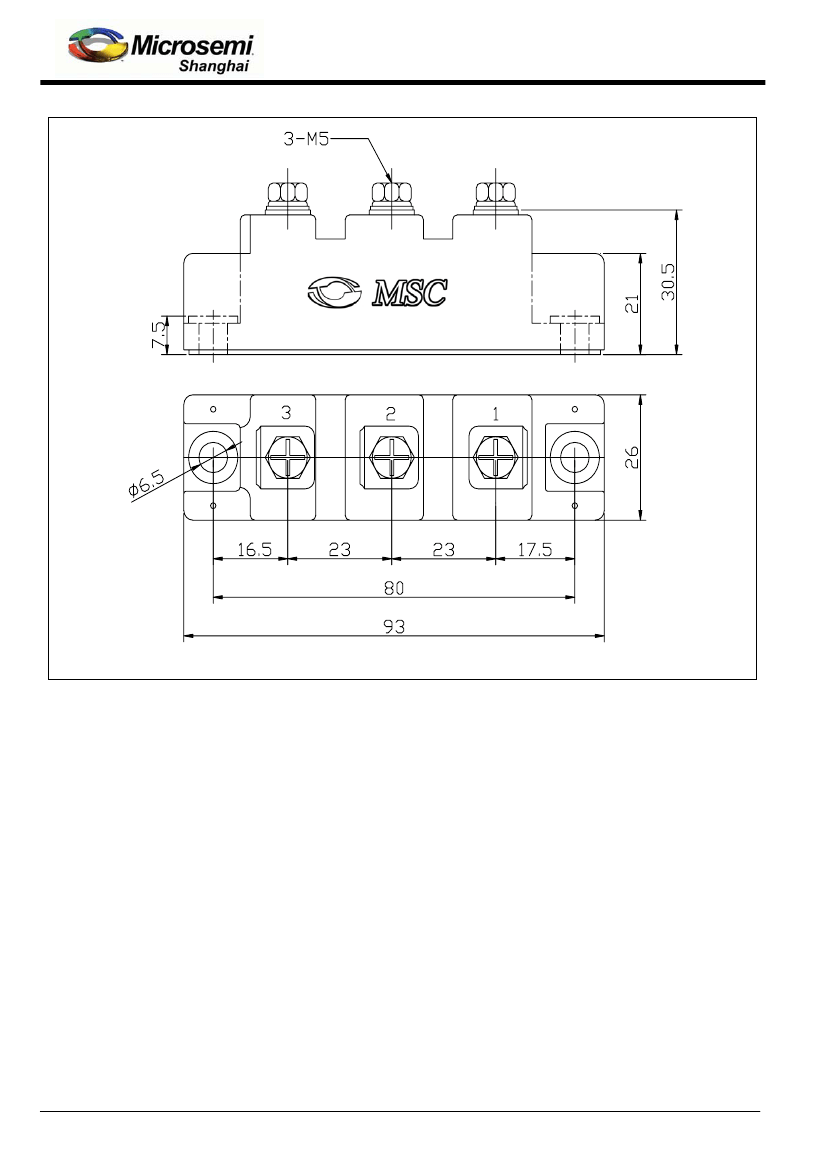

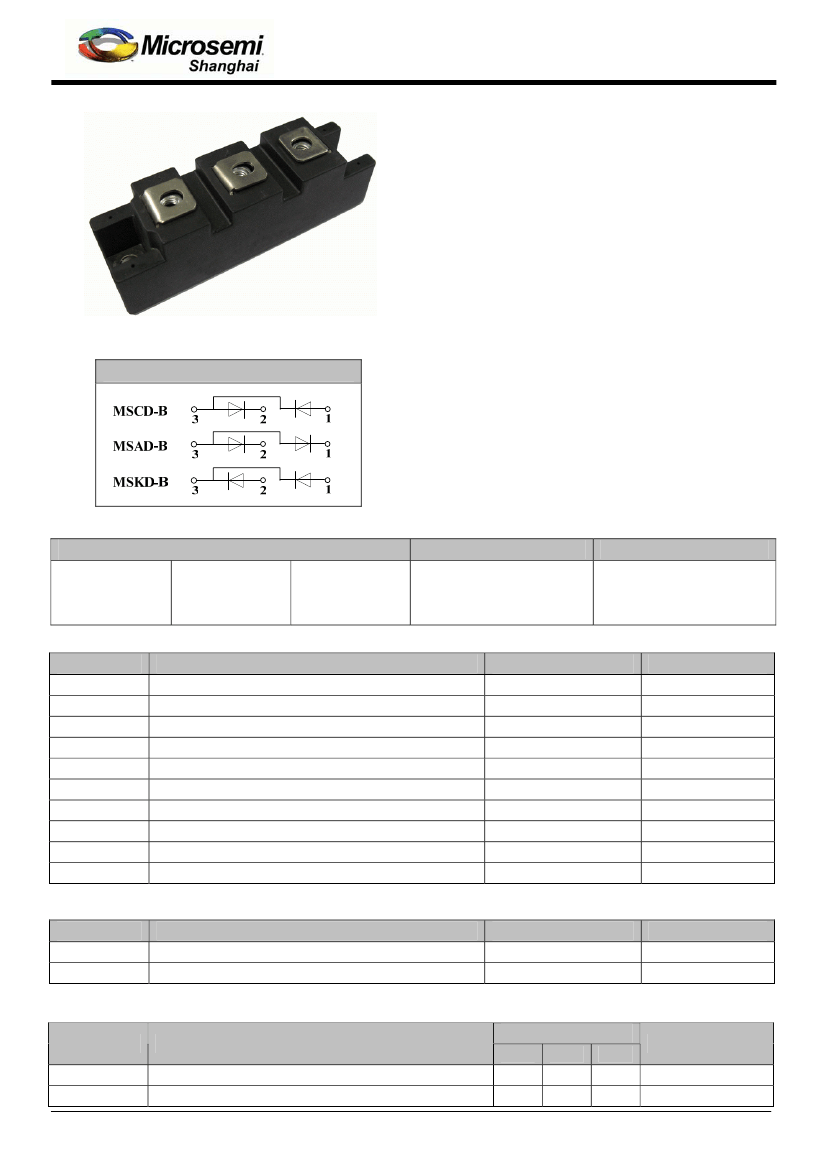

MSCD60B
Glass Passivated Rectifier
Diode Modules
V
RRM
800 to 1800V
I
FAV
60 Amp
Applications
Non-controllable rectifiers for AC/AC
converters
Line rectifiers for transistorized AC motor
controllers
Field supply for DC motors
Circuit
Features
Blocking voltage:800 to 1800V
Heat transfer through aluminum oxide DBC
ceramic isolated metal baseplate
Glass passivated chip
Module Type
TYPE
MSCD60B-08
MSCD60B-12
MSCD60B-16
MSCD60B-18
MSAD60B-08
MSAD60B-12
MSAD60B-16
MSAD60B-18
MSKD60B-08
MSKD60B-12
MSKD60B-16
MSKD60B-18
V
RRM
800V
1200V
1600V
1800V
V
RSM
900V
1300V
1700V
1900V
Maximum Ratings
Symbol
Conditions
Single phase ,half wave 180°conduction Tc=100℃
I
FAV
Single phase ,half wave 180°conduction Tc=98℃
I
F(RMS)
t=10mS Tvj =45℃
I
FSM
t=10mS Tvj =45℃
i
2
t
a.c.50HZ;r.m.s.;1min
V
isol
T
vj
T
stg
Mt
Ms
To terminals(M5)
To heatsink(M6)
Module
Values
60
90
1150
6600
3000
-40 to +150
-40 to +125
3±15%
5±15%
140
Units
A
A
A
A
2
s
V
℃
℃
Nm
Nm
g
Weight
Thermal Characteristics
Symbol
R
th(j-c)
R
th(c-s)
Electrical Characteristics
Symbol
V
FM
I
RD
Document Number: MSCD60B
Aug.20, 2010
Conditions
Per diode
Module
Values
0.59
0.1
Units
℃/W
℃/W
Conditions
T=25℃ I
F
=200A
T
vj
=150℃ V
RD
=V
RRM
1
Values
Min.
-
-
Typ.
1.21
-
Max.
1.45
5
Units
V
mA
www.
smsemi.com
MSCD60B

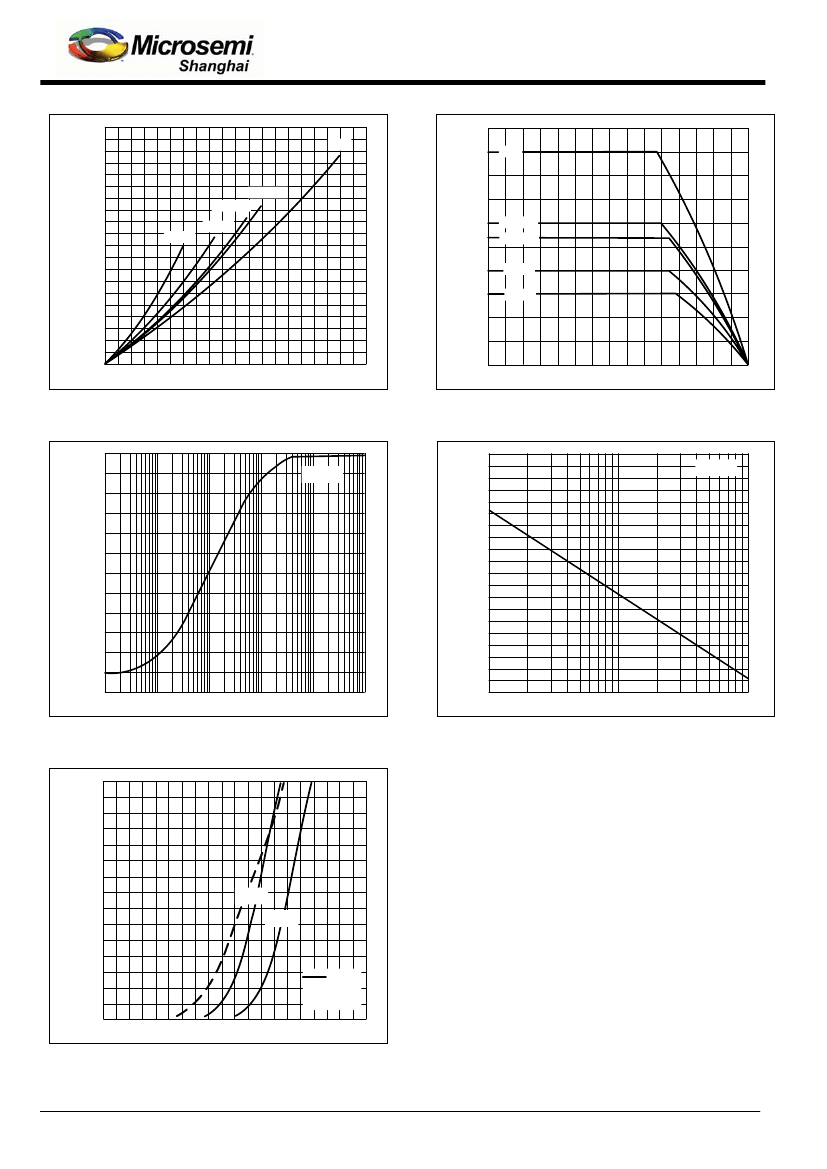

Performance Curves
100
W
sin.180
rec.120
rec.60
sin.180
rec.30
rec.120
rec.60
rec.30
DC
100
A
DC
50
50
P
vtot
0
0 I
D
50
A 100
I
D
0
0 Tc
50
100
℃
150
Fig1. Power dissipation
0.6
℃/
W
Z
th(j-
C
)
1500
A
Fig2.Forward Current Derating Curve
50HZ
0.3
750
0
0.001
0.01
0.1
1.0
10
S 100
0
1
10
cycles 100
Fig3. Transient thermal impedance
300
A
Fig4. Max Non-Repetitive Forward Surge
Current
200
typ.
max.
100
25℃
- - -125℃
0
VF
0.5
1.0
1.5
V 2.0
IF
0
Fig5. Forward Characteristics
Document Number: MSCD60B
Aug.20, 2010
www.
smsemi.com
2
