8Z-12.000MAAI-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 8Z-12.000MAAI-T

8Z-12.000MAAI-T: DescriptionParallel - Fundamental Quartz Crystal, 12MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size709KB，3 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/; Environmental Compliance

Download Datasheet Parametric View All

8Z-12.000MAAI-T Overview

Parallel - Fundamental Quartz Crystal, 12MHz Nom, SMD, 4 PIN

8Z-12.000MAAI-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1975549371
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.003%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	16 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	2.5mm X 2.0mm X 0.55mm
Series resistance	150 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

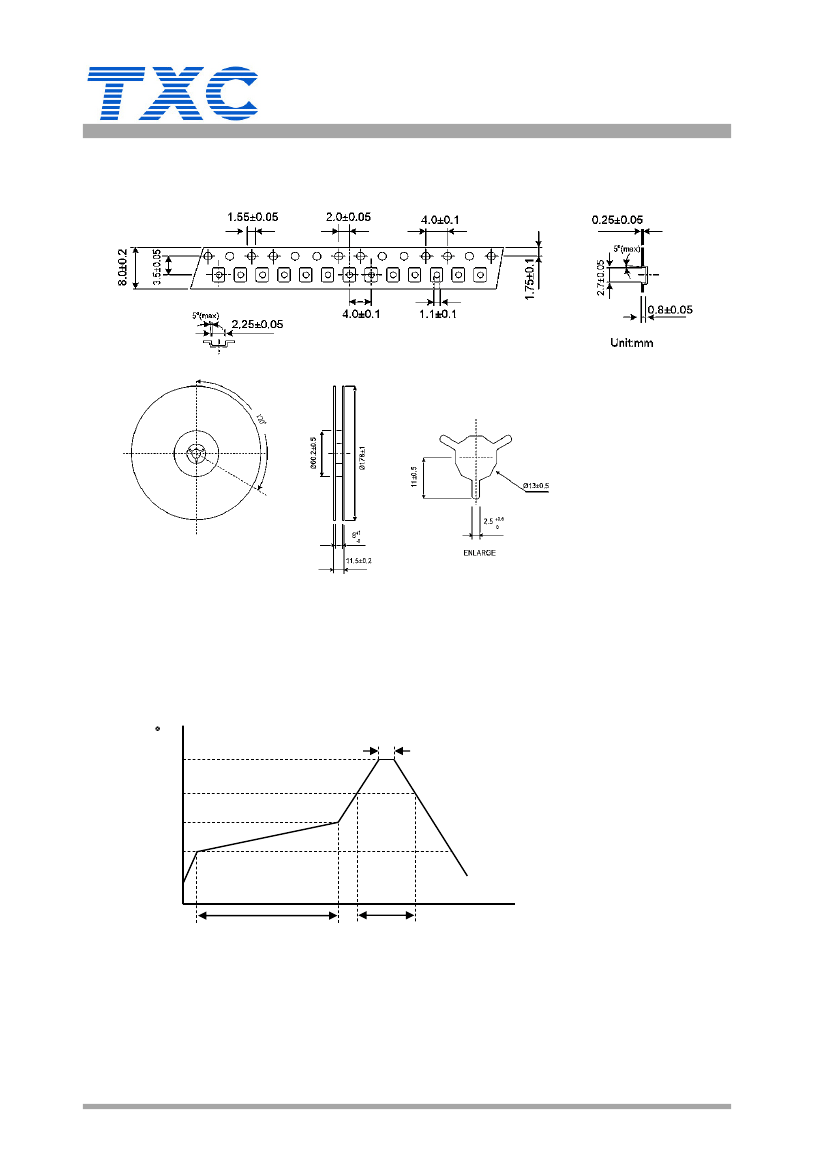

Preview

Download Datasheet

View All

MHz Crystal

Features

Frequency range : 12MHz to 66MHz

Ceramic SMD package

Seam sealing

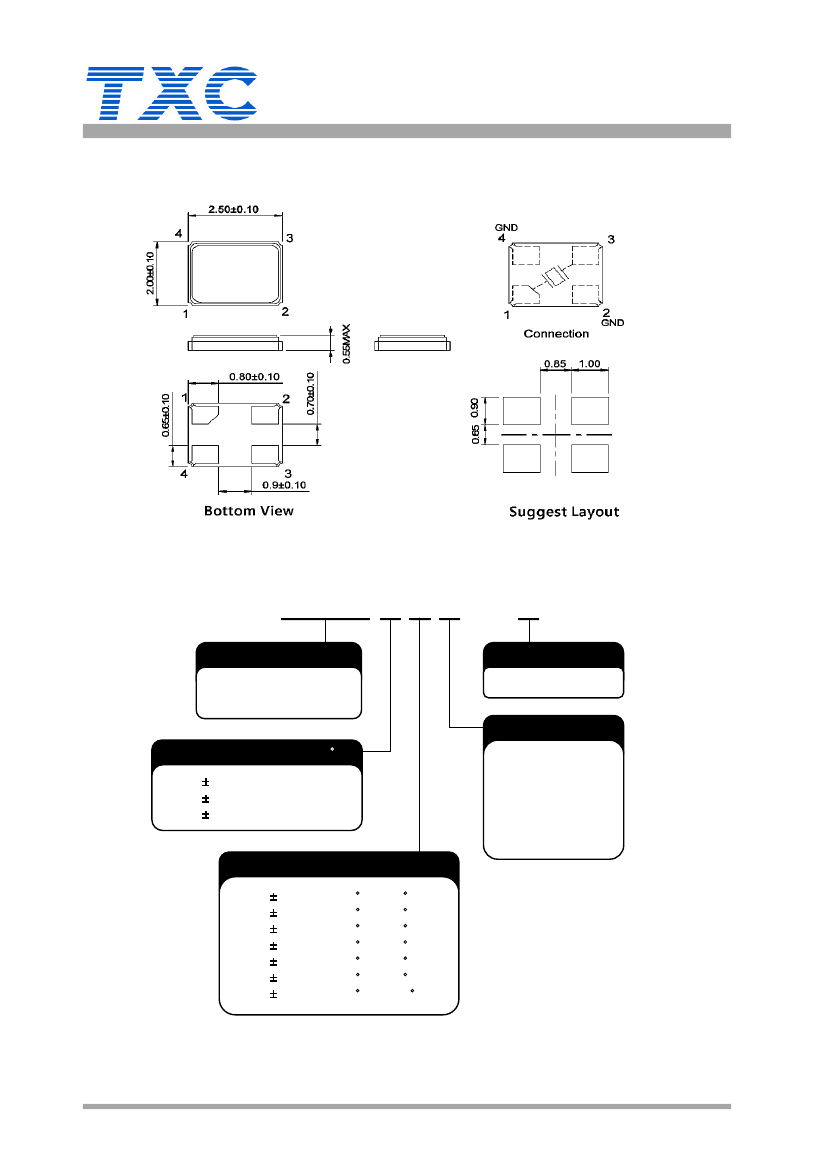

External dimensions (mm)

L : 2.5 x W : 2.0 x H : 0.55

RoHS compliant & Pb free

Applications

Bluetooth, Wireless LAN

Microprocessor

Mobile phone, Computer, Modem

Audio, Video

Consumer products

Electrical Characteristics

Item

Frequency Range

Frequency Tolerance

tol

12MHz ~ 66MHz

±30ppm, ±20ppm, ±10ppm

±30 ppm

±20 ppm

±10 ppm

±30 ppm

±20 ppm

±60 ppm

-20°C ~ +70°C

-40°C ~ +85°C

-40°C ~ +125°C

3pF Max.

1 ~ 200 W (100 W Typ.)

6pF, 8pF, 10pF

12pF, 16pF, 18pF, 20pF

±3ppm Max.

-55°C ~ +125°C

Conditions

at 25°C

-20°C ~ +70°C

-30°C ~ +85°C

-40°C ~ +85°C

-40°C ~ +125°C

Frequency Stability over

Operating Temperature Range

(refer to 25°C)

stab

Operating Temperature Range

Shunt Capacitance

Drive Level

Load Capacitance

Aging (at 25°C ± 3°C, first year)

Storage Temperature Range

OTR

aging

STR

Note [1]

Notes:

[1] Please contact us for low aging +/-1ppm grade crystals.

Motional Resistance (ESR)

Fundamental

12 ~ 13 MHz

14 ~ 30 MHz

30 ~ 66 MHz

150

100

Max.

Rev. 1.08

Page 1

www.txccrystal.com
