LxLx-ST11xx Low Profile Optical Transceiver
1x/2x Fiber Channel Applications, 3.3V,
850nm VCSEL, Multimode, Up to 500Meters
Key Features & Benefits
Low Profile Design - 0.386 inches max. height
Surface mount I/O pins for high speed signal
Connectivity for
Business Critical Continuity
TM
integrity
All metal body, solder or screw mount options
Industrial Temp Range, Vibration tolerant design
RX data squelch on Signal Detect deassert
Individual (separate) +3.3 V power supply per port
Industry standard duplex multimode LC receptacle
Compliant with ANSI Fiber Channel FC-PI / PH2
EN-60825 / IEC-825 / CDRH Class 1 Compliant
Optional Parylene C Conformal Coating
High Power options available
Optional addition of fiber pigtail
Ordering Information
Low Rider
Roughrider
1
Shell Options
N= No GND
Tabs (Flat
Shell)
T= GND Tabs
Applications
The LxLx-ST11xx multimode optical fiber transceivers
provide low profile, cost effective solutions for rate agile
1x/2x Fiber Channel multimode optical fiber data links with a
duplex LC connector interface. These transceivers are fully
compliant with the ANSI Fiber Channel standards but can be
used for any other data communications purpose within
their operating parameters.
L X L X - ST11
RR
L X - ST11
Temperature
and coating
H= -40 to 85 C,
No Coating
M= -40 to 85 C,
Conformal
Coating
X X
X X
Extended
Margin Link
BLANK=
Standard Power
2= +2dB Margin
3= +3dB Margin
5= +5dB Margin
Mounting
BLANK= Solder
Posts
(0.125 length)
B= Screw Posts
(0.050 length)
Product Overview
The Emerson Network Power Connectivity Solutions LxLx-
ST11xx fiber optic transceivers consist of transmitter and
receiver functions combined in a Low Profile RJ Format
module. The optical transmitter is a high output 850nm
VCSEL. The transmitter input lines are driven with differential
LVPECL signals applied to the Transmit (TX+ and TX-) pins.
These signals are internally converted to a suitable
modulation current by a CMOS integrated circuit. A Transmit
Disable (TDIS) function is provided to enable control of the
VCSEL optical output. The optical receivers consist of PIN and
Preamplifier assemblies and CMOS limiting post-amplifier
integrated circuits. Outputs from the receivers consist of
differential CML data signals on the Receive (RX+ and RX-)
pins and a single ended LVTTL signal detect function on the
Signal Detect (SD) pin. The RX data is squelched (JAM) upon
Signal Detect deassert to prevent garbage data output when
no optical signal is present. The High Power Low Profile optic
transceiver family is based upon the Standard Power LxLx-
ST11x product, with the addition of higher optical output
power options.
1. Consult the Roughrider worksheet on pg. 13 for pigtail options.

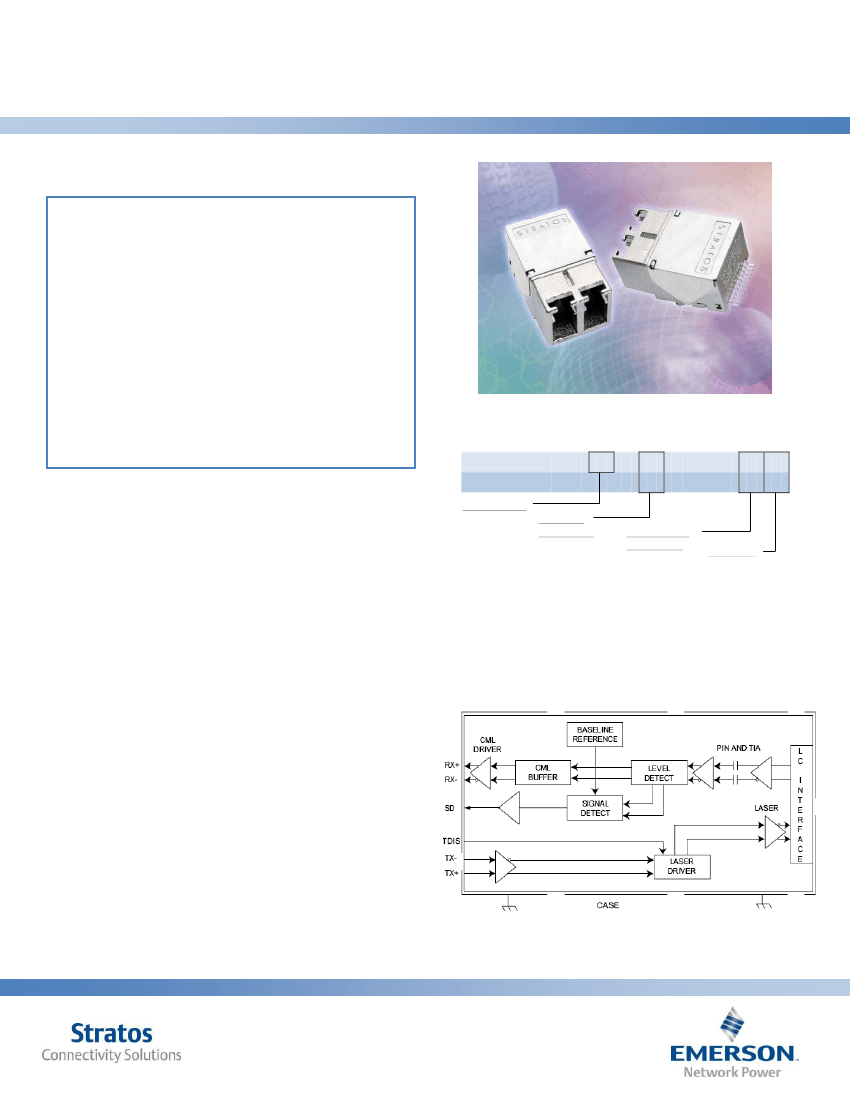

Block Diagram
Stratos
LxLx-ST11xx Low Profile Optical Transceiver
Absolute Maximum Ratings
Connectivity for
Business-Critical Continuity
TM
Absolute maximum limits mean that no catastrophic damage will occur if the product is subjected to these ratings for short
periods, provided each limiting parameter is in isolation and all other parameters have values within the performance
specification. It should not be assumed that limiting values of more than one parameter can be applied to the product at the
same time.
Parameter
Storage Temperature
Lead Soldering Temperature
Lead Soldering Time
1
Supply Voltage
Data Input Voltage
Differential Input Voltage (p-p)
Output Current
Symbol
T
SOLD
t
SOLD
V
CC
V
I
V
D
I
O
T
S
MIN
-55
Typical
MAX
+100
+260
10
+4.5
V
CC
2.2
50
Unit
°C
°C
Seconds
V
V
V
mA
-0.5
-0.5
1. Recommended for hand solder or hot bar soldering only. Convection or IR reflow oven profiles may damage internal solder joints. Reference Low Rider
Soldering Application Note.
Recommended Operating Conditions
Parameter
Operating Temperature Limit
Supply Voltage
TX Common Mode Voltage
TX Differential Input Voltage (p-p)
Transmit Disable Voltage
Transmit Enable Voltage
RX Data Output Load
Symbol
T
A
V
CC
V
CM
V
D
V
TD
V
TEN
R
L
MIN
-40
+3.135
Typical
2.0
MAX
+85
+3.465
2.20
V
CC
0.8
Unit
°C
V
V
V
V
V
0.20
2.0
V
EE
50

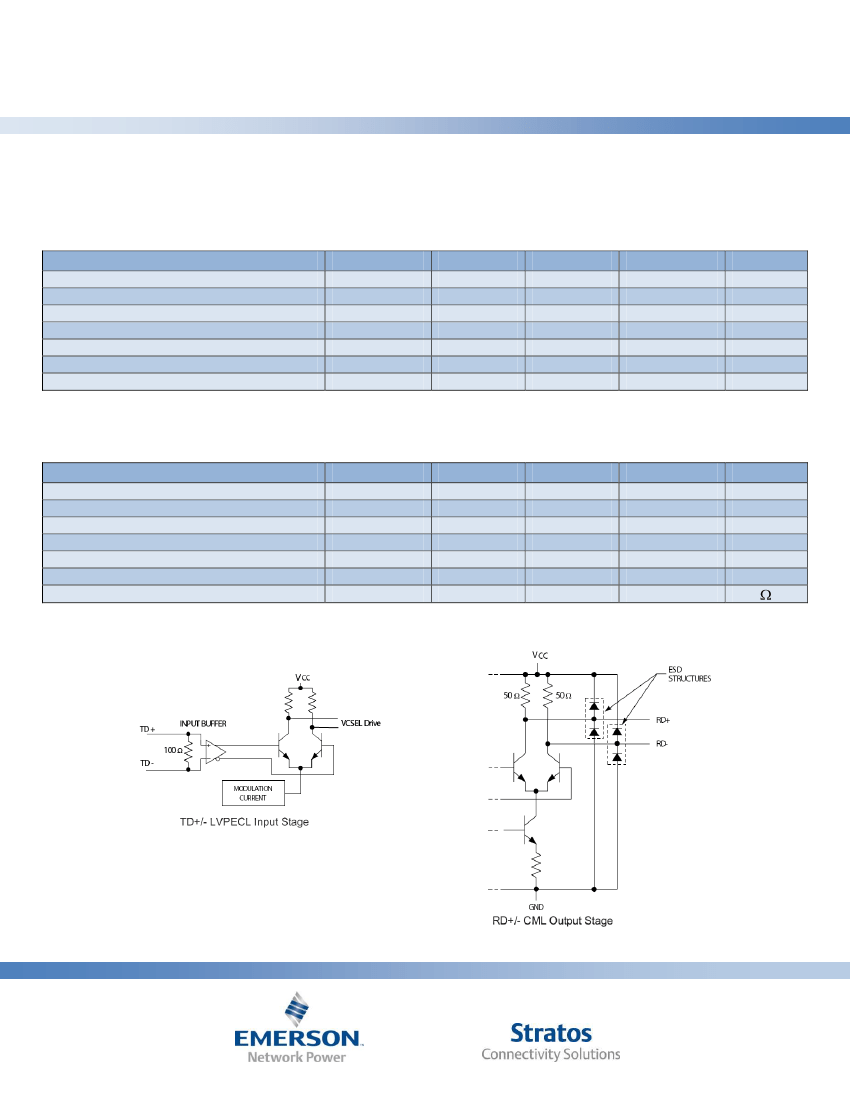

Detail of Data I/O Stages
Emerson Network Power
Stratos Optical
1333 Gateway Drive, Suite 1007
Melbourne, FL 32901-2644
For product information:
www.stratosoptical.com
call (708) 457-2582 or 1-800-323-6858
Page
2
of
13
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
2007 Emerson Electric Co.
dr-lxlxst11xx
July 14, 2009
Stratos
LxLx-ST11xx Low Profile Optical Transceiver
Connectivity for
Business-Critical Continuity
TM
Transmitters:
VCCTX = 3.135V to 3.465V, T
A
= Operating Temperature Range
Parameter
Symbol
MIN
Typical
Optical Output Power
LxL-ST11xx
LxL2-ST11xx (+2dB Margin)
LxL3-ST11xx (+3dB Margin)
LxL5-ST11xx (+5dB Margin)
Optical Output Wavelength
Spectral Width
Extinction Ratio
Supply Current
Optical Rise/Fall Time (20% - %80)
1,2
2.125 GigaBaud
1.0625 GigaBaud
Relative Intensity Noise
Optical Modulation Amplitude (p-p)
2.125 GigaBaud
1.0625 GigaBaud
Total Jitter
1
1,2
MAX
-1.5
-1.5
-1.5
-1.5
860
0.85
75
0.15
0.30
-117
Unit
dBm
nm
nm
dB
mA
nS
nS
dB/Hz
µW
µW
ps
P
O
λ
OUT
Δλ
RMS
ER
I
CC
t
R,F
RIN
OMA
Tj
-10.0
-8.0
-7.0
-5.0
830
850
9
55
196
156
85
1. BER=10
-12
@ 2.125 GigaBaud, PRBS = 2
7
-1, NRZ, Compliant with FC-PI-2.
2. BER=10
-12
@ 1.0625 GigaBaud, PRBS = 2
7
-1, NRZ, Compliant with FC-PH.
Emerson Network Power
Stratos Optical
1333 Gateway Drive, Suite 1007
Melbourne, FL 32901-2644
For product information:
www.stratosoptical.com
call (708) 457-2582 or 1-800-323-6858
Page
3
of
13
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
2007 Emerson Electric Co.
dr-lxlxst11xx
July 14, 2009
Stratos
LxLx-ST11xx Low Profile Optical Transceiver
Connectivity for
Business-Critical Continuity
TM
Receivers:
VCCRX = 3.135V to 3.465V, T
A
= Operating Temperature Range
Parameter
Symbol
MIN
Optical Sensitivity
2.125 GigaBaud
2
1.0625 GigaBaud
3
Optical Wavelength
Optical Modulation Amplitude
2.125 GigaBaud
1.0625 GigaBaud
Stressed Receiver Sensitivity (OMA)
2.125 GigaBaud
50/125 µm MMF
62.5/125 µm MMF
1.0625 GigaBaud
50/125 µm MMF
62.5/125 µm MMF
Signal Detect Assert Time
Signal Detect Deassert Time
Signal Detect Deassert Level
4
Signal Detect Assert Level
Signal Detect Hysteresis
RX Data Output – Low
RX Data Output – High
Supply Current
1
Typical
MAX
0
0
860
Unit
dBm
dBm
nm
µW
µW
µW
µW
µW
µW
µS
µS
dBm
dBm
dB
V
V
mA
P
I
λ
IN
OMA
-15.0
-17.0
830
49
31
96
109
55
67
t
SDAS
t
SDDA
SD
OFF
SD
ON
HYS
V
OL
-V
CC
V
OH
-V
CC
I
CC
<10
<10
-31
1.5
-1.810
-1.165
2.25
100
350
-17
3.5
-1.475
-0.880
120
70
1. Assuming an Extinction Ratio of 9 dB
2. BER=10
-12
@ 2.125 GigaBaud, PRBS = 2
7
-1, NRZ, Compliant with FC-PI-2.
3. BER=10
-12
@ 1.0625 GigaBaud, PRBS = 2
7
-1, NRZ, Compliant with FC-PH.
4. RX Data outputs are squelched when Signal Detect is deasserted to prevent garbage data output when no optical signal is present.
Emerson Network Power
Stratos Optical
1333 Gateway Drive, Suite 1007
Melbourne, FL 32901-2644
For product information:
www.stratosoptical.com
call (708) 457-2582 or 1-800-323-6858
Page
4
of
13
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
2007 Emerson Electric Co.
dr-lxlxst11xx
July 14, 2009
Stratos
LxLx-ST11xx Low Profile Optical Transceiver
Connectivity for
Business-Critical Continuity
TM
Conformal Coating Option
Parameter
Specification
Coating
Deposition
Film Thickness
Value
MIL-I-46058C, Type XY
Parylene type C
Vacuum deposited
1 MIL +/- 0.0002
Link Distances
Fiber Specification
62.5/125 (200MHz*Km)
50/125 (500MHz*Km)
Application
2x Fiber Channel – ANSI X3.297 FC-PI
1x Fiber Channel – ANSI X3.297 FC-PH-2
2x Fiber Channel – ANSI X3.297 FC-PI
1x Fiber Channel – ANSI X3.297 FC-PH-2
Distance
150M
300M
300M
500M
Regulatory Compliance
Requirement
MIL-STD-883-3015.7
IEC-801-2
IEC-801-3
FCC
EN 55022 (CISPR 22A)
IEC-825 Issue 1993-11
FDA CDRH 21-CFR 1040
Feature
ESD
ESD
EMI
EMI
EMI
Eye Safety
Eye Safety
Condition
Class II
Human Body Model
Immunity
Class B
Class B
Class 1
Class 1
Notes
2200V
25KV
10V/M
>20dB
10V/M
TUV Certificate Number on File
CDRH Accession Number on File
Emerson Network Power
Stratos Optical
1333 Gateway Drive, Suite 1007
Melbourne, FL 32901-2644
For product information:
www.stratosoptical.com
call (708) 457-2582 or 1-800-323-6858
Page
5
of
13
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
2007 Emerson Electric Co.
dr-lxlxst11xx
July 14, 2009
