V

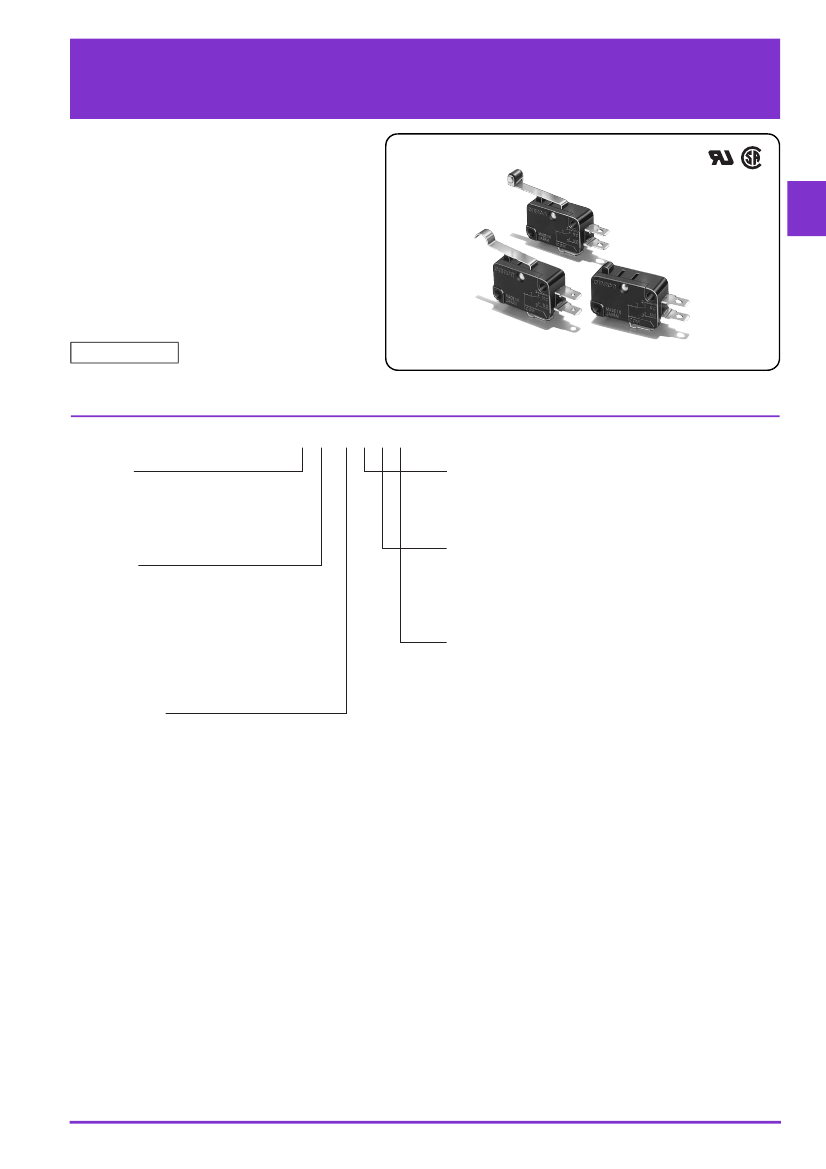

Miniature Basic Switch
Miniature Basic Switch that
Offers High Reliability and
Security
●
Wide variation of best-selling microswitches with
switching currents of 10 to 21 A.
●
Can be used for interrupting current when doors
are opened or closed.
●
Available in two types of cases: thermoplastic resin
and thermosetting resin.
RoHS Compliant
V
Model Number Legend
1 2
3 4 5 6
V-
@ @
-
@ @ @ @
1. Ratings
21: 21 A at 250 VAC
16: 16 A at 250 VAC
15: 15 A at 250 VAC
10: 10 A at 250 VAC
2. Actuator
None : Pin plunger
1 : Short hinge lever
2 : Hinge lever
3 : Long hinge lever
4 : Simulated roller lever
5 : Short hinge roller lever
6 : Hinge roller lever
3. Contact Form
1: SPDT
2: SPST-NC
3: SPST-NO
4. Terminals
A : Solder terminals
C2 : Quick-connect terminals (#187)
C : Quick-connect terminals (#250)
5. Maximum Operating Force
6: 3.92 N {400 gf}
5: 1.96 N {200 gf}
4: 0.98 N {100 gf}
Note: These values are for the pin plunger models.
6. Heat Resistance
None : Standard (80°C)
-T : Heat-resistive (150°C)
