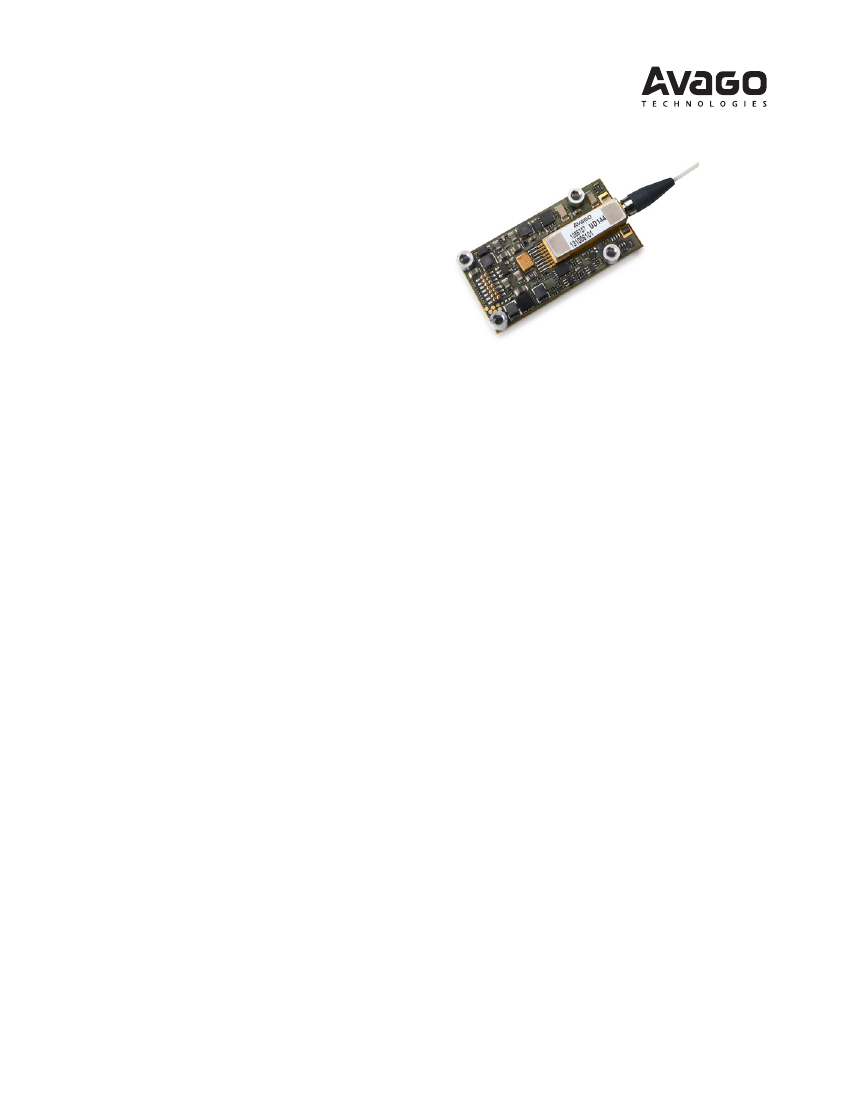

AFCU-UITLAXX
Micro Integrable Tunable Laser (UITLA) Module
Product Brief
Description
Avago Technologies' AFCU-UITLAXX is an isolated micro
integrable tunable laser assembly (UITLA) module with
internal temperature control, power and wavelength
monitoring capability that is tunable over the C-Band or
L-band. The module is compliant with the standards es-
tablished in the Micro-Integrable Tunable Laser Assembly
Implementation Agreement (OIF-MicroITLA-01.0), which
articulates the characteristics of the UITLA for the purpose
of achieving a multiple source agreement (MSA) amongst
suppliers. The laser performs as a stable single-frequency
source over the life of the module and conforms to all the
required evaluation and qualification testing specifica-
tions outlined in this document.
The UITLA module is intended to be used in wavelength-
division-multiplexing (WDM) applications that require a
narrow linewidth such as coherent optical transmission.
The module can be operated at variable optical output
power levels while maintaining frequency lock. The chan-
nel assignment is user defined through standard OIF com-
mands, based on starting frequency and grid spacing,
providing a high degree of channel flexibility. The fine
frequency tuning feature allows high resolution active
frequency adjustment while maintaining power and line-
width control.
Features
•
External Cavity Laser construction generates a narrow
instantaneous linewidth: <100kHz
•
Stable and reliable external cavity (ECL) design with no
moving elements
•
Available in fixed optical power or variable output
power versions
•
OIF Compliant Variable Optical Power Tuning, +8 to
+16dBm
•
OIF Compliant user-definable optical frequency
channel definition enabling “flex-grid” or “grid-less”
architecture
•
OIF compliant Fine frequency tuning
•
191.500 to 196.250 THz default tuning range
•
Single +3.3V power supply
• ≤
3.5W power dissipation at +75°C case
•
Form Factor: 20 x 40 x 7 mm
•
Fine Tuning Frequency Range:
±6
GHz
Applications
•
DWDM light source
•
Coherent Optical Transmission
For product information and a complete list of distributors, please go to our web site:
www.avagotech.com
Avago, Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries.
Data subject to change. Copyright © 2005-2015 Avago Technologies. All rights reserved.
AV02-4827EN - March 17, 2015
