Features
■
Single gang panel control
■
RoHS compliant*
■
Carbon element
■
Center detent option
■
Wide range of resistance tapers
■
Insulated shaft styles
■
Assortment of pin layouts
Applications
■
Audio/TV sets
■
Car radio
■
Amplifiers/mixers/drum machines/
*R
oH
S
CO
M
synthesizers
■
PCs/monitors
■
Appliances

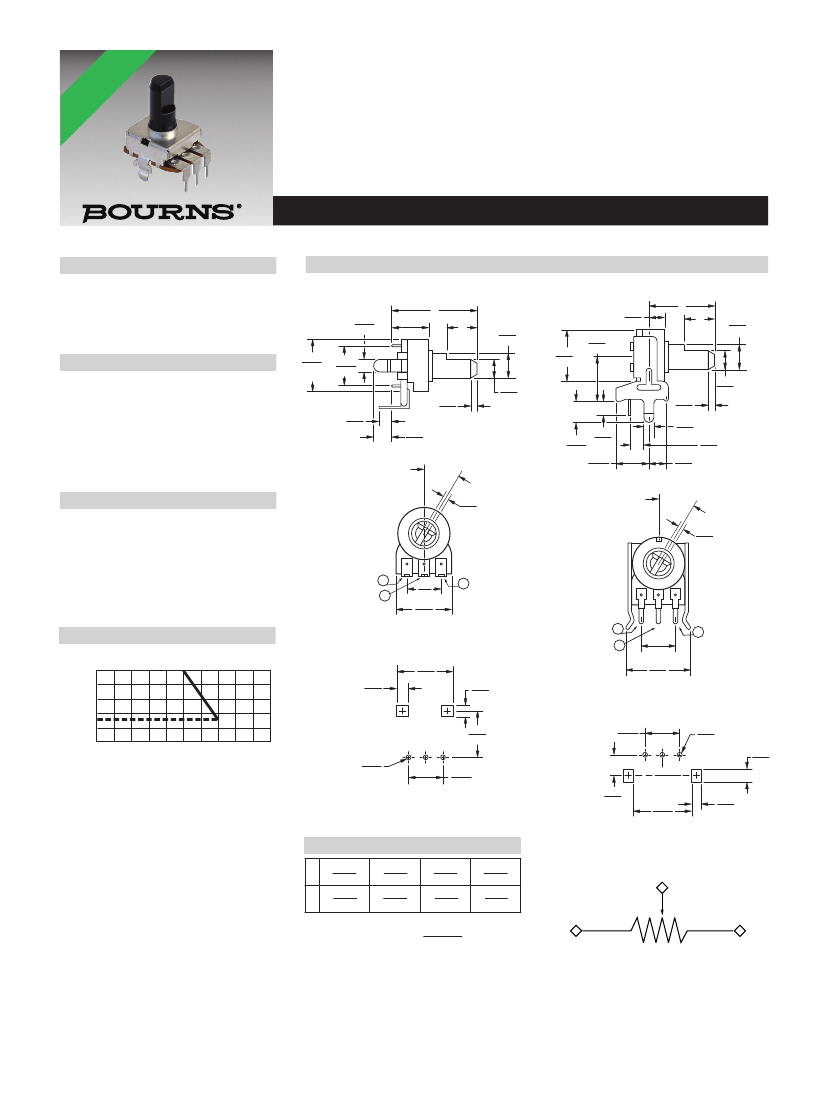

PDB12 Series - 12 mm Rotary Potentiometer
Electrical Characteristics
Taper .................................... Linear, audio
Standard Resistance Range
......................... 1K ohms to 1M ohms
Standard Resistance Tolerance.....±20 %
Residual Resistance ..........10 ohms max.
Environmental Characteristics
Power Rating
Linear ...................................0.08 watt
Audio ....................................0.04 watt
Maximum Operating Voltage
Linear ........................................ 150 V
Audio ......................................... 100 V
Sliding Noise ........................ 47 mV max.
Operating Temperature..-10 °C to +70 °C
Mechanical Characteristics
Mechanical Angle .....................300 ° ±5 °
Rotational Torque ............20 to 200 g-cm
Stop Strength ..................... 3 kg-cm min.
Rotational Life ................... 15,000 cycles
Soldering Condition
............300 °C max. within 3 seconds
Hardware .............. No hardware supplied
Derating Curve
RECOMMENDED PCB LAYOUT
Product Dimensions
PDB12-H
L
PDB12-G
2.6
(.102)
DIA.
6.0
(.24)
3.7
(.145)
10.0
(.393)
12.4
DIA.
(.488)
L
F
8.7
(.342)
F
DIA.
6.0
(.24)
12.4
(.488)
DIA.
9.0
(.354)
4.5
(.177)
4.5
(.177)
1.5
(.059)
2.6
(.102)
4.5
(.177)
3.2
(.125)
1.5
(.059)
4.6
(.181)
30
°
3.0
4.5 (.118)
(.177)
6.0
(.236)
4.0
(.157)
1.5
(.059)
30
°
1.5
(.059)
1
2
7.5
(.295)
12.4
(.488)
3
1
2
12.6
(.496)
2.7
(.106)
7.5
(.295)
14.0
(.551)
3
Rating Power Ratio (%)
100
80
60
40
33
20
0
2.5
(.098)
RECOMMENDED PCB LAYOUT
10.0
(.393)
7.5
(.295)
DIA.
1.0
(.039)
3 PLCS.
0
10 20 30 40 50 60 70 80 90 100
Ambient Temperature (°C)
DIA.
1.0
(.039)
3 PLCS.
2.7
(.106)
7.5
(.295)
SHAFT SHOWN IN CCW POSITION
4.0
(.157)
12.0
(.472)
2.0
(.078)
PDB12 Dimensions
L
F
15
(.591)
7
(.276)
20
(.787)
7
(.276)
DIMENSIONS:
25
(.984)
12
(.472)
MM
(INCHES)
30
(1.181)
12
(.472)
SHAFT SHOWN IN CCW POSITION
2
1
SCHEMATIC
3
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.

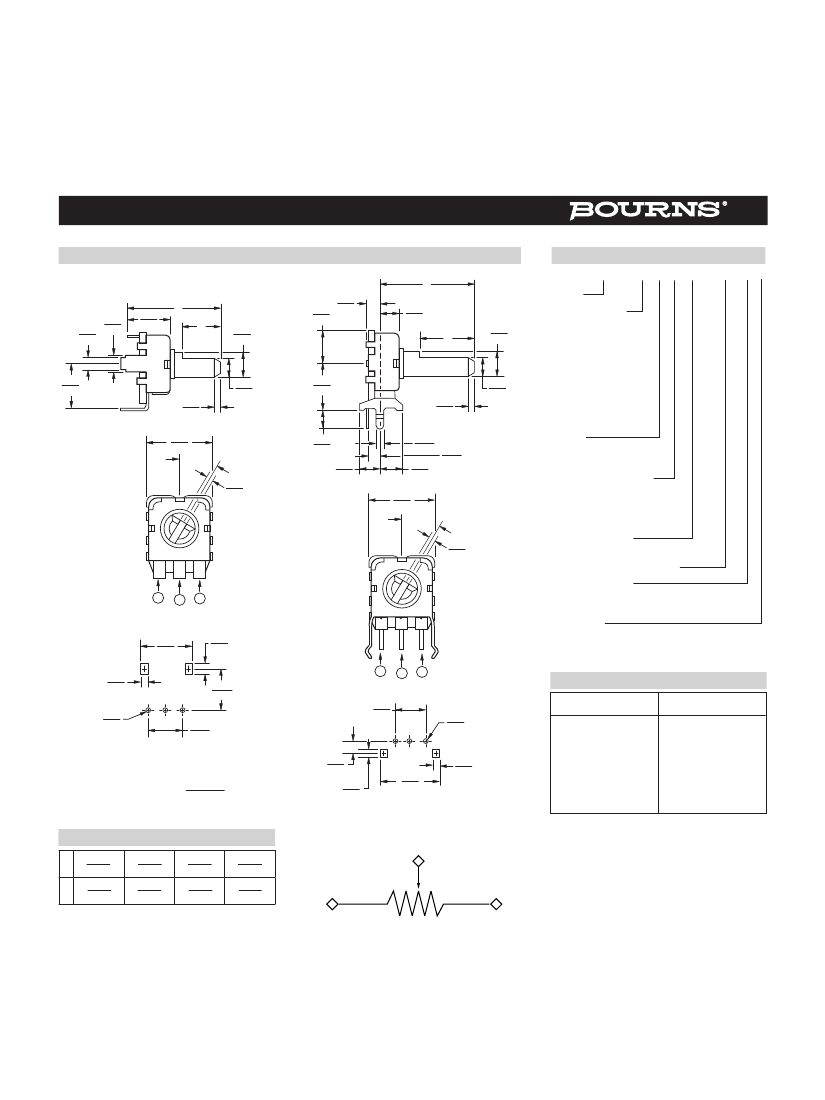

PDB12 Series - 12 mm Rotary Potentiometer
Product Dimensions
PDB12-M
9.0
(.354)
How To Order
PDB12-F
L
3.5
(.137)
PDB12 - H 4 20 1 - 103 A F
Model
DIA.
6.0
(.24)
L
2.6
(.102)
3.6
(.141)
F
DIA.
6.0
(.24)
6.5
(.255)
3.0
(.118)
F
10.0
(.393)
1.5
(.059)
4.5
(.177)
10.0
(.393)
1.5
(.059)
3.5
(.137)
4.5
(.177)
2.0
(.078)
4.5
(.177)
4.5
(.177)
Terminal Config.
(see individual drawings)
H = PC pins, rear facing
snap mount
G = PC pins, vertical/
down facing/
snap mount
M = PC pins, rear facing
F = PC pins, vertical/
down facing/
snap mount
Option
• 2 = Center Detent
• 4 = No Detent
Standard Shaft Length
• 15 = 15 mm
• 20 = 20 mm
• 25 = 25 mm
• 30 = 30 mm
12.8
(.503)
30°
3.0
(.118)
1.5
(.059)
30°
12.8
(.503)
1.5
(.059)
Number of Gangs
• 1 = Single Gang
Resistance Code (See Table)
Resistance Taper
• A = Audio Taper
• B = Linear Taper
1
RECOMMENDED PCB LAYOUT
12.6
(.496)
1.6
(.062)
DIA.
1.0
(.039)
3 PLCS.
2
3
2.7
(.106)
Shaft Style
• F = Flat Type Insulated Shaft
Other styles available.
1
2
3
10.0
(.393)
RECOMMENDED PCB LAYOUT
7.5
(.177)
DIA.
1.0
(.039)
3 PLCS.
1.6
(.062)
Standard Resistance Table
Resistance
(Ohms)
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
Resistance
Code
102
202
502
103
203
503
104
204
504
105
7.5
(.295)
3.0
(.118)
2.1
(.082)
SHAFT SHOWN IN CCW POSITION
DIMENSIONS:
MM
(INCHES)
14.4
(.566)
SHAFT SHOWN IN CCW POSITION
PDB12 Dimensions
L
F
15
(.591)
7
(.276)
20
(.787)
7
(.276)
25
(.984)
12
(.472)
30
(1.181)
12
(.472)
1
SCHEMATIC
3
2
REV. 09/16
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
