HMC712ALP3C
v00.1115
GaAs MMIC VOLTAGE-VARIABLE
ATTENUATOR, 5 - 26.5 GHz
Typical Applications
The HMC712ALP3CE is ideal for:
Features
Wide Bandwidth: 5 - 26.5 GHz
Excellent Linearity: +28 dBm Input P1dB
Wide Attenuation Range: 28 dB
Absorptive Topology
Singe or Dual Control Operation
16 Lead 3x3mm SMT Package: 9mm²
ATTENUATOR - ANALOG - SMT
• Point-to-Point Radio
• VSAT Radio
• Test Instrumentation
• Microwave Sensors
• Military, ECM & Radar
el
Pr
Parameter
Insertion Loss
Attenuation Range
Input Return Loss
Output Return Loss
Input Power for 1 dB Compression (any attenuation)
Input Third Order Intercept
(Two-tone Input Power = 10 dBm Each Tone)
The HMC712ALP3CE is an absorptive Voltage Var-
iable Attenuator (VVA) which operates from 5 - 26.5
GHz and is ideal in designs where an analog DC
control signal must be used to control RF signal
levels over a 28 dB amplitude range. It features two
shunt-type attenuators which are controlled by two
analog voltages, Vctrl1 and Vctrl2. Optimum linearity
performance of the attenuator is achieved by first
varying Vctrl1 of the 1st attenuation stage from -3V
to 0V with Vctrl2 fixed at -3V. The control voltage of
the 2nd attenuation stage, Vctrl2, should then be
varied from -3V to 0V, with Vctrl1 fixed at 0V. The
HMC712ALP3CE
is
housed
in
a
RoHS
compliant 3x3 mm QFN leadless package
However, if the Vctrl1 and Vctrl2 pins are connected
together it is possible to achieve the full analog
attenuation range with only a small degradation
in input IP3 performance. Applications include
AGC circuits and temperature compensation of
multiple gain stages in microwave point-to-point and
VSAT radios.
Electrical Specifications,
T
A
= +25° C, 50 Ohm system
Min.
5 - 16 GHz
16 - 24 GHz
24 - 26.5 GHz
Typ.
3.5
4.5
5.5
28
12
10
28
32
Max.
Units
dB
dB
dB
dB
dB
dB
dBm
dBm
im
1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
in
ar
For price, delivery, and to place orders: Analog Devices, Inc.,
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
y
Functional Diagram
General Description
HMC712ALP3C
v00.1115
GaAs MMIC VOLTAGE-VARIABLE
ATTENUATOR, 5 - 26.5 GHz
Absolute Maximum Ratings
RF Input Power
Control Voltage Range
Channel Temperature
Continuous Pdiss (T = 85 °C)
Thermal Resistance
(Channel to ground paddle)
Storage Temperature
Operating Temperature
ESD Sensitivity (HBM)
+30 dBm
+1 to -5V
150 °C
1W
66 °C/W
-65 to +150 °C
-40 to +85 °C
Class 1A
Control Voltages
Vctrl2
-3 to 0V @ 10 µA
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS

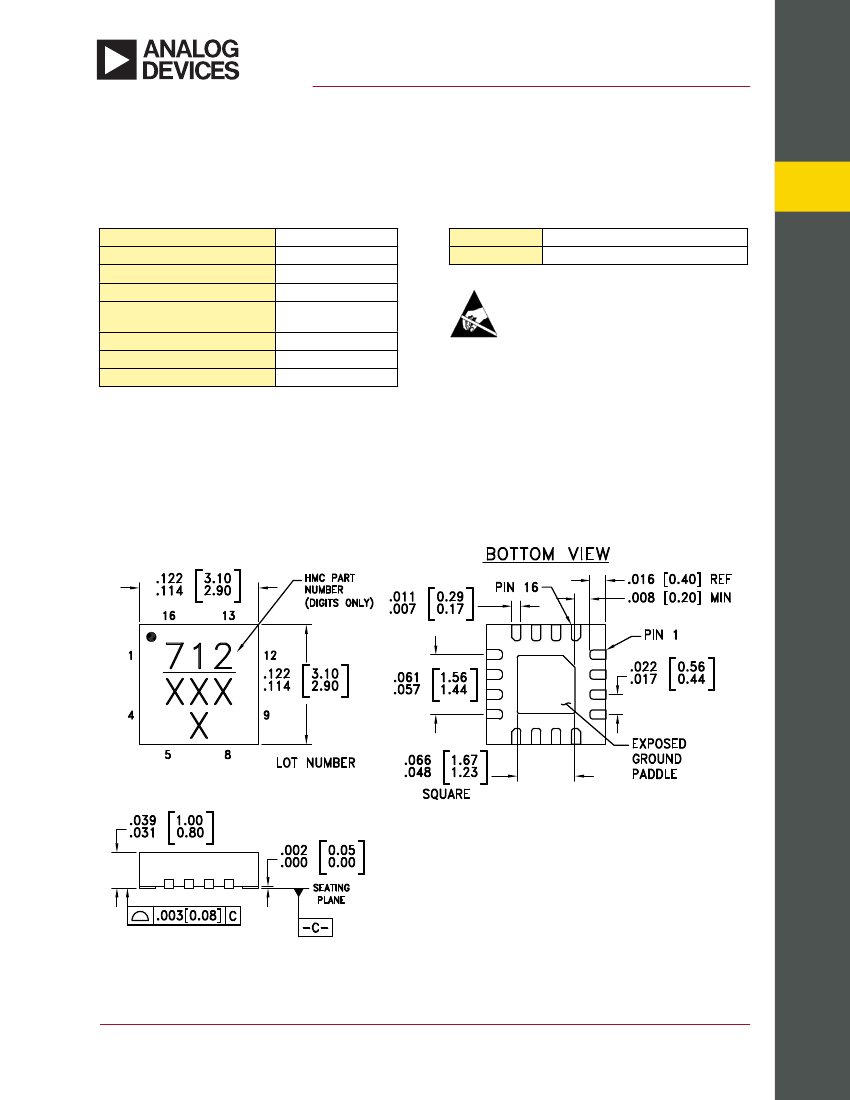

Outline Drawing
Pr
For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
el
im
NOTES:
1. PACKAGE BODY MATERIAL: LOW STRESS INJECTION MOLDED
PLASTIC SILICA AND SILICON IMPREGNATED.
2. LEAD AND GROUND PADDLE MATERIAL: COPPER ALLOY.
3. LEAD AND GROUND PADDLE PLATING: 100% MATTE TIN.
4. DIMENSIONS ARE IN INCHES [MILLIMETERS].
5. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.
6. PAD BURR LENGTH SHALL BE 0.15mm MAX.
PAD BURR HEIGHT SHALL BE 0.05mm MAX.
7. PACKAGE WARP SHALL NOT EXCEED 0.05mm
8. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED
TO PCB RF GROUND.
9. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED PCB
LAND PATTERN.
ATTENUATOR - ANALOG - SMT
2
Vctrl1
-3 to 0V @ 10 µA
in
ar
y
