DMT3009LDT Overview

N-CHANNEL ENHANCEMENT MODE MOSFET

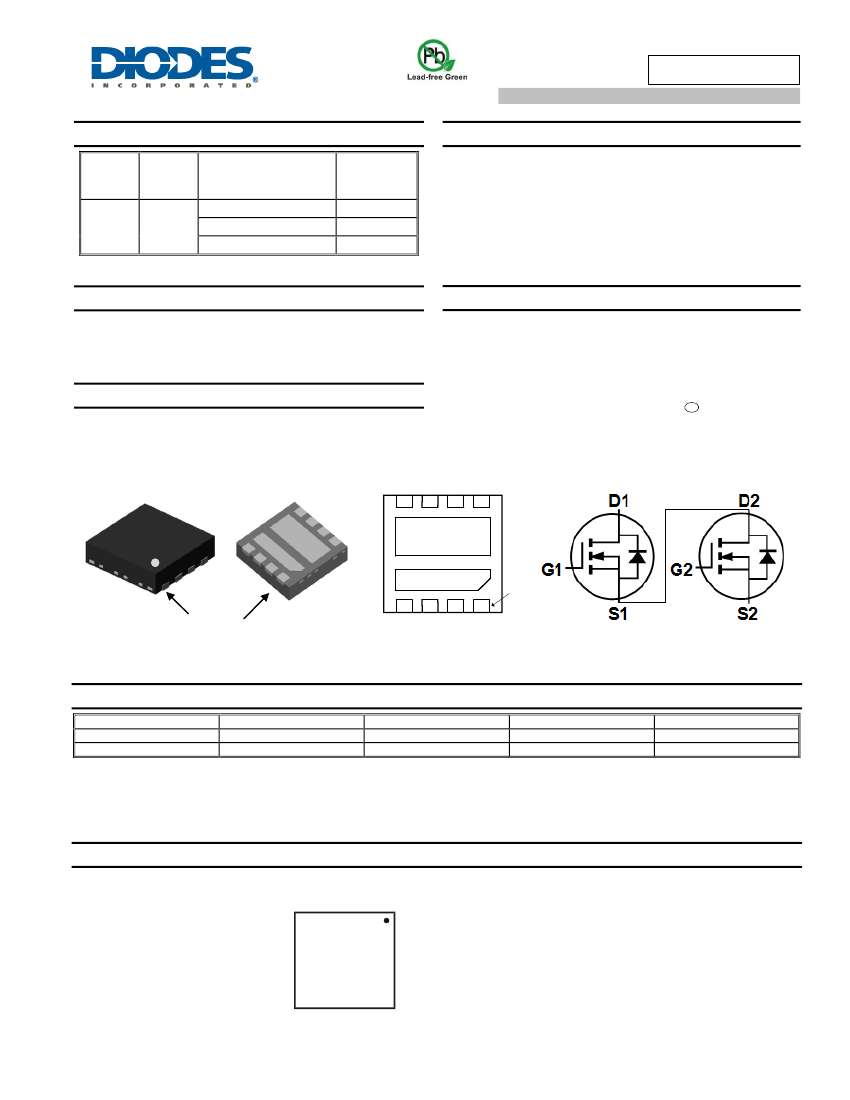

DMT3009LDT
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Device
BV
DSS
R
DS(ON)
Max
11.1mΩ @ V
GS
= 10V
I
D
Max
T
C
=
+25°
C
(Note 10)
30A
28A
22A
Features and Benefits
Low Gate Threshold Voltage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
NEW PRODUCT
ADVANCE INFORMATION
NEW PRODUCT
Q1 & Q2
30V
13.8mΩ @ V
GS
= 4.5V
22.0mΩ @ V
GS
= 3.8V
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
), yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.
Mechanical Data
Case: V-DFN3030-8 (Type K)
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
e4
Weight: 0.02 grams (Approximate)
Applications
General Purpose Interfacing Switch
Power Management Functions
V-DFN3030-8 (Type K)
S2
5
S2
6
S2
7
G2
8
Q1
Q2
S1/D2
D1
4
D1
3
D1
2
D1
1
G1
PIN 1
PIN 1
Top View
PIN 1
Bottom View
Bottom View
Internal Schematic
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
DMT3009LDT-7
DMT3009LDT-7A
Notes:
Case
V-DFN3030-8 (Type K)
V-DFN3030-8 (Type K)
Tape Width
8mm
12mm
Tape Pitch
4mm
8mm
Packaging
3,000/Tape & Reel
1,500/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See http://www.diodes.com/quality/lead_free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
V-DFN3030-8 (Type K)
T30= Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 18 = 2018)
WW = Week Code (01 to 53)
T30
YYWW
DMT3009LDT
Document number: DS37810 Rev. 6 - 2
1 of 8
www.diodes.com
June 2018
© Diodes Incorporated
