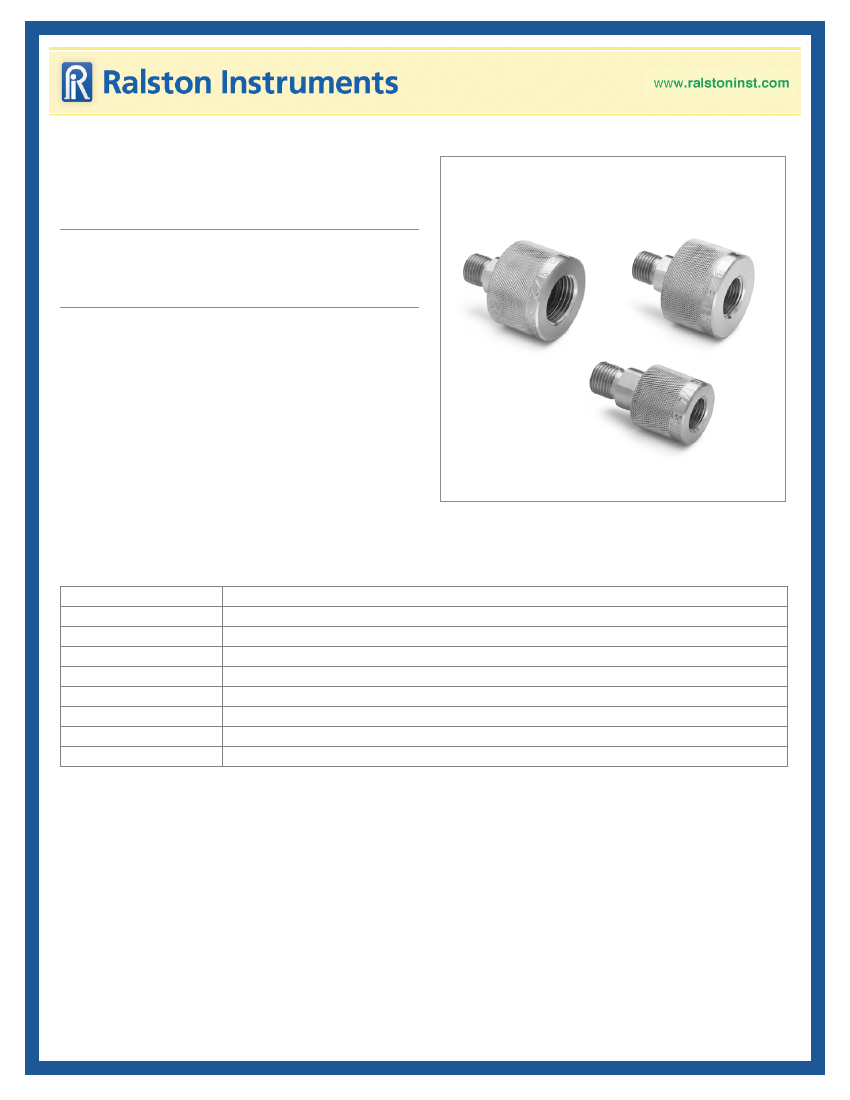

Part No.

QTHA-4FS0-RG-QD

1/2" female BSPP quick-disconnect x male Quick-test, S.S.

Connect directly to the bottom of BSPP

pressure gauges without a bonded seal or

crush washer

Features

• A unique design allows connection to any male BSPP

connections using a pressure-assisted o-ring seal

• Pressure helps to seal the fitting better

• Stainless steel construction

• Made in USA

QTHA-4FS0-RG-QD

Specifications

Pressure Range

End C1

End C2

Has Check Valve

Temperature range

Construction

Seal materials

Dimensions A

Dimensions B

0 to 5000 psi (0 to 345 bar)

1/2" Female BSPP with Quick-Disconnect

Male Quick-test

No

0 to 225 °F (-18 to 107 °C)

Stainless Steel

Buna-N, Teflon

1.72 in (4.37 cm)

1.38 in (3.51 cm)

Ralston Instruments Inc. | ralstoninst.com | Toll Free 800-347-6575 | Phone 440-564-1430 | Fax 440-564-1480
