Si5376
4-PLL A
NY
- F
REQUENCY
P
RECISION
C
LOCK
M
ULTIPLIER
/J
I T T E R
A
TTENUA TOR
Features
Highly-integrated, 4 PLL clock
multiplier/jitter attenuator
Four independent DSPLLs support
any-frequency synthesis and jitter
attenuation
8 inputs/8 outputs
Each DSPLL can generate any
frequency from 2 kHz to 808 MHz
from a 2 kHz to 710 MHz input
350 fs rms (12 kHz– 20 MHz) and
410 fs rms (50 kHz–80 MHz)
typical
Meets ITU-T G.8251 and Telcordia
GR-253-CORE OC-192 jitter
specifications
Programmable loop bandwidth:
60 Hz to 8 kHz
Faster lock acquisition compared to
the Si5374: <1.2 s
For a very low-loop BW version, see
the Si5374
Supports all ITU G.709 and any
custom FEC ratios (239/237,
255/238, 255/237, 255/236, 253/226)
Integrated loop filter with
programmable bandwidth
Simultaneous free-run and
synchronous operation
Automatic/manual hitless input clock
switching
Selectable output clock signal format
(LVPECL, LVDS, CML, CMOS)
LOL and interrupt alarm outputs
I
2
C programmable
Single 1.8 V ±5% or 2.5 V ±10%
operation with high PSRR on-chip
voltage regulator
10x10 mm PBGA
Ordering Information:
See page 61.
Applications
High-density, any-port, any-protocol,
any-frequency line cards
ITU-T G.709 OTN custom FEC
10/40/100G
OC-48/192, STM-16/64
1/2/4/8/10G Fibre Channel
GbE/10 GbE Synchronous Ethernet
Carrier Ethernet, multi-service
switches and routers
MSPP, ROADM, P-OTS,
muxponders
Description
The Si5376 is a highly-integrated, 4-PLL, jitter-attenuating precision clock
multiplier for applications requiring sub-1 ps jitter performance. Each of the
DSPLL
®
clock multiplier engines accepts two input clocks ranging from 2 kHz to
710 MHz and generates two independent synchronous output clocks ranging
from 2 kHz to 808 MHz. The device provides virtually any frequency translation
combination across this operating range. For asynchronous, free-running clock
generation applications, the Si5376’s reference oscillator can be used as a clock
source for any of the four DSPLLs. The Si5376 input clock frequency and clock
multiplication ratio are programmable through an I
2
C interface. The Si5376 is
based on Silicon Laboratories’ third-generation DSPLL
®
technology, which
provides any-frequency synthesis and jitter attenuation in a highly-integrated
PLL solution that eliminates the need for external VCXO and loop filter
components. Each DSPLL loop bandwidth is digitally-programmable, providing
jitter performance optimization at the application level. The device operates from
a single 1.8 or 2.5 V supply with on-chip voltage regulators with excellent PSRR.
The Si5376 is ideal for providing clock multiplication and jitter attenuation in
high-port-count optical line cards requiring independent timing domains.
Rev. 1.0 9/12
Copyright © 2012 by Silicon Laboratories

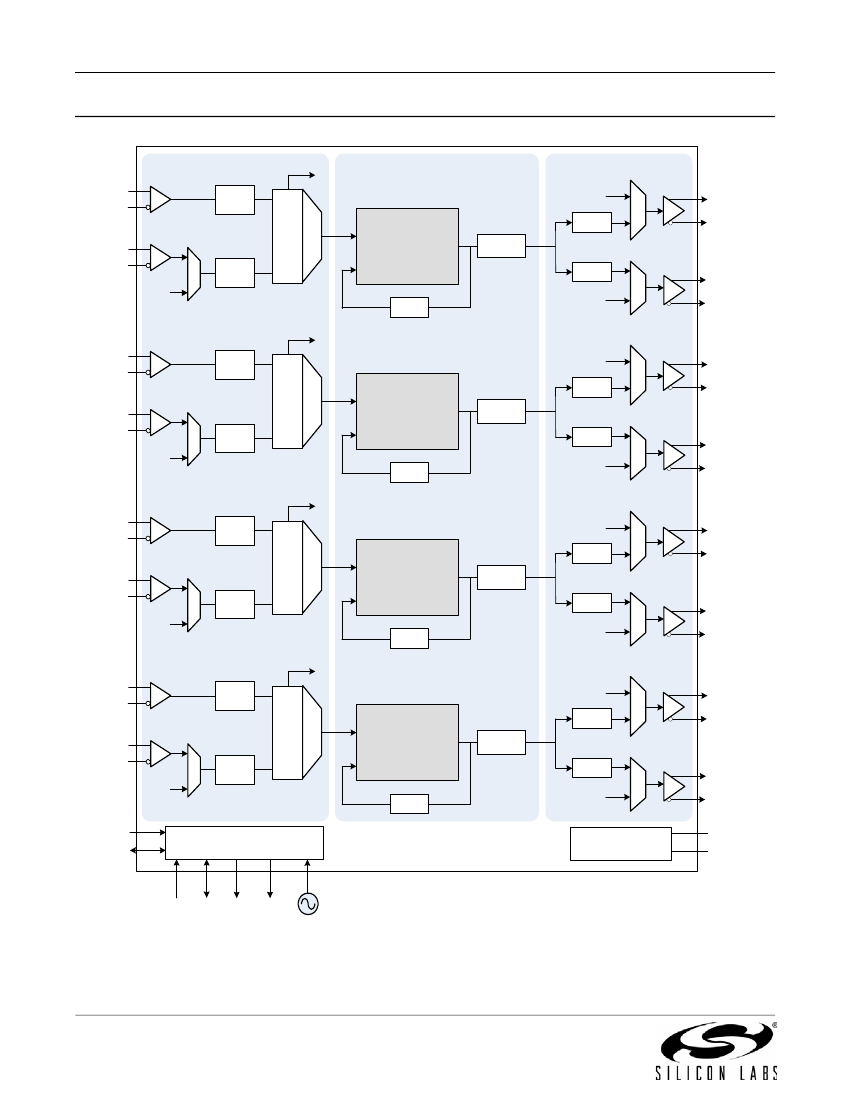

Si5376
Si5376
T
ABLE
Section
OF
C
ONTENTS
Page
1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2. Typical Application Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3. Typical Phase Noise Plot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. Si5376 Application Examples and Suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
5.1. Schematic and PCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.2. Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3. SCL Leakage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.4. RSTL_x Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.5. Reference Oscillator Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.6. Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.7. OSC_P and OSC_N Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6. Register Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7. Register Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
7.1. ICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
8. Pin Descriptions: Si5376 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
9. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
10. Package Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
11. Recommended PCB Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
12. Top Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
12.1. Si5376 Top Marking (PBGA, Lead-Free) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
12.2. Top Marking Explanation (PBGA, Lead-Free) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
12.3. Si5376 Top Marking (PBGA, Lead-Finish) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
12.4. Top Marking Explanation (PBGA, Lead-Finish) . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
