Resistors And
Resistive Applications
CTR
High Voltage Resistors - High Power Resistors - High Energy Resistors
■
FEATURES
Series 800 and 1000 Ceramic Tubular Resistors(CTR) are available in a wide variety of
sizes and terminations from 2" to 24" in length and ½" to 2 " in diameter. These
resistors can handle up to 1000 watts, 165 KJ and 165 KV in resistance values from 1
ohm to 1 megohm.
■
APPLICATIONS
Type SP
- Motor drive circuits
- Snubber circuits
- High-frequency circuits
- RF dummy loads
- Dynamic braking
- Transformer Protection
- Harmonic filter
Type AS
- Impulse generators
- High-voltage circuits
- X-ray equipment
- High voltage power supplies
- Laser/Imaging equipment
- Capacitor charge/discharge
Type A
- Bleeder
- Capacitor charge/discharge
… just to name a few uses
■

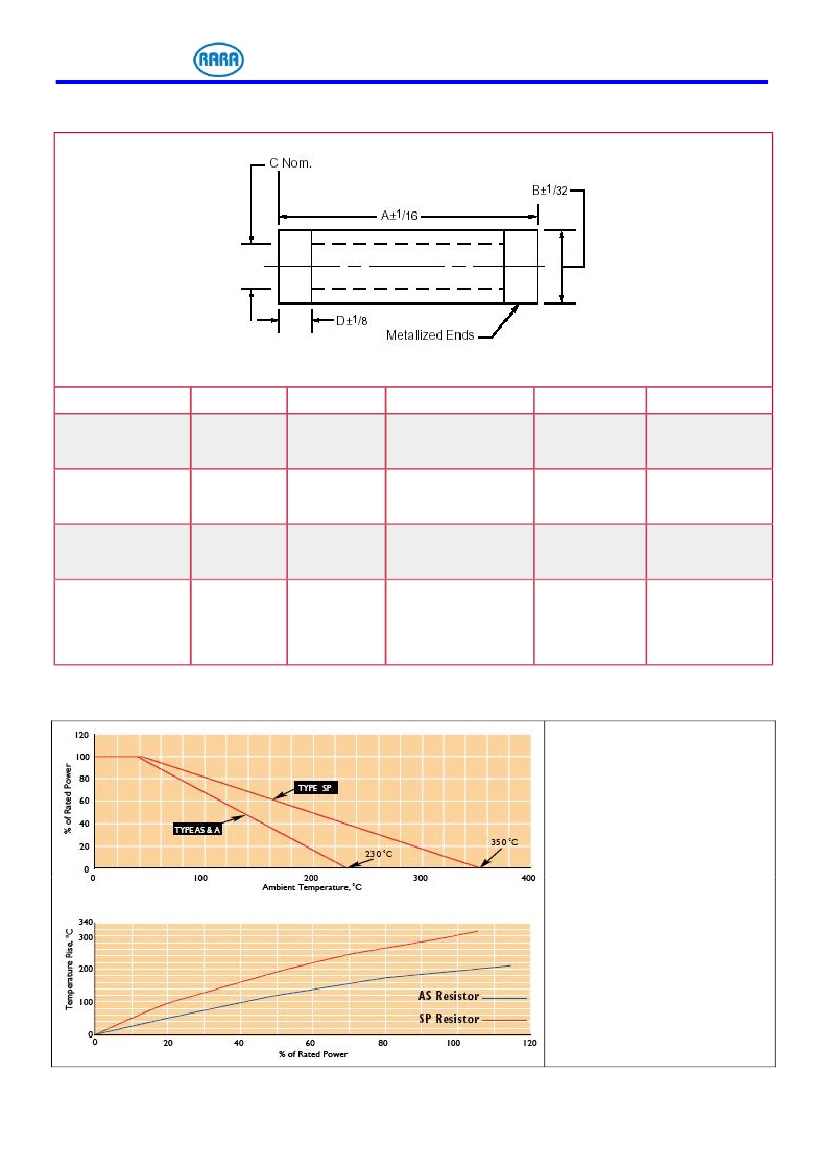

CHARACTERISTICS
Characteristics
Maximum operating
temperature **
Temperature
coefficient(%/℃)
Voltage coefficient
Short time overload
Load Life
Thermal Shock
Moisture resistance
Type SP
-55°C to
+350°C
+0.2 to
-0.08%/℃
-1.0%
±
5%
±
5%
± 3%
±
5%
Type AS
-55°C to
+230°C
+0.0 to
-0.08%/℃
-1.0%
± 2%
±
5%
± 3%
±
5%
Type A
-55°C to
+230°C
+0.0 to
-0.2%/℃
-
-
-
-
±
5%
maximum percent change
when tested per MIL-STD-202 Method 103
percent per °C, -55°C to maximum rated temperature
Maximum percent per kilovolt per inch active length
(overall length less termination)
maximum percent change after 5 cycles
10 times rated power, 5 seconds on, 90 seconds off
Max. % change after 1000hours at rated power
** Note : When required, Type SP material can withstand short periods of use at red-heat conditions, i.e. up to 550℃ to 600℃
■

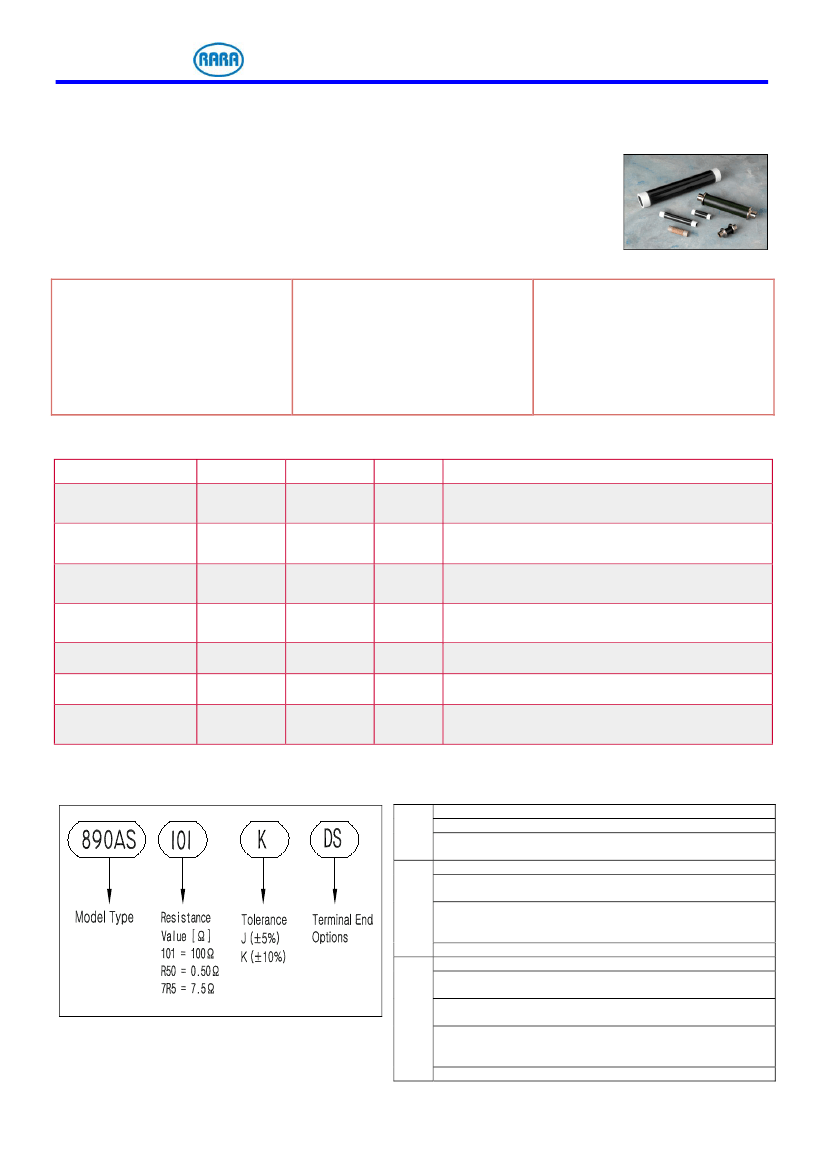

ORDERING PROCEDURE EXAMPLE & Terminal End Options
SP
No Suffix=Standard aluminum Metalized ends
No-arc terminal not available on SP products
G=Radial tab, riveted and soldered
G1=Radial tab, riveted and no solder
DS=Standard dielectric coating and silver metalized ends
N=No-arc terminal and dielectric coating
NO=No-arc terminal with oil resistant coating
DG=Radial tab, riveted and soldered with dielectric coating
DG1=Radial tab, riveted and no solder with dielectric coating
GO=Radial tab, riveted and soldered with oil resistant coating
TO=Soldered end and oil resistant coating
No Suffix=Standard nickel metalized ends
D=Dielectric coating
DG=Radial tab, riveted and soldered with dielectric coating
N=No-arc terminal and dielectric coating
NO=No-arc terminal with oil resistant coating
DG=Radial tab, riveted and soldered with dielectric coating
DG1=Radial tab, riveted and no solder with dielectric coating
GO=Radial tab with oil resistant coating
TO=Soldered end and oil resistant coating
AS
A
Website :
http://www.raraohm.com
Email :
sales1@raraohm.com
DEC.4.2008
