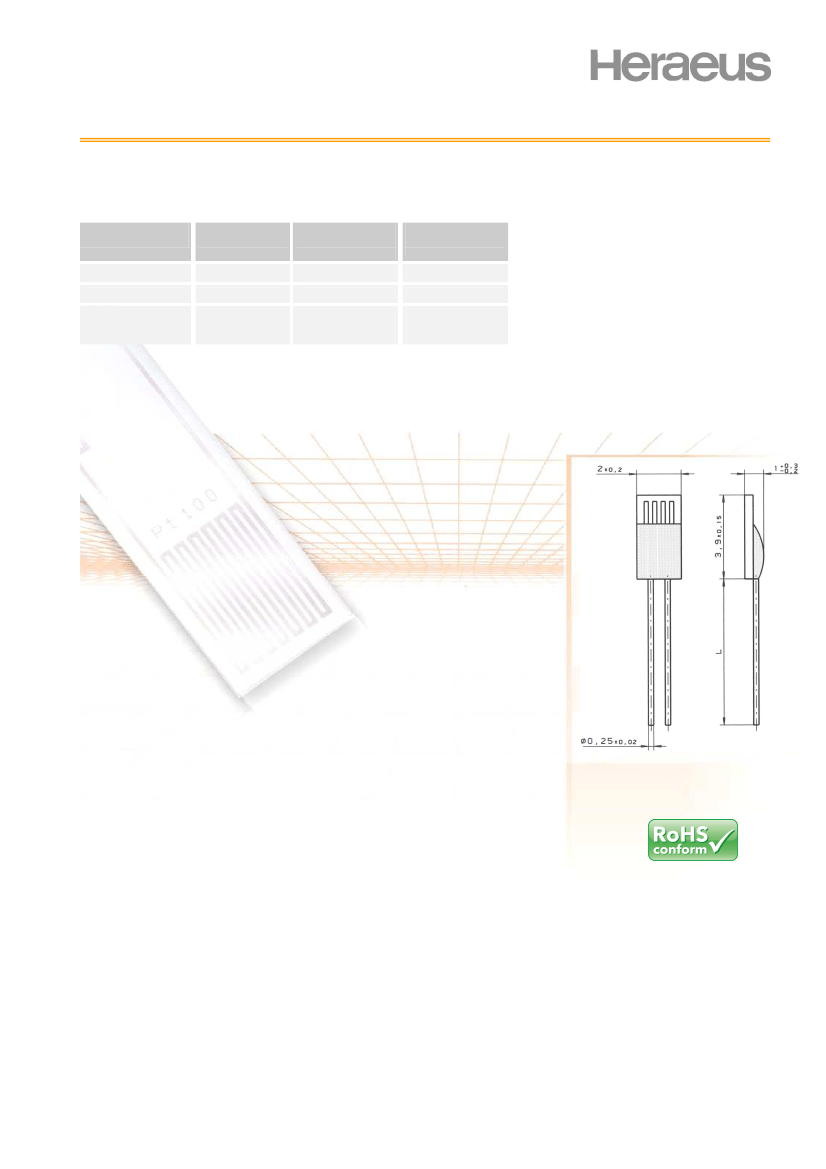

Platinum Resistance Temperature Detector
L 420
L series PRTDs are designed for large volume applications where long term stability, interchangeability and accuracy over
a large temperature range are vital. Typical applications are Automotive, White goods, HVAC, Energy management,
Medical and Industrial equipment.
Nominal
Resistance R0
100 Ohm at 0°C
500 Ohm at 0°C
1000 Ohm at 0°C
Toler ance
DIN EN 60751
1996-07
Class B
Class B
Clas s 1/3 B
Class A
Class B
Tolerance
DIN EN 60751
2009-05
F 0.3
F 0.3
F 0.1
F 0.15
F 0.3
Or der Number
Plastic Bag
32 207 702
32 207 703
32 207 587
32 207 582
32 207 704
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.
Specification
Temperature range
DIN EN 60751 (according to IEC 751)
-50°C to + 400°C (continuous operation)
Tolerance Class B:
-50°C to +400°C
Tolerance Class A:
-50°C to +300°C
Tolerance Class 1/3 B:
0°C to +150°C
TCR = 3850 ppm/K
AgPd- wire
10mm ±1mm
max. R0-drift 0.04% after 1000h at 400°C
at least 40g acceleration at 10 to 2000 Hz
,
depends on installation
at least 100g acceleration with 8ms
half sine wave, depends on installation
unhoused for dry environments only
> 100 MΩ at 20°C; > 2 MΩ at 500°C
0.3 K/mW at 0°C
water current (v= 0.4m/s):
air stream (v= 2m/s):
Temperature coefficient
Leads
Lead lengths (L)
Long
-
term stability
Vibration resistance
Shock resistance
Environmental conditions
Insulation resistance
Self heating
Response time
t
0.5
= 0.08s
t
0.9
= 0.25s
t
0.5
= 3.5s
t
0.9
= 15.0s
Measuring current
100Ω: 0.3 bis 1.0 mA
500Ω: 0.1 bis 0.7 mA
1000Ω: 0.1 bis 0.3 mA
(self heating has to be considered)
Other tolerances, values of resistance and
wire lengths are available on request
.
Note
We reserve the right to make alterations and technical data printed. All technical data serves as a guideline and does not guarantee
particular properties to any products.
