SCI-9920-501: Description1 FUNCTIONS, 200 V, 5 A, FEED THROUGH CAPACITOR; CategoryPassive components; File Size70KB，1 Pages; ManufacturerETC2

Download Datasheet Parametric Compare View All

SCI-9920-501 Overview

1 FUNCTIONS, 200 V, 5 A, FEED THROUGH CAPACITOR

SCI-9920-501 Parametric

Parameter Name	Attribute value
Number of functions	1
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
Processing package description	HERMETIC SEALED PACKAGE-2
state	Active
filter type	FEED THROUGH CAPACITOR
capacitance	500 pF
Maximum DC resistance	0.0100 ohm
diameter__mm_	4.04
Maximum insertion loss	40 dB
jesd_609_code	e4
Manufacturer Series	SCI-9920-501
Installation type	THROUGH HOLE MOUNT
cking_method	BAG
Dimensions	D4.04XH2.79 (mm)/D0.159XH0.11 (inch)
Rated current	5 A
Rated voltage	200 V
terminal coating	GOLD
heigh	2.79 mm
dditional_feature	C-TYPE CIRCUIT

Preview

Download Datasheet

View All

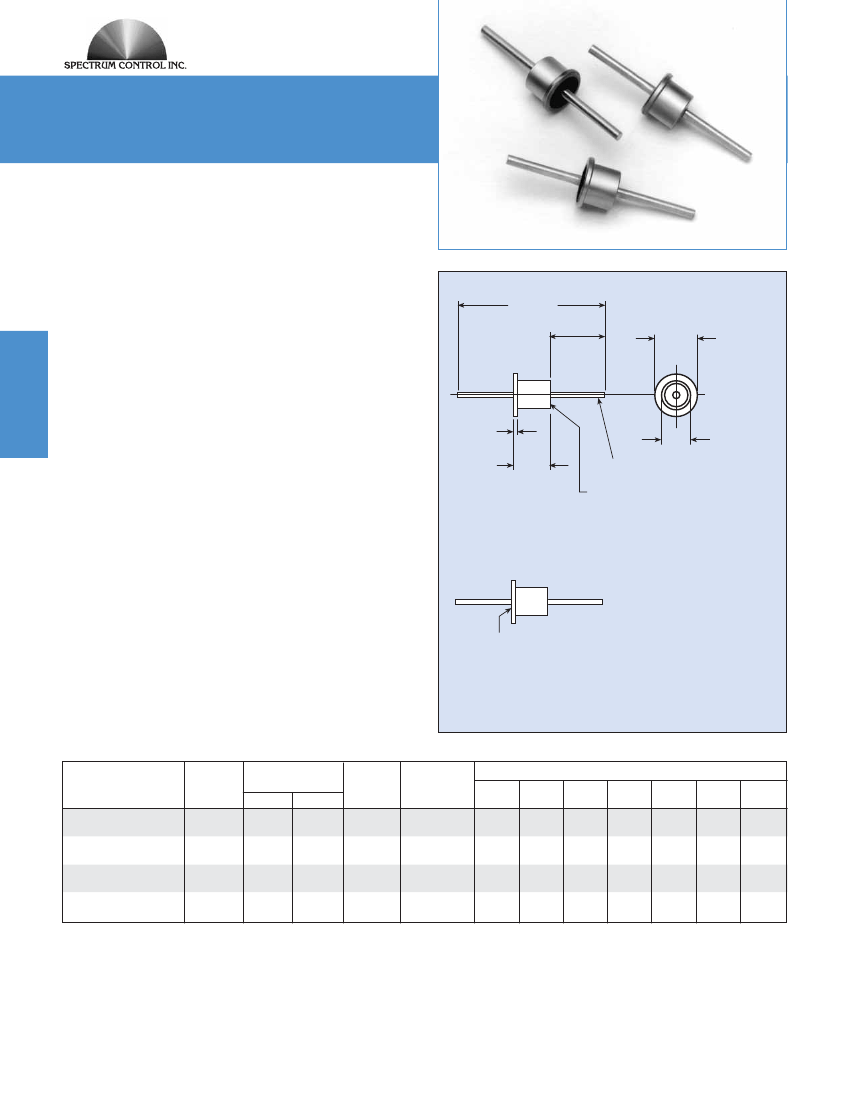

Miniature Solder-in Filters

These filters are ideal for microwave applications such

as attenuators and oscillators, and perform well in high

impedance circuits where large capacitance values are

not practical.

Features

s

Miniature size to allow effective use of space

Standard capacitance values from 5pF to .030µF

Voltage ratings to 200 VDC/115 VAC 0–400 Hz

Hermetically sealed on one end allows for

thru-hole sealing between compartments

High temperature construction meets MIL-F-28861

solderability and resistance to soldering

heat requirements

Available in MIL-C-11015 versions — see page 239

Gold plating compatible with gold bonding techniques

.020±.005

(0.51±0.13)

.110±.005

(2.79±0.13)

.625 Ref.

(15.88)

.25±.03

(6.35±0.76)

ø .156

±.005

(3.96

±0.13)

s

Low Pass Filters

ø .030

(ø 0.76)

Glass Seal (STD)

ø .128±.005

(3.25±0.13)

s

Figure 1

Marking

Color dot standard as follows:

q

101 Green –

501 Brown –

100pF

500pF

q

272 Red

–

2700pF

5000pF

Glass Seal (Reverse)

502 Blue –

153 Pink

102 Purple – 1000pF

122 White – 1200pF

– 15000pF

Figure 1 (Reverse)*

Dimensions in inches

(mm)

000 None – 10pF max

Miniature Solder-in C Circuit

Part Number*

SCI-9900-153

SCI-9900-303

¦

SCI-9910-272

¦

SCI-9910-502

SCI-9900-000

¦

SCI-9920-101

¦

SCI-9920-501

¦

SCI-9920-122

Figure

1

Rated Voltage

125°C

AC

DC

50

100

200

115

200

115

200

115

Minimum Insertion Loss (dB)

I

Amp

5

Min

Cap

0.015 µF

0.030 µF

2700 pF

5000 pF

4 pF max.

100 pF

500 pF

1200 pF

1

MHz

7

10

—

10

MHz

25

30

10

15

—

5

30

MHz

30

35

18

20

—

10

100

MHz

40

45

25

30

—

3

15

20

300

MHz

40

50

33

35

—

10

22

28

1

GHz

60

55

40

45

10

20

35

10

GHz

60

55

50

55

10

28

40

45

* For reverse glass seal add an “R” to the end of the part number (SCI-9900-153R).

¦

Also available through Spectrum Control’s authorized distributors.

70

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-474-2207 • Fax: 814-474-2208 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
