PVHT2010H2773WGT63 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PVHT2010H2773WGT63

PVHT2010H2773WGT63: DescriptionFixed Resistor, Thin Film, 0.2W, 277000ohm, 300V, 0.05% +/-Tol, 2010,; CategoryPassive components The resistor; File Size100KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

PVHT2010H2773WGT63 Overview

Fixed Resistor, Thin Film, 0.2W, 277000ohm, 300V, 0.05% +/-Tol, 2010,

PVHT2010H2773WGT63 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	991786470
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Number of terminals	2
Maximum operating temperature	250 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	5.08 mm
Package form	SMT
Package width	2.54 mm
method of packing	TR
Rated power dissipation(P)	0.2 W
resistance	277000 Ω
Resistor type	FIXED RESISTOR
series	PVHT
size code	2010
technology	THIN FILM
Tolerance	0.05%
Operating Voltage	300 V

Preview

Download Datasheet

View All

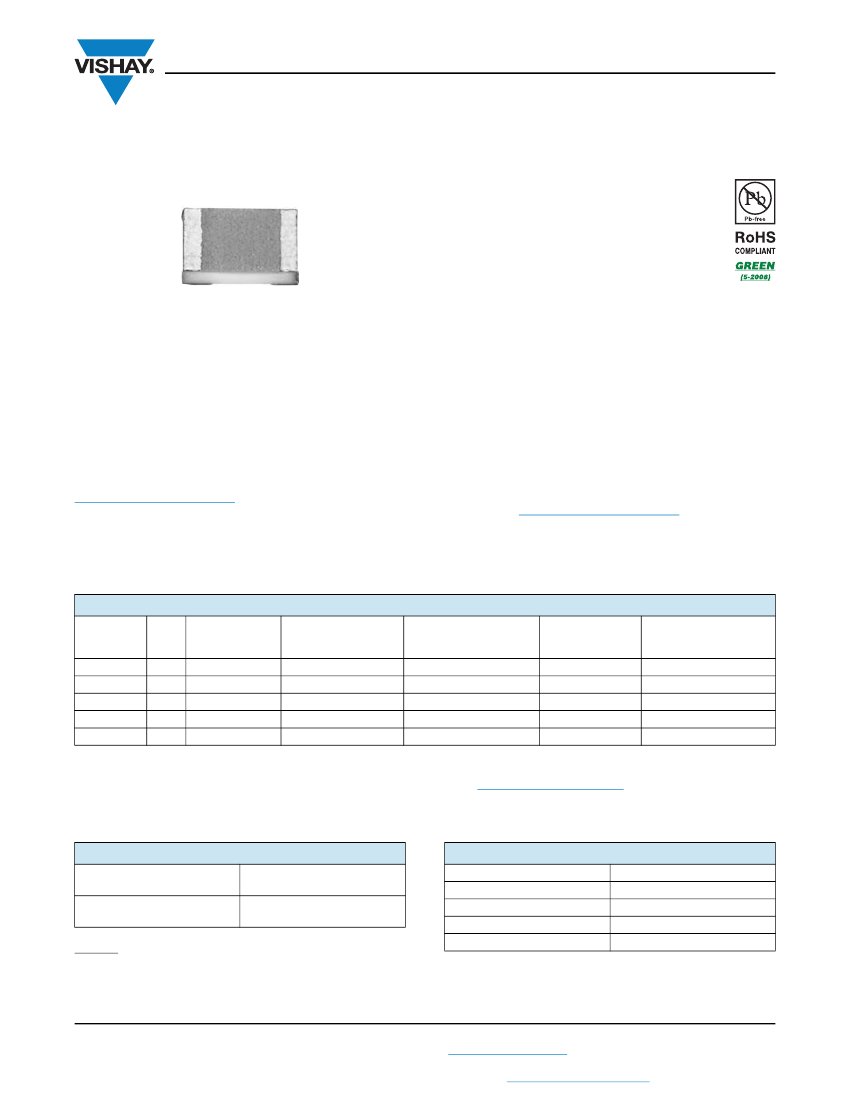

PVHT

www.vishay.com

Vishay Sfernice

High Stability - Very High Temperature (270 °C)

Thin Film Wraparound Chip Resistors

FEATURES

• Operating temperature range:

- 55 °C; + 250 °C

• Storage temperature: - 55 °C; + 270 °C

• Gold terminations (< 1 μm thick)

• 5 sizes available (0402, 0603, 0805, 1206,

2010); other sizes upon request

• Temperature coefficient down to 5 ppm/°C typical,

10 ppm/°C maximum (- 55 °C; + 270 °C)

• Tolerance down to 0.05 %

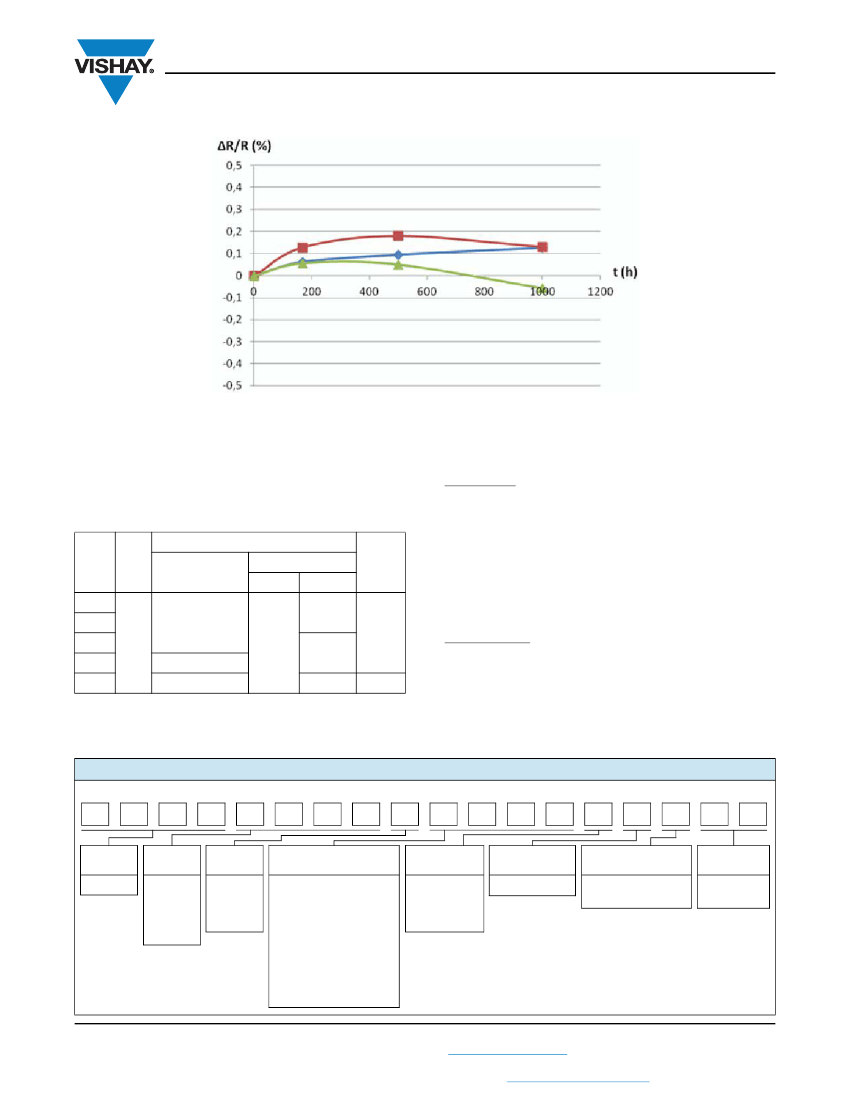

• Load life stability: 0.5 % max. after 1000 h at 250 °C

(ambient) at Pn

• Shelf life stability: 0.5 % max. after 1000 h at 270 °C and

0.1 % max. after 1000 h at 230 °C

• SMD wraparound

• 0.02 % upon request

• TCR remains constant after long term storage at 270 °C

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

INTRODUCTION

For applications such as down hole applications, the need

for parts able to withstand very severe conditions

(temperature as high as 250 °C powered or up to 270 °C

un-powered) has leaded Vishay Sfernice to push out the

limit of the thin film technology.

Designers might read the application note: Power

Dissipation Considerations in High Precision Vishay

Sfernice Thin Film Chip Resistors and Arrays

(P, PRA etc…) (High Temperature Application)

www.vishay.com/doc?53047

in conjunction with this

datasheet to help them to properly design their PCBs and

get the best performances of the PVHT.

Vishay Sfernice R&D engineers will be willing to support any

customer design considerations.

STANDARD ELECTRICAL SPECIFICATIONS

MODEL

PVHT0402

PVHT0603

PVHT0805

PVHT1206

PVHT2010

SIZE

0402

0603

0805

1206

2010

RESISTANCE

RANGE



10 to 55K

10 to 150K

10 to 300K

10 to 1.1M

10 to 3M

RATED POWER

(1)(2)

250 °C

0.031

0.062

0.100

0.165

0.2

LIMITING ELEMENT

VOLTAGE

150

200

300

TOLERANCE

±%

0.05, 0.1, 0.5, 1

TEMPERATURE

COEFFICIENT

(3)

± ppm/°C

10, 15, 25, 30, 50, 55

Notes

(1)

For power handling improvement, please refer to application note 53047: Power Dissipation Considerations in High Precision Vishay

Sfernice Thin Film Chip Resistors and Arrays (High Temperature Applications)

www.vishay.com/doc?/53047

and consult Vishay Sfernice

(2)

See Table 2 on next page

(3)

See Table 1 on next page

CLIMATIC SPECIFICATIONS

Operating temperature range

Storage temperature range

- 55 °C; + 250 °C

- 55 °C; + 270 °C

MECHANICAL SPECIFICATIONS

Substrate

Resistive Element

Passivation

Protection

Terminations

Alumina

Thin Film

Silicon nitride (Si

)

Epoxy + Silicone

Gold (< 1 μm) over nickel barrier

Caution:

Performances obtained with following mounting conditions:

PCB: Alumina

Solder paste: PbSnAg (93.5/5/1.5)

Revision: 23-Jan-13

Note

• For other terminations, please consult

Document Number: 53060
