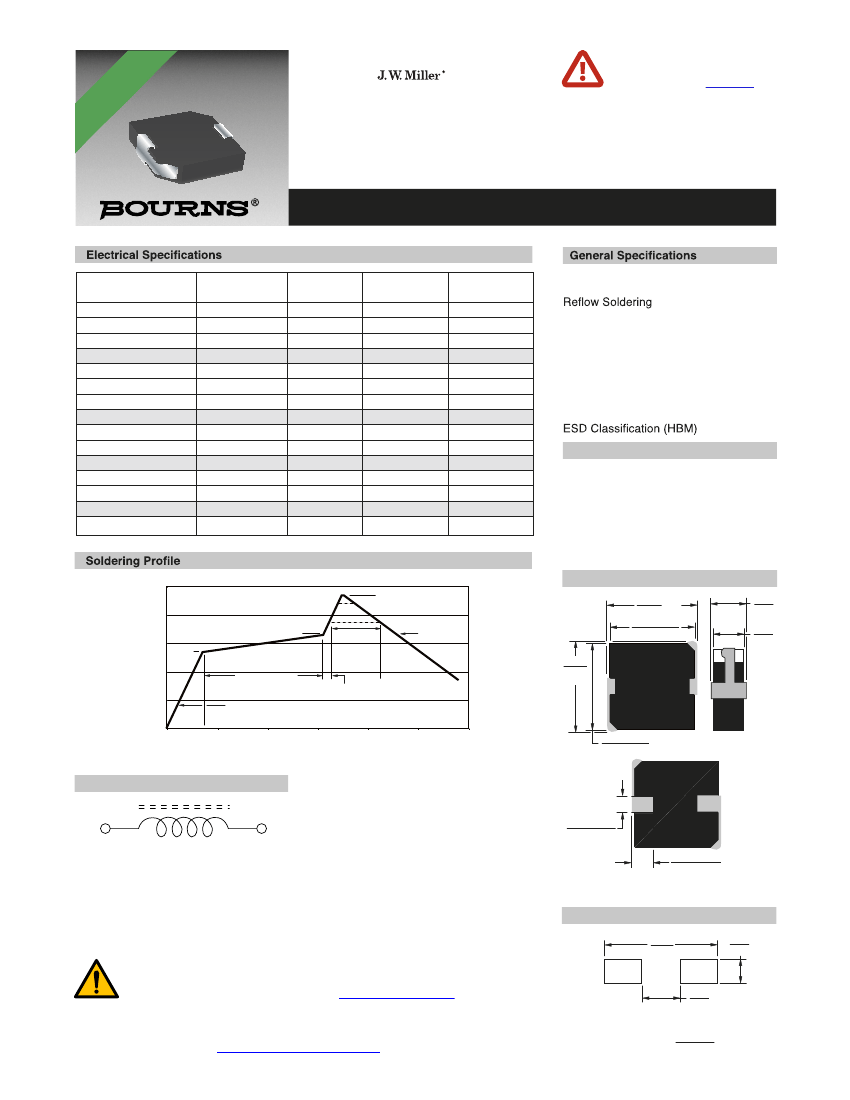

Inductance range: 0.22 µH to 10 µH
■
Current up to 45 A
■
RoHS compliant*
PM12645S, PM12651S, PM13560S, PM13656S, PM13666S Series -
Shielded Power Inductors
Bourns Part No.
PM12645S-1R2M-RC
PM12645S-1R8M-RC
PM12645S-2R7M-RC
PM12651S-R50M-RC
PM12651S-4R7M-RC
PM12651S-9R0M-RC
PM13560S-6R0M-RC
PM13560S-100M-RC
PM13656S-R22M-RC
PM13656S-R50M-RC
PM13666S-1R0M-RC
Inductance
L (μH) ±20 %
1.20
1.80
2.70
0.50
4.70
9.00
6.00
10.0
0.22
0.50
1.00
I rms
(A)
27
21
17
36
12
10
9.5
9
45
36
29
I sat
(A)
49
40
32
55
27
18
14
16
80
55
50
DCR
(mΩ) max.
3.3
4.7
7.3
1.5
15.0
22.5
10.0
25.5
1.0
1.5
2.5
Test Voltage ..................................0.25 V
Test Frequency ......................... 100 KHz
....230
˚C;
50 sec max.
Operating Temperature
................................-55 °C to +150 °C
(Temperature rise included)
Storage Temperature
................................-55 °C to +150 °C
Resistance to Soldering Heat
............................. +260 °C for 10 sec.
Moisture Sensitivity Level ..................... 1
................. N/A
Materials
Core ..................................................Iron
Wire ............................Enameled copper
Terminal ........................................Cu/Sn
Rated Current ....Ind. drops 20 % at I sat
Temperature Rise .... 40
˚C
at rated I rms
Packaging ....... 500 pcs. per 13-inch reel
Product Dimensions
275
225
175
150 °C
125
75
25
0
50
100
150
200
250
300
120 -150 seconds
10 seconds minimum
Ramp Up
4 °C/second maximum
<1> Maximum of 10 seconds
between +255 °C and +260 °C
260 °C peak
<1> 255 °C
220 °C
190°C
60 seconds
maximum
Ramp Down
5 °C/second
Temperature (°C)
13.9
MAX.
(0.547)
12.7 ± 0.3
(0.500 ± 0.012)
5.2
(.205)
MAX.
5.0
(.197)
MAX.
13.5
(0.531)
MAX.
100
1725
12.7 ± 0.3
(0.500 ± 0.012)
Time (Seconds)
Electrical Schematic
3.0 ± 0.5
(0.118 ± 0.020)
2.5 ± 0.5
(0.098 ± 0.020)
Recommended Layout
15.0
(0.591)
4.5
(.177)
WARNING Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice. Users should verify actual device performance in their specific
applications. The products described herein and this document are subject to specific legal disclaimers as set forth on
the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf
7.0
(.276)
DIMENSIONS:
MM
(INCHES)
Applications
■
Input/output of DC/DC converters
■
Power supplies for:
• Portable communications equipment
• Camcorders
• LCD TVs
PM12645S, PM12651S, PM13560S, PM13656S, PM13666S Series -
Shielded Power Inductors

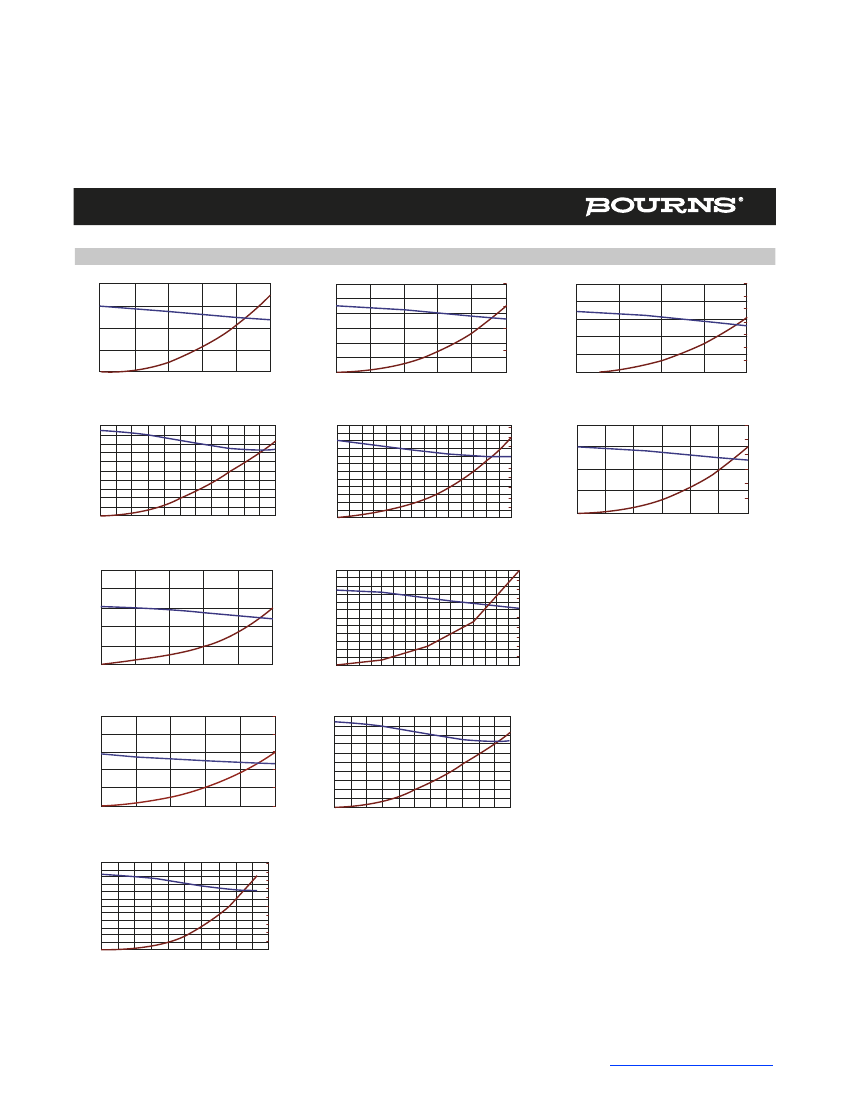

L vs. I Charts
1.6
PM12645S-1R2M-RC
160
2.4
PM12645S-1R8M-RC
160
4.0
PM12645S-2R7M-RC
140
120
100
Temperature Rise (°C)
Temperature Rise (°C)
Inductance (μH)
Inductance (μH)
1.2
0.8
0.4
0
0
10
20
30
40
120
80
40
0
50
120
1.5
1.2
0.8
40
0.4
0
0
8
16
24
32
0
40
80
Inductance (μH)
2.0
3.2
2.4
1.6
0.8
0
0
8
16
24
80
60
40
20
0
32
DC Current (A)
DC Current (A)
DC Current (A)
0.60
0.54
0.48
0.42
0.36
0.30
0.24
0.18
0.12
0.06
0
0
5
PM12651S-R50M-RC
10
15
20
25
30
40
45
50
55
110
99
88
77
66
55
44
33
22
11
0
60
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
4
PM12651S-4R7M-RC
Temperature Rise (°C)
Inductance (μH)
108
96
84
72
60
48
36
24
12
0
28
16
12
PM12651S-9R0M-RC
120
100
80
Temperature Rise (°C)
8
4
60
40
20
0
0
3
6
9
12
15
8
12
15
20
24
0
18
DC Current (A)
DC Current (A)
DC Current (A)
10
PM13560S-6R0M-RC
100
Inductance (μH)
6
4
2
0
0
2.8
5.6
8.4
11.2
60
40
20
0
14
Inductance (μH)
8
80
12.0
11.0
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0
0
2
PM13560S-100M-RC
Temperature Rise (°C)
4
6
8
10
12
14
30
20
10
0
16
DC Current (A)
DC Current (A)
Temperature Rise (°C)
0.4
PM13656S-R22M-RC
100
80
60
40
20
0
0.32
0.24
0.16
0.08
0
0
12
24
36
48
60
0.60
0.54
0.48
0.42
0.36
0.30
0.24
0.18
0.12
0.06
0
0
5
PM13656S-R50M-RC
10
15
20
25
30
40
45
50
55
110
99
88
77
66
55
44
33
22
11
0
60
DC Current (A)
DC Current (A)
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
5
PM13666S-1R0M-RC
10
15
20
25
35
40
45
50
110
99
88
77
66
55
44
33
22
11
0
60
DC Current (A)
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
Temperature Rise (°C)
Inductance (μH)
Temperature Rise (°C)
Inductance (μH)
Inductance (μH)
Temperature Rise (°C)
100
90
80
70
60
50
40
Temperature Rise (°C)
Inductance (μH)
Inductance (μH)
Temperature Rise (°C)
PM12645S, PM12651S, PM13560S, PM13656S, PM13666S Series -
Shielded Power Inductors

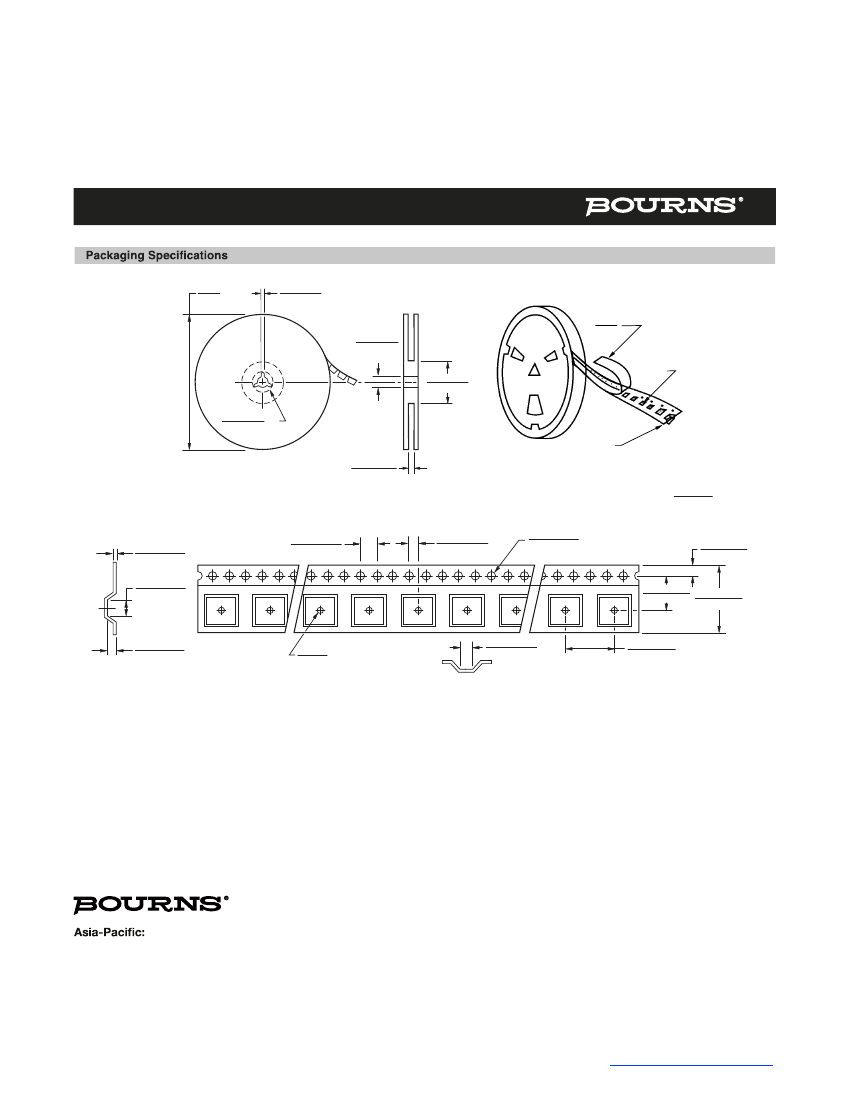

330.0
