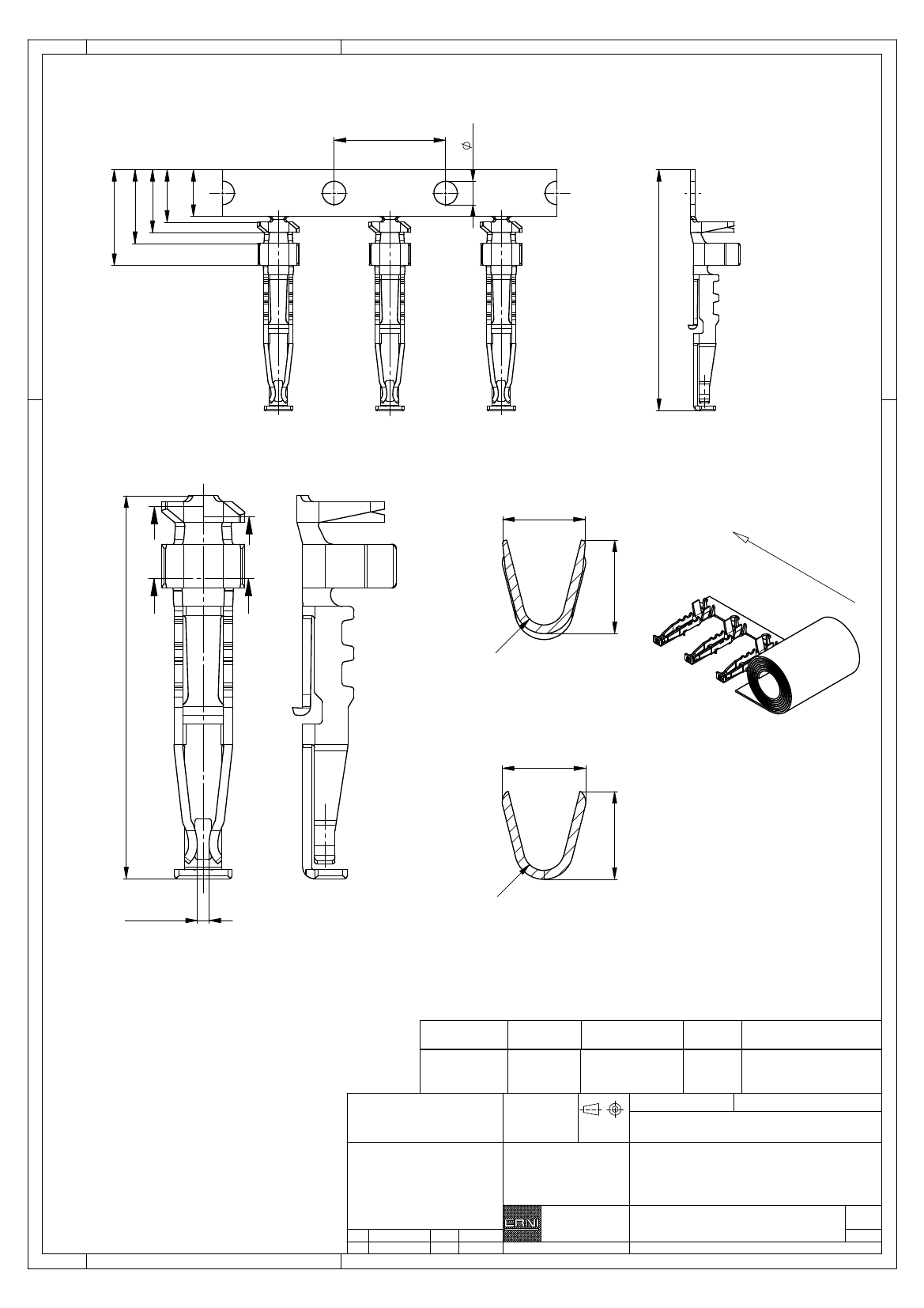

Federkontakte am Band
spring contact on carrier strip
7,62
1,6
6,55
5,05
4,3
3,6
3,2
Federkontakt vereinzelt
spring contact isolated
Schnitt A-A
cross section A-A
M 10:1
2,82
B
B
Drahtcrimp
3,2
16,48
wire crimp
A
A
R0
,7
Ab
s
Re pulri
el o
ch t
u
ff D
ire ng
ctio
n
13,08
Schnitt B-B
cross section B-B
M 10:1
2,85
Isolationscrimp
insulation crimp
3
0,4
-0,07
+0,03
AWG 16
Leiterquerschnitt
R0
,
7
500
Ø
13
0
137
Anforder-
ungsstufe
Menge
Spulendurchmesser
Bemerkung
wire cross section
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
quantity
Tolerances
reel diameter
Scale
All Dimensions
in mm
class
2:1
remark
Information:
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
g
Index
10.04.2013
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
Federkontakte 2,54 SRC-A BA1
Spring contact 2,54 SRC-A
www.ERNI.com
Class
102402070001
SRCBUT
K
A3
