VJ0402Q390GXXPW1BC

Description
Ceramic Capacitor, Multilayer, Ceramic, 25V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.000039uF, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT
CategoryPassive components    capacitor
File Size155KB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

VJ0402Q390GXXPW1BC Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 2% +Tol, 2% -Tol, C0G, 30ppm/Cel TC, 0.000039uF, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT

VJ0402Q390GXXPW1BC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1593574705
package instruction, 0402
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.000039 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high0.55 mm
JESD-609 codee3
length1 mm
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance2%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, PAPER, 13 INCH
polarityNON-POLARIZED
positive tolerance2%
Rated (DC) voltage (URdc)25 V
size code0402
surface mountYES
Temperature characteristic codeC0G
Temperature Coefficient30ppm/Cel ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width0.5 mm
Not for New Designs - Alternative Device: VJ....W1BC Ultra High Q/Low ESR
VJ....W1BC High Q Dielectric
www.vishay.com
Vishay

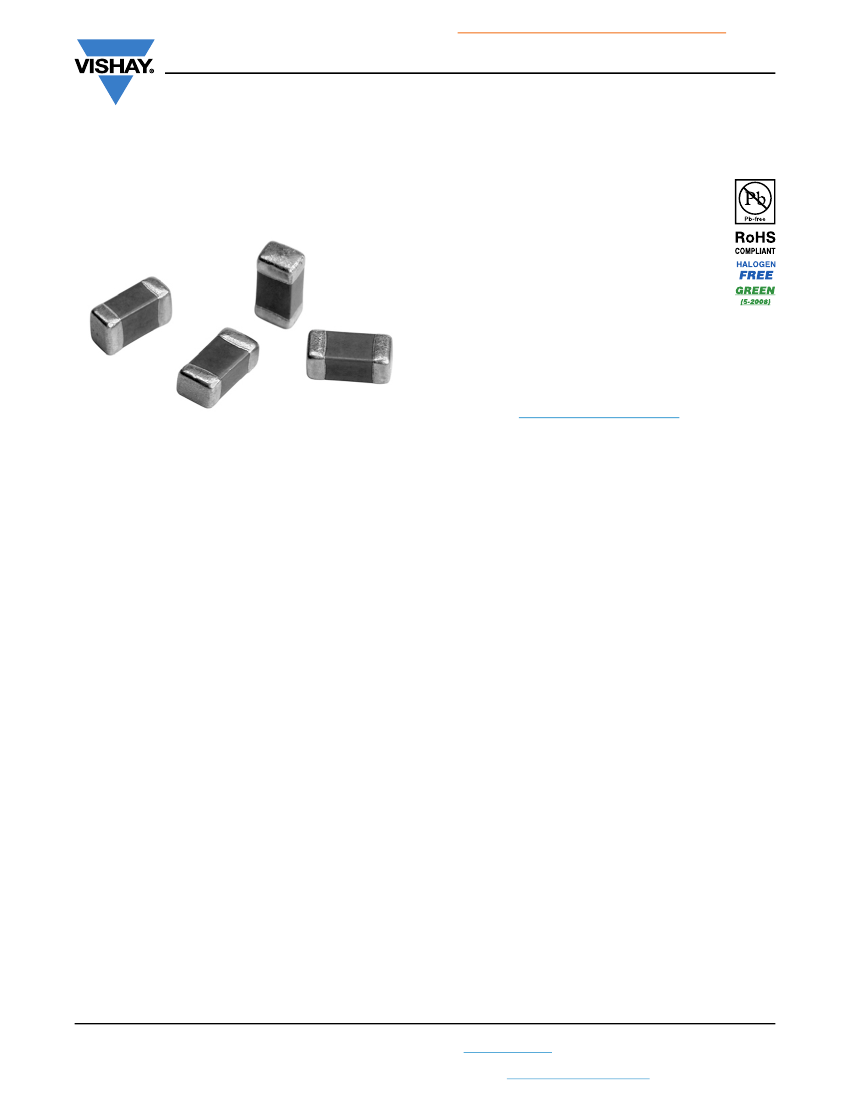

Surface Mount Multilayer Ceramic Chip Capacitors
for High Q Commodity Applications
FEATURES
• Ultra stable class 1 dielectric
• High Q and low ESR at high frequency
• Four standard sizes
• High capacitance per unit volume
• Supplied in tape on reel
• For high frequency applications
• Ni-barrier with 100 % tin terminations
• Dry sheet manufacturing technology
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Mobile telecommunication
• WLAN
• RF modules
• Tuner
ELECTRICAL SPECIFICATIONS
Note
• Electrical characteristics at 25 °C, 30 % to 70 % related humidity,
unless otherwise specified
Operating Temperature:
- 55 °C to + 125 °C
Capacitance Range:
0.5 pF to 3300 pF
Voltage Range:
16 V
DC
to 100 V
DC
Temperature Coefficient of Capacitance (TCC):
± 30 ppm/°C from - 55 °C to + 125 °C
Dissipation Factor:
Cap. < 30 pF: Q
400
+ 20 C
Cap.
30
pF: Q
1000
Test Conditions for Capacitance and DF Measurement
Cap.
1000 pF 1.0 V
RMS
± 0.2 V
RMS
, 1 MHz ± 10 %
Cap. > 1000 pF 1.0 V
RMS
± 0.2 V
RMS
, 1 kHz ± 10 %
Aging Rate:
0 % maximum per decade
Insulation Resistance (IR):
after 120 s at U
R
(DC)
10
G or R x C
500 x
F whichever is less
Dielectric Strength Test:
This is the maximum voltage the capacitors are tested for
1 s to 5 s period and the charge/discharge current does not
exceed 50 mA
100 V
DC
: DWV at 250 % of rated voltage
Revision: 25-May-2020
Document Number: 28534
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
