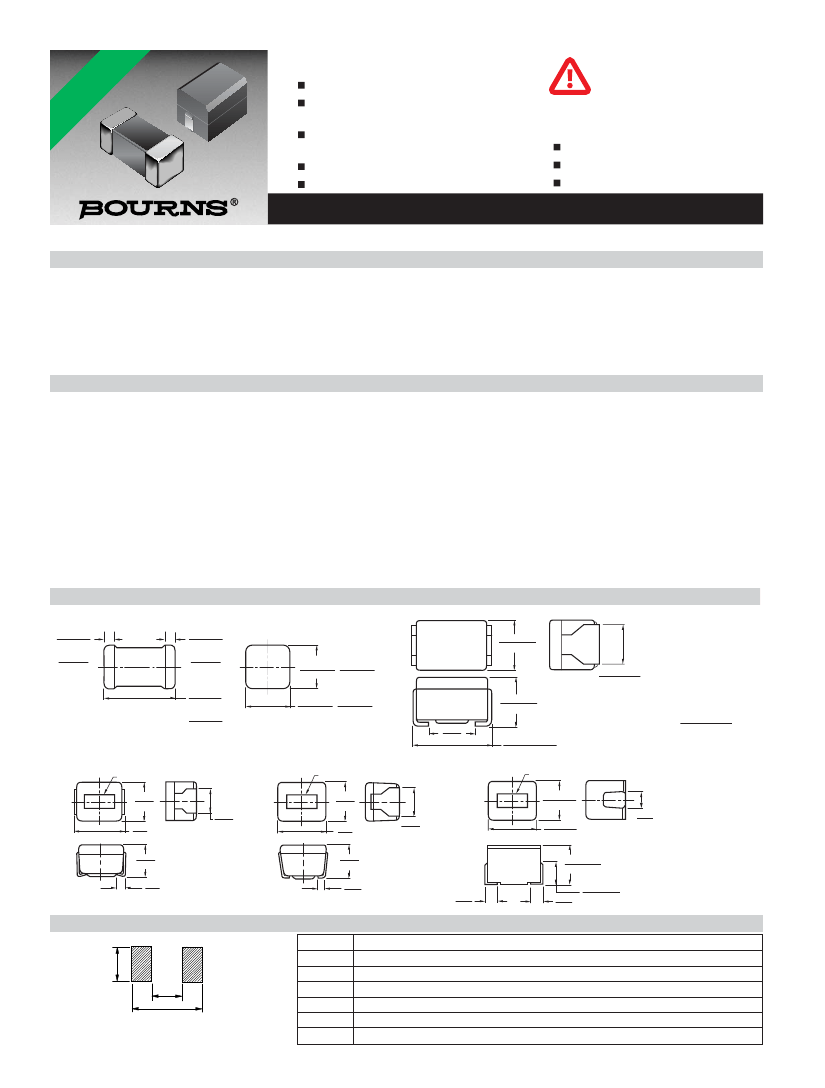

Features
High resistance to heat and humidity
Resistance to mechanical shock and
pressure
Accurate dimensions for automatic
surface mounting
Wide inductance range (1.0 nH to 1000
μH)
RoHS compliant*
*R
oH
S
22
Model CM20 & CM25 Series are
currently available but not
recommended for new designs.
0K
Applications
Mobile phones
Cellular phones
CTV, VCR, HIC, FDD
CM45, CM32, CM25, CM20, CM16, CM10 SMT Chip Inductors
Temperature Rise ......................................................................................................................................................................................................20 ˚C max.
Ambient Temperature .............................................................................................................................................................................................. 80 ˚C max.
Operating Temperature
CM10, CM16, CM20, CM25, CM32............................................................................................................................................................-40 °C to +100 °C
CM45 ...........................................................................................................................................................................................................-40 °C to +125 °C
Storage Temperature
CM10, CM16, CM20, CM25, CM32 ..........................................................................................................................................................-40 °C to +100 °C
CM45..........................................................................................................................................................................................................-40 °C to +125 °C
Resistance to Soldering Heat .......................................................................................................................................................................260 ˚C, 5 seconds
Core Material
CM10, CM16................................................................................................................................................................................................Alumina Ceramic
CM20 ............................................................................................................................................................................................Polymer 10 nH to 1000 nH
CM25 ..............................................................................................................................................................................................Polymer 10 nH to 180 nH
CM32 ..............................................................................................................................................................................................Polymer 47 nH to 180 nH
Ferrite Core
CM25..........................................................................................................................................................................................................220 nH to 100
μ
H
CM32 ........................................................................................................................................................................................................................220 nH +
CM45 ...................................................................................................................................................................................................................................All
Coil Type
CM10, CM16 ...................................................................................................................................................................................................Copper plating
CM20, CM25, CM32, CM45................................................................................................................................................................................Copper wire
Enclosure
CM10, CM16 ..................................................................................................................................................................................................................Resin
CM20, CM25, CM32, CM45.................................................................................................................................................................................Epoxy resin
Terminal
CM10, CM16, CM20, CM25, CM32, CM45 .......................................................................................................................................................................Sn
CM100505, CM160808
CM10:
0.2
±
0.1
(.008
±
.004)
CM16:
0.3
±
0.15
(.012
±
.006)
General Specifications
Materials
Product Dimensions
CM10:
0.2
±
0.1
(.008
±
.004)
CM16:
0.3
±
0.15
(.012
±
.006)
CM10:
1.0
±
0.1
(.040
±
.004)
CM16:
1.6
±
0.15
(.063
±
.006)
CM201212
1.27
±
0.30
(.050
±
.012)
CM10:
CM16:
0.5
±
0.1
0.80
±
0.15
(.020
±
.004) (.032
±
.006)
CM10:
CM16:
0.5
±
0.1
0.80
±
0.15
(.020
±
.004) (.032
±
.006)
1.20
(.047)
1.27
±
0.20
(.050
±
.008)
1.00
±
0.10
(. 039
±
.004)
DIMENSIONS ARE:
2.0 + 0.30 - 0.20
(.079 + .012 - .008)
MM
(INCHES)
CM252016
Marking
2.0
(.079)
2.5
(.10)
1.6
(.063)
0.4
(.016)
1.2
(.047)
CM322522
Marking
2.5
(.079)
3.2
(.126)
2.2
(.086)
0.6
(.024)
1.9
(.075)
CM453232
Marking
3.2 ± 0.2
(.125 ± .008)
4.5 ± 0.3
(.177 ± .012)
1.2
(.047)
3.2
±
0.2
(.125
±
.008)
1.7
±
0.2
(.066
±
.008)
1.0
(.039)
1.0
(.039)
Recommended Land Pattern Dimensions
c
a
b
*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.
Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
Model
CM10
CM16
CM20
CM25
CM32
CM45
0.5
0.8
1.0
1.4
1.6
2.4
to
to
to
to
to
to
a
0.6 (.019
1.0 (.032
1.2 (.039
1.5 (.055
2.0 (.063
2.6 (.094
to
to
to
to
to
to
.023)
.039)
.047)
.059)
.079)
.102)
1.5
2.0
3.0
3.5
4.0
5.5
to
to
to
to
to
to
b
1.7 (.059
2.6 (.079
3.8 (.118
4.0 (.138
4.6 (.157
6.0 (.217
to
to
to
to
to
to
.067)
.102)
.150)
.157)
.181)
.236)
0.5
0.7
0.9
1.2
1.9
2.0
to
to
to
to
to
to
c
0.6 (.019
0.9 (.028
1.3 (.028
1.6 (.047
2.4 (.075
3.0 (.079
to
to
to
to
to
to
.023)
.035)
.051)
.063)
.094)
.118)
CM45, CM32, CM25, CM20, CM16, CM10 SMT Chip Inductors

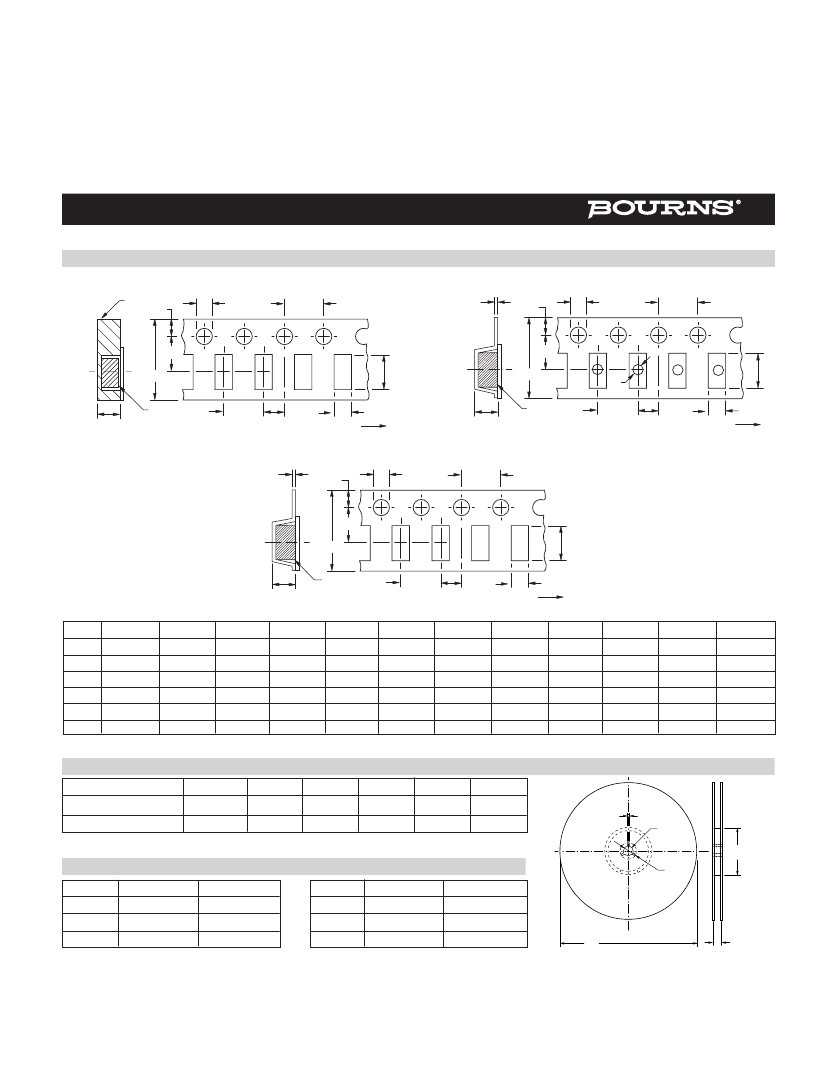

Packaging Specifications
CM10
Paper
Carrier E
Tape
ØDo
P3
CM16, CM20, CM25, CM32
t1
ØDo
E
P3
F
W
B
W
F
B
D1
DIA.
P1
P2
A
Tape running direction
t2
Chip
Component
P1
P2
A
Tape running direction
t2
Chip
Component
CM45
t1
ØDo
E
P3
F
W
B
t2
Chip
Component
P1
P2
A
Tape running direction
Model
CM10
CM16
CM20
CM25
CM32
CM45
A
B
W
F
E
P1
P2
P3
D0 Dia.
D1 Dia.
—
t1
—
t2
0.66 (.026)
1.20 (.047)
1.55 (.061)
1.85 (.073)
2.40 (.094)
3.50 (.138)
0.71 (.027) 1.21 (.047) 8.00 (.315) 3.50 (.138) 1.75 (.069) 4.00 (.157) 2.00 (.079) 4.00 (.157) 1.50 (.059)
1.00 (.039) 1.80 (.071) 8.00 (.315) 3.50 (.138) 1.75 (.069) 4.00 (.157) 2.00 (.079) 4.00 (.157) 1.50 (.059) 0.60 (.024) 0.27 (.011)
1.45 (.057) 2.25 (.089) 8.00 (.315) 3.50 (.138) 1.75 (.069) 4.00 (.157) 2.00 (.079) 4.00 (.157) 1.50 (.059) 1.00 (.039) 0.25 (.010)
2.40 (.094) 2.90 (.114) 8.00 (.315) 3.50 (.138) 1.75 (.069) 4.00 (.157) 2.00 (.079) 4.00 (.157) 1.50 (.059) 1.10 (.043) 0.25 (.010)
2.80 (.110) 3.60 (.142) 8.00 (.315) 3.50 (.138) 1.75 (.069) 4.00 (.157) 2.00 (.079) 4.00 (.157) 1.50 (.059)
3.60 (.142) 4.90 (.193) 12.00 (.472) 5.50 (.217) 1.75 (.069) 8.00 (.315) 2.00 (.079) 4.00 (.157) 1.50 (.059)
—
—
0.25 (.010)
0.30 (.012)
Reel Dimensions
Model
CM10 ~ CM32
CM45
A
178 (7.008)
178 (7.008)
B
60 min.
60 min.
C
13 (.512)
13 (.512)
D
21 (.827)
21 (.827)
E
2 (.079)
2 (.079)
W
9 (.354)
E
13 (.512)
C
B
Packaging
Model
CM10
CM16
CM20
Quantity
10000 pcs
3000 pcs
3000 pcs
Weight
150 g
90 g
90 g
Model
CM25
CM32
CM45
Quantity
2000 pcs
2000 pcs
500 pcs
Weight
100 g
190 g
100 g
A
D
W
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
