SPS-2380MWG / SPS-2380BMWG / SPS-2380AMWG
FEATURES
l
l
l
l
l
l
l
l
l
l
l
l
l
l
l
Support 9.95 Gbps to 11.1Gbps
Complaint with SFP+ MSA
Compliant to IEEE 802.3ae 10GBASE-ZR/ZW
Compliant with OC-192 LR-2
SFF-8472 Digital Diagnostic Function
Temperature-stabilized 1550 nm EML Transmitter
Distance up to 80 km at SM Fiber
AC/AC Coupling according to MSA
Single +3.3 V Power Supply
Low Power consumption
RoHS 6/6 Compliant
0 to 70
o
C Operating: SPS-2380MWG
-5 to 85
o
C Operating: SPS-2380BMWG
-40 to 85
o
C Operating: SPS-2380AMWG
Class 1 Laser International Safety Standard IEC-60825
Compliant
SPS-2380MWG
1
***********************************************************************************************************************************************************************
(RoHS Compliant)
80 km
/
1550 nm
/
10G Multirate
Digital Diagnostic
SFP+
LC SINGLE-MODE TRANSCEIVER
***********************************************************************************************************************************************************************
DESCRIPTION
The SPS-2380MWG series single mode transceiver is small
form factor pluggable module for bi-directional serial
optical data communications such as IEEE 802.3ae
10GBASE-ZR/ZW and OC-192 LR-2. It is with the SFP+
20-pin connector to allow hot plug capability. Digital
diagnostic functions are available via an I
2
C. This module is
designed for single mode fiber and operates at a nominal
wavelength of 1550 nm. The transmitter section uses a
temperature-stabilized 1550 nm electrical-modulated laser
(EML) and is a class 1 laser compliant according to
International Safety Standard IEC-60825. The receiver
section uses an integrated InGaAs avalanche photo detector
preamplifier mounted in an optical header and a limiting
post-amplifier IC.
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It
complies with IEC-60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the
specified temperature and voltage limits. The optical ports
of the module shall be terminated with an optical connector
or with a dust plug.
APPLICATIONS
l
l
l
l
l
l
10Gb/s SONET/SDH ITU-T G.959.1 P1L1-2D2
10Gb/s SONET/SDH ITU-T G.709
10 Gb/s OC-192 / STM-64 LR2
10GBASE-ZR/ZW
80 km 10G Fibre Channel
10G Ethernet with FEC
ORDER INFORMATION
P/No.
Bit Rate
(Gb/s)
10GBASE
Distance
(km)
Wavelength
(nm)
Package
Temp.
(
o
C)
RoHS
Compliant
Yes
Yes
Yes
SPS-2380MWG
9.95 to 11.1
80
1550 EML
SFP+ with DMI
0 to 70
Multirate*
SPS-2380BMWG
9.95 to 11.1
80
1550 EML
SFP+ with DMI
-5 to 85
Multirate*
SPS-2380AMWG
9.95 to 11.1
80
1550 EML
SFP+ with DMI
-40 to 85
Multirate*
*: multirate for SONET OC-192 LR2, 10GBASE-ER/EW, 10G Fibre Channel, ITU-T G.709, 10GBASE-ER/EW + FEC
Absolute Maximum Ratings
Parameter
Storage Temperature
Relative Humidity
Operating Case Temperature
Symbol
Tstg
RH
Topr
Min
-40
5
0
-5
-40
-0.5
Max
85
85
70
85
85
3.6
-4
Units
o
C
%
o
C
Notes
Non-condensing
SPS-2380MWG
SPS-2380BMWG
SPS-2380AMWG
Average power
Power Supply Voltage
Receiver Input Optical Power
Vcc
Mip
V
dBm
***********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: //
www.optoway.com.tw
12/1/2010 V2.0
Optoway
Recommended Operating Conditions
Parameter
Power Supply Voltage
Operating Case Temperature
Symbol
Vcc
Topr
Min
3.135
0
-5
-40
5
Typ
3.3
Max
3.465
70
85
85
%
500
650
11.1
SPS-2380MWG
Units / Notes
V
o
C / SPS-2380MWG
o
C / SPS-2380BMWG
o
C / SPS-2380AMWG
Non-condensing
mA / SPS-2380MWG
mA / SPS-2380A(B)MWG
Gb/s
2
***********************************************************************************************************************************************************************
Relative Humidity
Power Supply Current
Data Rate
RH
I
CC (TX+RX)
85
330
350
9.95 / 10.3
Transmitter Optical Specifications (0
o
C < Topr < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Average Launch Power
Output Center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Extinction Ratio
Relative Intensity Noise
Transmitter and Dispersion
Penalty
Average Launch Power of OFF
Transmitter
Symbol
Po,
Avg
λc
σ
λ
SMSR
ER
RIN
TDP
Min
0
1530
30
8.2
-130
3
-30
Typ
1550
Max
+4
1565
1
Units
dBm
nm
nm
dB
dB
dB/Hz
dB
dBm
Notes
1
-20 dB width
For SONET
1. Output power is power coupled into a 9/125
µm
single-mode fiber.
Receiver Optical Specifications (0
o
C < Topr < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Sensitivity in Average Power
Receiver Overload
LOS -- Deasserted
LOS -- Asserted
Wavelength of Operation
Symbol
Sen
P
MAX
LOS
D
LOS
A
λc
Min
-7
---
-35
1530
Typ
---
---
---
Max
-23
-27
---
1565
Units
dBm
dBm
dBm
dBm
nm
Notes
2
Transition: low to high
Transition: high to low
2. Measured with average power; BER < 10
-12
and PRBS 2
31
-1 @10.3125Gb/s.
Electrical Characteristics
Parameter
Symbol
Min
Typ
9.95 / 10.3
100
120
9.95 / 10.3
100
340
Max
11.1
820
11.1
850
Units
Gb/s
Ω
mVpp
Gb/s
Ω
mVpp
Notes
High-Speed Signal (CML) Interface Specification
Input Data Rate
Differential Input Impedance
Rin
Differential Data Input Amplitude
Output Data Rate
Differential Output Impedance
Rout
Differential Data Output
Amplitude
Low-Speed Signal (LVTTL) Interface Specification
Input High Voltage
Input Low Voltage
Output High Voltage
Output Low Voltage
Internally AC coupled
Internally AC coupled
2.0
GND
2.4
GND
Vcc+0.3
0.8
Vcc
0.5
V
V
V
V
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
12/1/2010 V2.0
Optoway
CONNECTION DIAGRAM
SPS-2380MWG
3
***********************************************************************************************************************************************************************
PIN Signal Name
1
2
V
EE
T
TX_Fault
Description
Transmitter Signal Ground
Transmitter Fault Indication. Logic
“1”
Output
= Laser Fault. Logic
“0”
Output = Normal
Operation
Logic
“1”
Input (or no connection) = Laser off,
Logic
“0”
= Laser on.
Modulation Definition 2
–
Two wires serial ID
Interface
Modulation Definition 1
–
Two wires serial ID
Interface
Modulation Definition 0
–
Ground in Module
RX Rate Select (LVTTL). This pin has an
internal 30k pulldown to ground. A signal on
this pin will not affect module performance.
Loss of Signal Out (OC).
TX Rate Select (LVTTL). This pin has an
internal 30k pulldown to ground. A signal on
this pin will not affect module performance.
Receiver Signal Ground
PIN Signal Name
11
12
V
EE
R
RD-
Description
Receiver Signal Ground
Inverse Receiver Data Out
3
4
5
6
7
TX_Disable
SDA
SDL
MOD-ABS
RS0
13
14
15
16
17
RD+
V
EE
R
V
CC
R
V
CC
T
V
EE
T
Receiver Data Out
Receiver Signal Ground
Receiver Power
–
3.3V±5%
Transmitter Power
–
3.3V±5%
Transmitter Signal Ground
8
9
RX_LOS
RS1
18
19
TD+
TD-
Transmitter Data In
Inverse Transmitter Data In
10
V
EE
R
20
V
EE
T
Transmitter Signal Ground
MODULE DEFINITION
Module Definition
4
PIN 4
SDA
PIN 5
SCL
PIN 6
MOD-ABS
Interpretation by Host
Serial module definition
protocol
Module Definition 4 specifies a serial definition protocol. For this definition, upon power up, SDA and SDL appear as no connector
(NC) and MOD-ABS is TTL LOW. When the host system detects this condition, it activates the serial protocol. The protocol uses the 2-wire
serial CMOS E
2
PROM protocol of the ATMEL AT24C01A/02/04 family of components.
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
12/1/2010 V2.0
Optoway

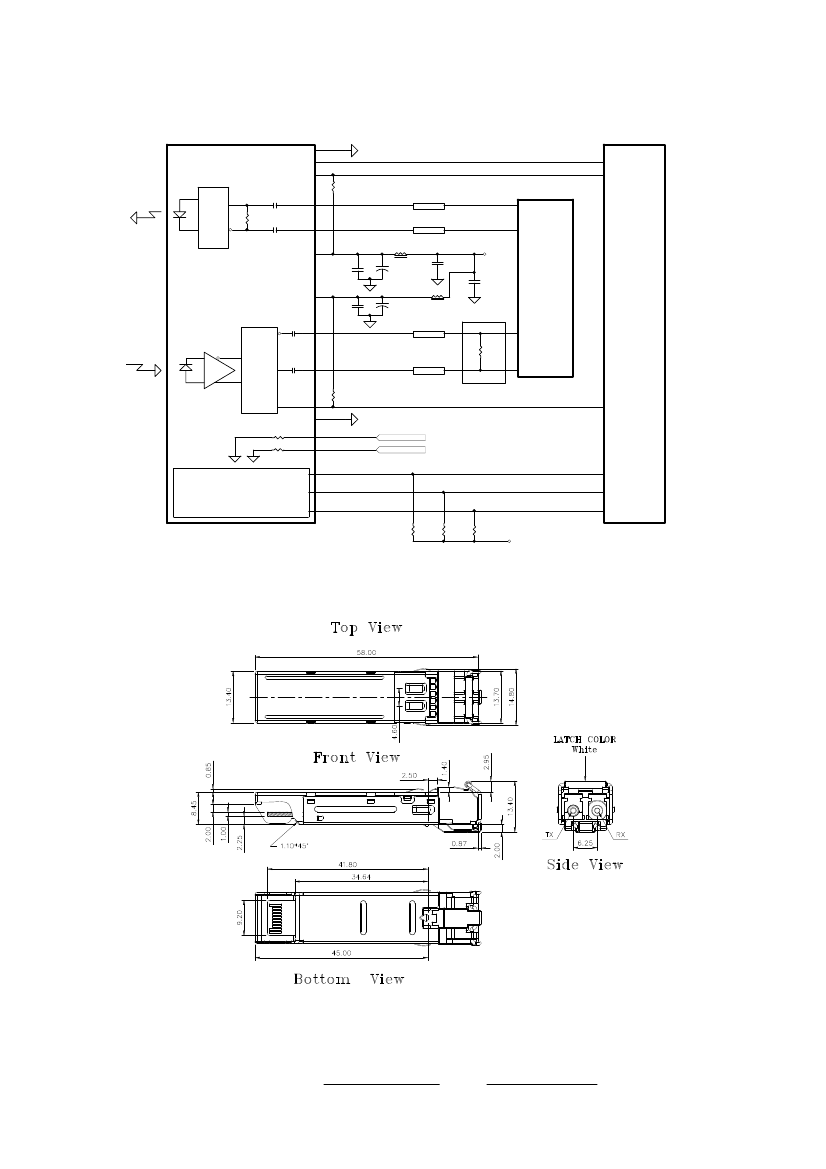

RECOMMENDED CIRCUIT SCHEMATIC
Vee T
Tx_DISABLE
Tx_FAULT
(1,17,20)
3
2
10 KΩ
TD +
18
Z=50Ω
TD -
19
Z=50Ω
Vcc T
16
0.1μF
4 .7
μH
Vcc 3.3V
22
μF
0.1μF
0.1μF
Vcc R
15
0.1μF
22
μF
4 .7
μH
TD -
TD +
SPS-2380MWG
4
***********************************************************************************************************************************************************************
Tx_DISABLE
Tx_FAULT
LD
Driver
100Ω
SerDes
IC
Protocol
IC
RD -
12
Z=50Ω
100Ω
RD -
POST
Amp
RD +
13
Z=50Ω
10 KΩ
RD +
depending on SERDES
LOSS OF SINGAL
LOS
Vee R
RS1
30KΩ
30KΩ
MOD_ABS
RS0
8
(10,11,14)
9
7
TX Rate Select
RX Rate Select
6
5
4
10 KΩ
10 KΩ
10 KΩ
Vcc 3.3V
MODULE DETECT
SCL
SDA
EEPROM
SCL
SDA
SFP+ module
PACKAGE DIAGRAM
Units in mm
Note:
Specifications subject to change without notice.
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
12/1/2010 V2.0
Optoway
REVISION HISTORY
Version
1.0
2.0
SPS-2380MWG
5
***********************************************************************************************************************************************************************
Subject
Initial datasheet
1) Add SPS-2380BMWG for extended temperature version
2) Add SPS-2380AMWG for industrial temperature version
Release Date
2010/7/1
2010/12/1
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
E-mail: sales@optoway.com.tw
Fax: 886-3-5979737
http: // www.optoway.com.tw
12/1/2010 V2.0
